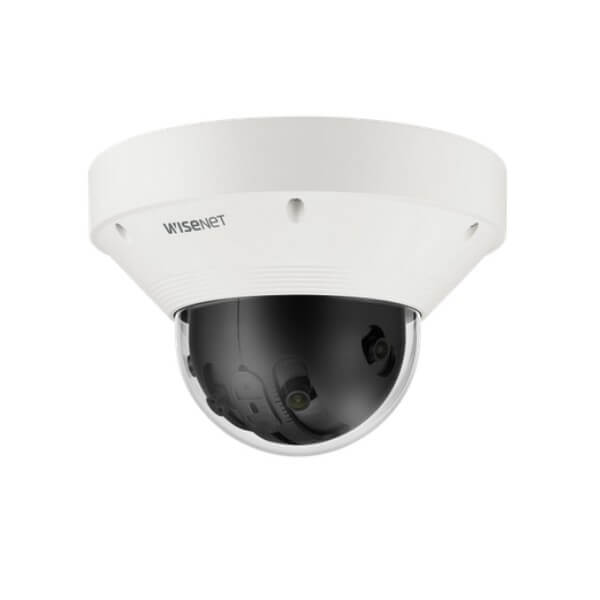

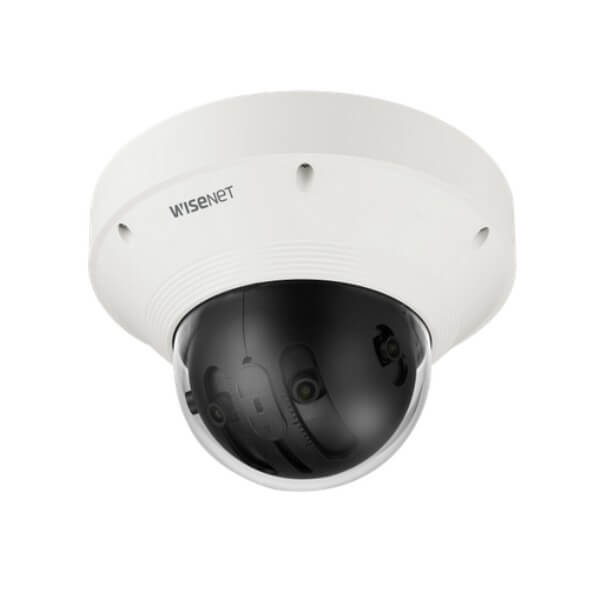

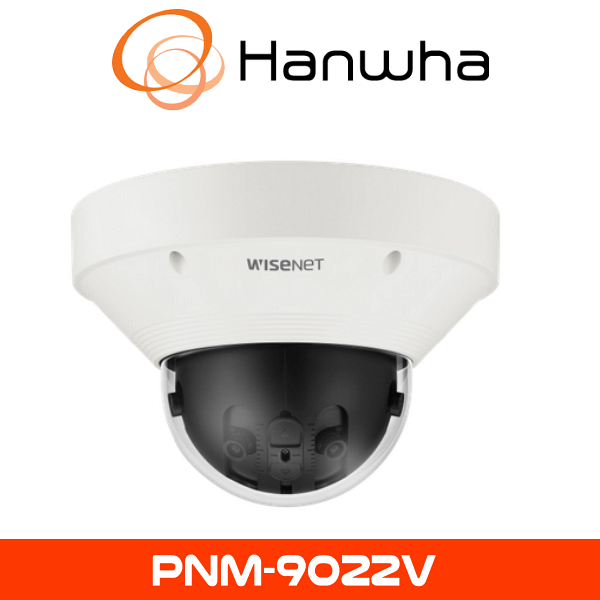

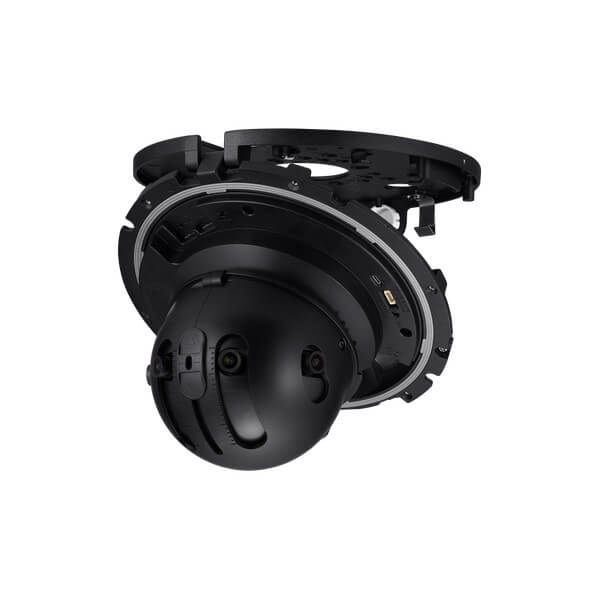

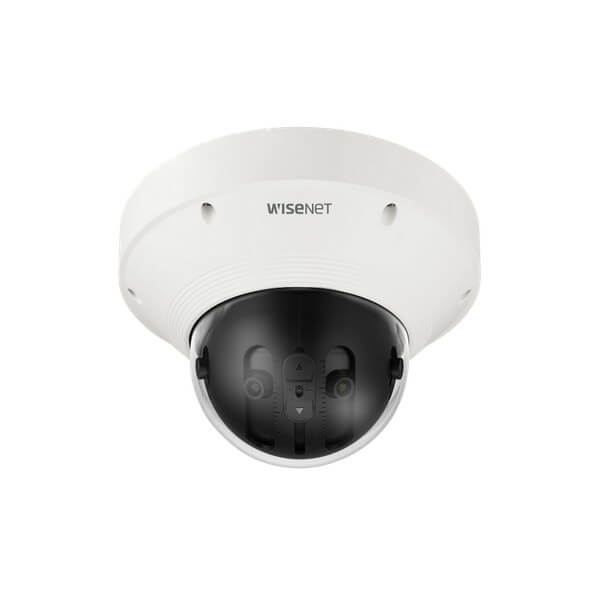

Hanwha PNM-9022V Multi-Directional CCTV Camera



Hanwha PNM-9022V Multi-Directional CCTV

Hanwha PNM-9022V Multi-Directional CCTV Camera delivers 8K ultra-HD video quality, AI-powered object classification, smart IR night vision, and rugged IK10/IP66-rated protection for 360° panoramic security. Perfect for urban monitoring, perimeter surveillance, and commercial security applications.

Description

Hanwha PNM-9022V Multi-Directional CCTV Camera

The Hanwha PNM-9022V Multi-Directional CCTV Camera, previously recognized as Samsung CCTV, is an advanced surveillance solution offering high-resolution monitoring with AI-driven analytics. Equipped with four 5MP sensors, this camera delivers 8K ultra-HD clarity while covering multiple directions simultaneously, making it an ideal choice for large-scale surveillance applications.

8K Ultra-HD Multi-Directional Imaging

The PNM-9022V is equipped with four 5MP sensors, delivering stunning 8K video quality while allowing users to monitor four independent views simultaneously. This eliminates the need for multiple cameras, reducing installation costs while improving situational awareness.

AI-Powered Deep Learning Analytics

Integrated deep learning AI analytics enable precise object classification, distinguishing between humans, vehicles, and other objects. It supports motion tracking, intrusion detection, loitering alerts, and virtual line crossing, enhancing real-time security monitoring.

Rugged Weatherproof and Vandal-Resistant Housing

The IP66 weatherproof and IK10 impact-resistant housing ensures continuous operation in harsh outdoor environments, making it ideal for securing high-traffic areas and critical infrastructure.

Smart IR Night Vision

Featuring adaptive infrared (IR) illumination, the PNM-9022V ensures clear video footage even in total darkness, offering enhanced low-light performance without overexposure.

Optimized Bandwidth and Storage Efficiency

With H.265 video compression, the PNM-9022V minimizes bandwidth consumption while maintaining high-quality footage, allowing for longer recording times and cost-effective data management.

Easy Installation and Seamless Integration

Supporting Power over Ethernet (PoE), this camera simplifies installation by reducing cabling requirements. ONVIF compliance ensures seamless integration with leading video management systems (VMS) for enhanced operational efficiency.

Key Specifications:

  • 8K Ultra HD (four 5MP sensors)
  • AI-powered analytics: Human/vehicle classification, motion tracking, loitering alerts, virtual line crossing, intrusion detection
  • Multi-Directional Monitoring: 360° panoramic coverage with independent views
  • Infrared Night Vision: Smart IR for low-light performance
  • Weatherproof Rating: IP66 for outdoor durability
  • Vandal-Resistant Rating: IK10 for high-impact protection
  • Video Compression: H.265/H.264/MJPEG
  • Power Source: Power over Ethernet (PoE) and 12V DC
  • Operating Temperature: -40°C to +55°C (-40°F to +131°F)
  • Network Connectivity: Ethernet 10/100/1000 Base-T
  • ONVIF Compliance: Compatible with major VMS platforms

Specifications:

Video
Imaging Device 1/2.8″ CMOS x 4
Resolution [209° Mode] 4608X1800, 4032X1576, 3456X1352, 2864X1124, 2304X900, 1728X676, 1152X452, 560X224, 720×576 [180° Mode] 4096X1800, 3584X1576, 3072X1352, 2560X1124, 2048X900, 1536X676, 1024X452, 512X224, 720X576
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color : 0.1 Lux (F1.6,1/30sec) B/W : 0.01 Lux (F1.6,1/30sec)
Video Out USB : Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 2.8mm fixed focal x 4
Max. Aperture Ratio F1.6
Angular Field of View H: 209°, V: 83.3°
Min. Object Distance 1.5m
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~355° / 0°~60° / –
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extreme WDR(120dB)
Digital Noise Reduction SSNRⅤ
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
Business Intelligence Heatmap
Alarm I/O Selectable 2 port
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers Alarm output
Audio In Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 1TB(512GB X 2)
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity Normal : -40°C~+55°(-40°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F) Less than 95% RH(Non-condensing)
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE+(IEEE802.3at, Class4), 12VDC
Power Consumption PoE+: Max 18W, Typical 10.4W 12VDC: Max 16W, Typical 9W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø253x165mm(9.96″x6.5″), 3200g
Compatible Conduit hole / Gangbox 3/4″
Hanging Mount (Dome) SBP-276HMW
