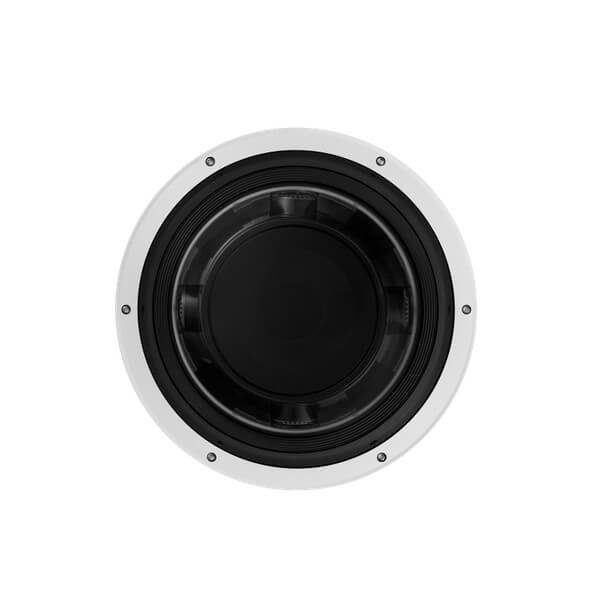

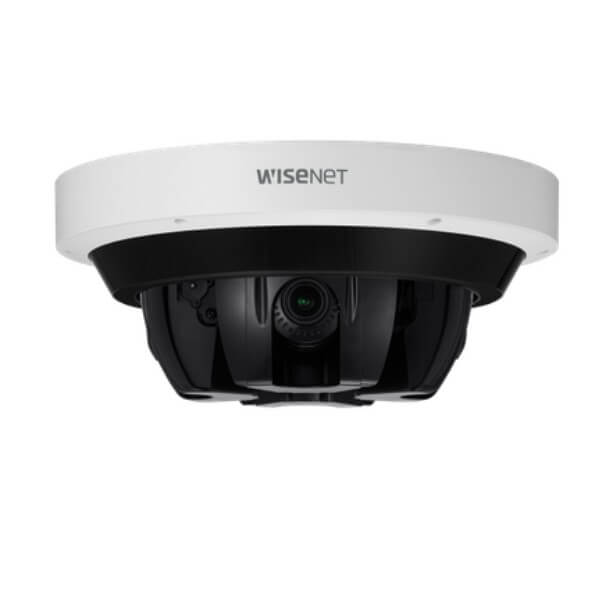

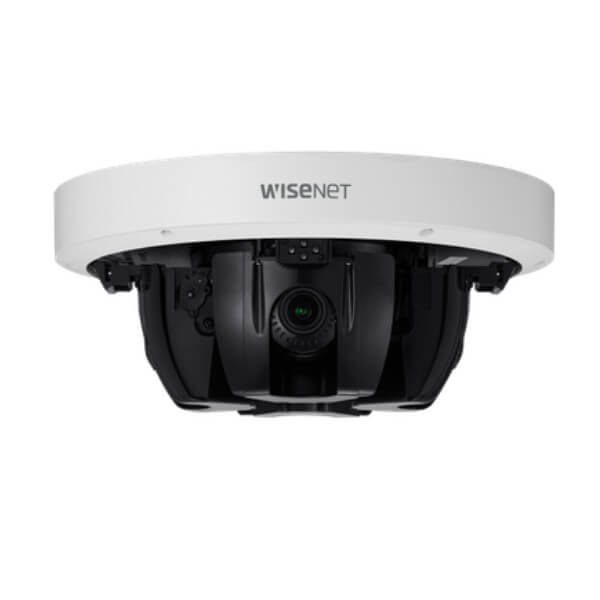

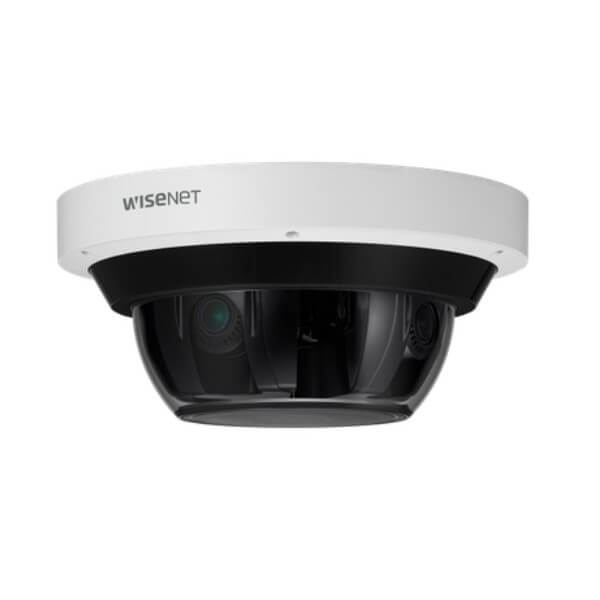

Hanwha PNM-9084QZ1 Multi-Directional CCTV Camera
The Hanwha PNM-9084QZ1 Multi-Directional CCTV Camera, previously recognized as Samsung CCTV, is a cutting-edge security solution combining multi-directional imaging with PTZ (Pan-Tilt-Zoom) capabilities. Designed for high-risk environments, this camera offers 4K ultra-HD resolution, AI-powered object detection, and smart infrared night vision, making it an excellent choice for critical infrastructure, perimeter security, and large-scale surveillance applications.
4K Ultra-HD Multi-Directional Imaging
The PNM-9084QZ1 is equipped with multiple 5MP sensors, delivering 4K ultra-HD resolution for comprehensive area coverage. The multi-directional lens system allows operators to monitor multiple angles simultaneously, reducing blind spots and improving overall security efficiency.
AI-Powered Deep Learning Analytics
The camera is integrated with deep learning AI analytics for real-time object classification and recognition. AI-based detection can accurately distinguish humans, vehicles, and other objects, reducing false alarms and enhancing motion tracking, intrusion detection, and loitering alerts.
PTZ Functionality for Dynamic Monitoring
Unlike traditional multi-sensor cameras, the PNM-9084QZ1 includes a PTZ function, allowing operators to pan, tilt, and zoom for detailed surveillance. This high-precision zooming capability enables users to focus on specific areas in real time, making it ideal for high-security zones and large facility monitoring.
Smart IR Night Vision
With adaptive infrared (IR) illumination, the camera ensures clear video footage in complete darkness, offering enhanced low-light performance without overexposure. The intelligent IR system adjusts automatically based on object distance and movement.
Rugged Weatherproof and Vandal-Resistant Housing
Built for harsh environments, the IP66-rated weatherproof and IK10 vandal-resistant housing guarantees durability in extreme weather conditions, including heavy rain, dust, and potential physical tampering.
Optimized Bandwidth and Storage Efficiency
With H.265 video compression, the PNM-9084QZ1 optimizes bandwidth consumption while maintaining high-resolution video quality, allowing for longer recording durations and cost-effective storage solutions.
Easy Installation and Seamless Integration
The camera supports Power over Ethernet (PoE) for simplified installation, reducing the need for extensive cabling. ONVIF compliance ensures seamless integration with major video management systems (VMS) for efficient security deployment.
Key Specifications:
- 4K Ultra HD Multi-Sensor System (Multiple 5MP Sensors)
- AI-powered analytics: Object classification, motion tracking, loitering alerts, virtual line crossing, intrusion detection
- PTZ Functionality: Dynamic zoom and tracking
- Infrared Night Vision: Smart IR for low-light performance
- Weatherproof Rating: IP66 for outdoor durability
- Vandal-Resistant Rating: IK10 for high-impact protection
- Video Compression: H.265/H.264/MJPEG
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/2.8″ CMOS x 4CH |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.04lux(F2.2, 1/30sec) BW: 0.004lux(F2.2, 1/30sec) |
| Video Out | None |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 3~6mm(2x) motorized varifocal |
| Max. Aperture Ratio | F2.2(Wide)-F3.1(Tele) |
| Angular Field of View | H: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | Fixed iris |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Remote adjustment (Max. 200cycles) 0~360˚ / 0~73˚ / 0~90˚ |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4point polygonal zones – Color: Grey, Green, Red, Blue, Black, White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output Handover |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | None |
| IR Illuminator (Optional) | None |
| Water Removal | None |
| Auto Tracking | None |
| Coaxial Protocol | None |
| Color Palettes | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 4slot 256GB(each CH) |
| Memory | 5GB RAM, 1280MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) / Less than 90% RH *Start up should be above at -35˚C |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | HPoE |
| Power Consumption | Max. 33W, Typical 20W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø251×116.5mm / 3Kg |
| Compatible Conduit hole / Gangbox | 3/4″ |
| Hanging mount(Dome) | SBP-276HMW |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
| Backbox | None |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft) |
| Observe (63PPM/ 19PPF) | Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft) |
| Recognize (125PPM/ 38PPF) | Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft) |
| Identify (250PPM/ 76PPF) | Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft) |
