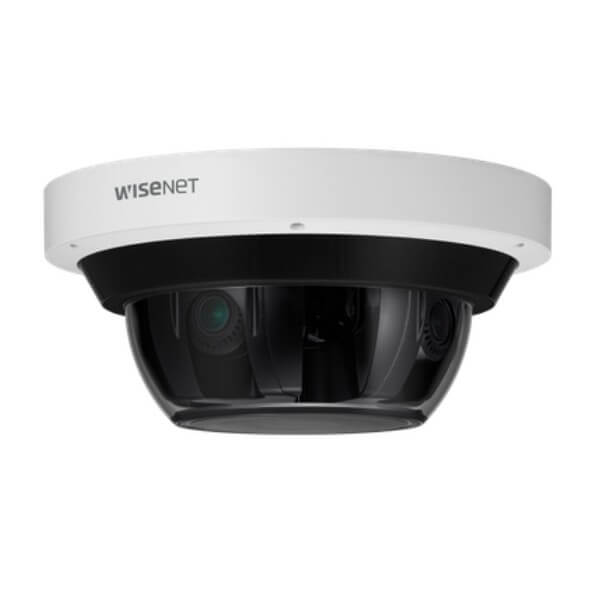

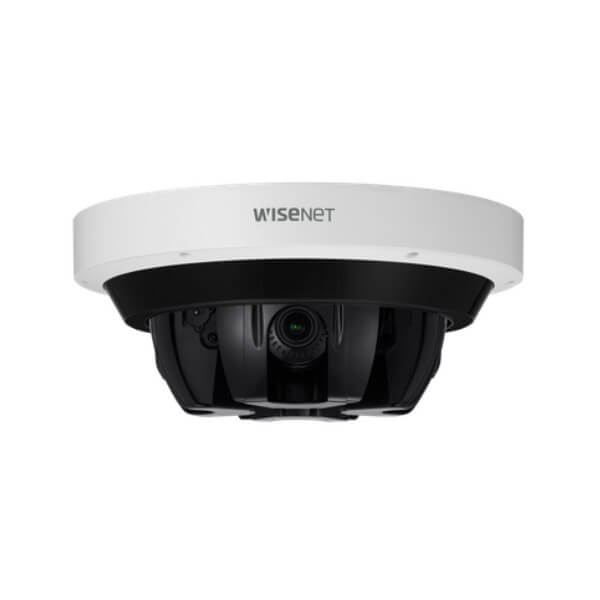

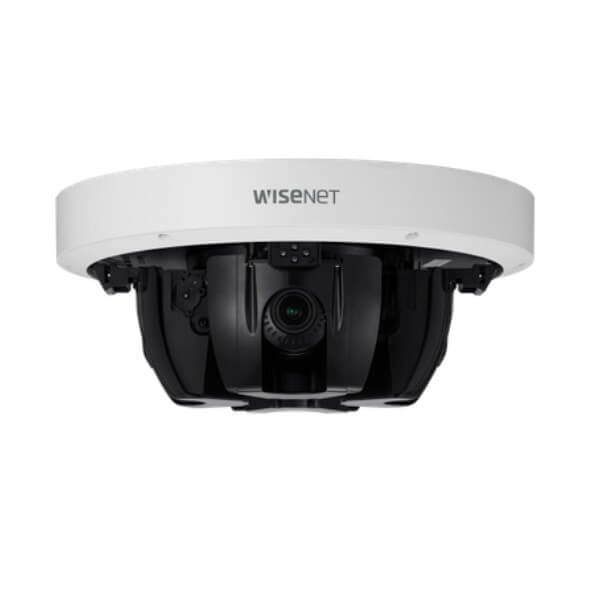

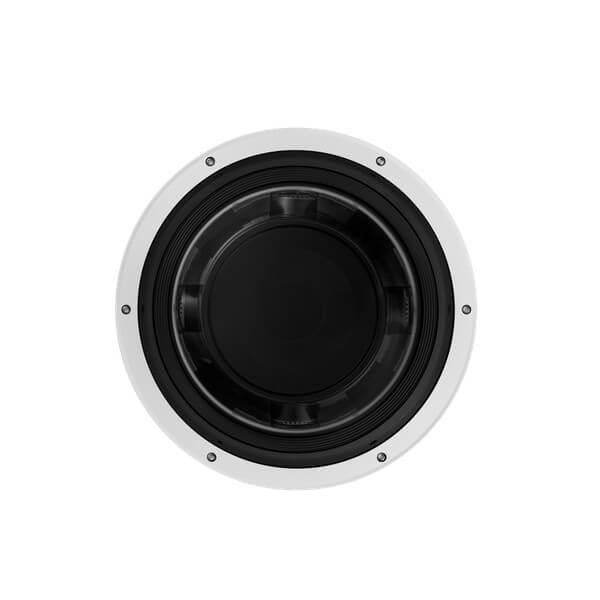

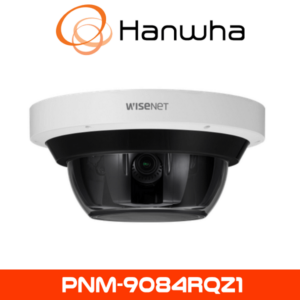

Hanwha PNM-9084RQZ1 Multi-Directional PTZ CCTV Camera
The Hanwha PNM-9084RQZ1 Multi-Directional PTZ CCTV Camera, previously recognized as Samsung CCTV, is a high-performance security solution combining multi-directional imaging and PTZ (Pan-Tilt-Zoom) functionality. This AI-powered camera is ideal for critical infrastructure, perimeter security, and large-scale surveillance, providing 4K ultra-HD clarity, smart tracking, and intelligent analytics.
4K Ultra-HD Multi-Directional Imaging
The PNM-9084RQZ1 is equipped with multiple 5MP sensors, delivering 4K ultra-HD resolution while allowing users to monitor multiple directions simultaneously. This multi-sensor technology eliminates blind spots, improving situational awareness and reducing installation costs.
AI-Powered Deep Learning Analytics
Integrated AI-driven analytics enhance object recognition, differentiating between humans, vehicles, and objects to reduce false alarms. Advanced features include motion tracking, intrusion detection, loitering alerts, and virtual line crossing, ensuring accurate security event detection.
PTZ Functionality for Precision Monitoring
Unlike traditional multi-sensor cameras, the PNM-9084RQZ1 features a powerful PTZ module, allowing operators to pan, tilt, and zoom for real-time tracking. This dynamic monitoring capability is essential for high-security zones, transportation hubs, and large public areas.
Smart IR Night Vision
Equipped with adaptive infrared (IR) illumination, the camera ensures clear image capture in low-light conditions. The intelligent IR system automatically adjusts brightness levels to prevent overexposure and maximize visibility in complete darkness.
Rugged Weatherproof and Vandal-Resistant Housing
Built to withstand extreme environments, the IP66-rated weatherproof and IK10 vandal-resistant housing ensures uninterrupted operation in harsh weather conditions and high-impact areas.
Optimized Bandwidth and Storage Management
With H.265 video compression, the PNM-9084RQZ1 reduces bandwidth usage while maintaining superior image quality, ensuring longer recording durations and efficient data storage.
Easy Installation and Seamless Integration
Supporting Power over Ethernet (PoE), the PNM-9084RQZ1 simplifies installation by reducing cabling needs. ONVIF compliance ensures seamless integration with major video management systems (VMS), making deployment flexible and efficient.
Key Specifications:
- 4K Ultra HD Multi-Sensor System (Multiple 5MP Sensors)
- AI-powered analytics: Object classification, motion tracking, loitering alerts, virtual line crossing, intrusion detection
- PTZ Functionality: Dynamic zoom and intelligent tracking
- Infrared Night Vision: Smart IR for optimal low-light performance
- Weatherproof Rating: IP66 for outdoor durability
- Vandal-Resistant Rating: IK10 for high-impact protection
- Video Compression: H.265/H.264/MJPEG
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/2.8″ CMOS x 4CH |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05lux(F1.6,30 IRE) BW: 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.9(Tele) |
| Angular Field of View | H: 109.0°(Wide)~33.2°(Tele), V: 57.4°(Wide)~18.7°(Tele), D: 132.0°(Wide)~38.0°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Remote adjustment (Max. 200cycles) 0~360˚ / 30~80˚ / 0~90˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey, Green, Red, Blue, Black, White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output Handover |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 4slot 256GB(each CH) |
| Memory | 5GB RAM, 1280MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | HPoE(IEEE802.3bt, Class6, Type3, Injector included), 12VDC |
| Power Consumption | PoE: Max. 42 W, Typical 30 W 12VDC: Max. 38 W, Typical 28.2 W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø315×145.9 mm(12.40″x5.74″) / 5.2 kg(11.5lb) |
| Compatible Conduit hole / Gangbox | 3/4″ |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 27.4m(89.9ft) / Tele: 128.8m(422.6ft) |
| Observe (63PPM/ 19PPF) | Wide: 62.5m(35.9)ft) / Tele: 51.5m(169.0ft) |
| Recognize (125PPM/ 38PPF) | Wide: 5.5m(18.0ft) / Tele: 25.8m(84.5ft) |
| Identify (250PPM/ 76PPF) | Wide: 2.7m(9.0)ft) / Tele: 12.9m(42.3ft) |
