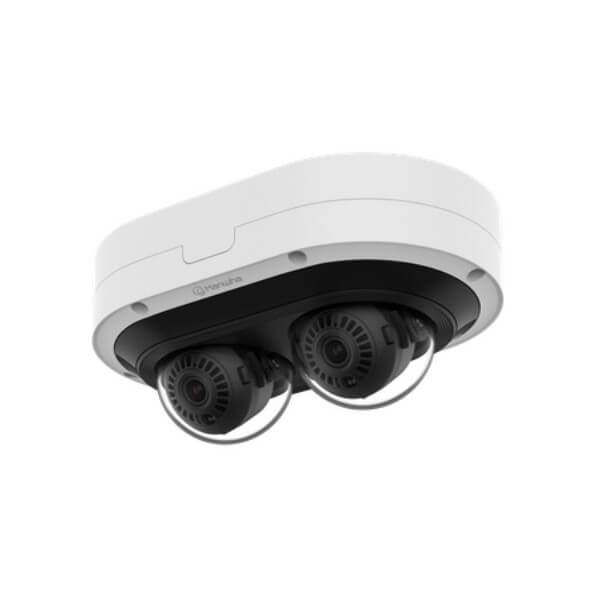

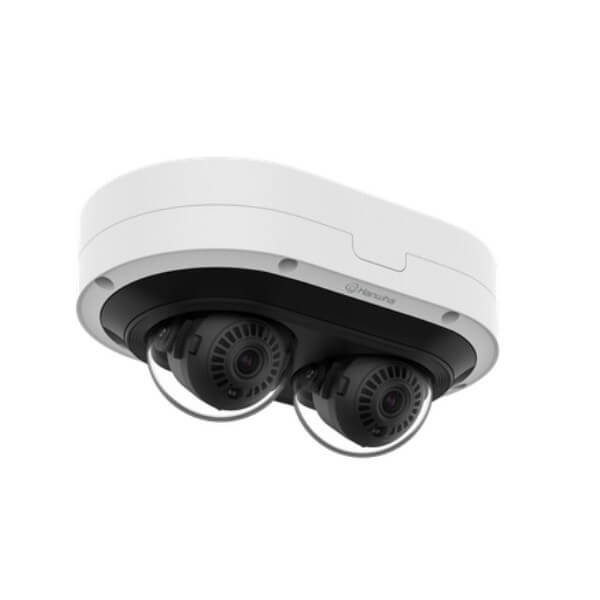

Hanwha PNM-C12083RVD Multi-Directional CCTV Camera
The Hanwha PNM-C12083RVD Multi-Directional CCTV Camera, previously recognized as Samsung CCTV, is an advanced security solution offering high-resolution monitoring with AI-driven analytics. Equipped with four 5MP sensors, this camera delivers 4K ultra-HD clarity while covering multiple directions simultaneously, making it an ideal choice for large-scale surveillance applications.
4K Ultra-HD Multi-Directional Imaging
The PNM-C12083RVD is equipped with four 5MP sensors, delivering 4K ultra-HD resolution while allowing users to monitor four independent views simultaneously. This eliminates the need for multiple cameras, reducing installation costs while improving situational awareness.
AI-Powered Deep Learning Analytics
Integrated deep learning AI analytics enable precise object classification, distinguishing between humans, vehicles, and other objects. It supports motion tracking, intrusion detection, loitering alerts, and virtual line crossing, enhancing real-time security monitoring.
Rugged Weatherproof and Vandal-Resistant Housing
The IP66 weatherproof and IK10 impact-resistant housing ensures continuous operation in harsh outdoor environments, making it ideal for securing high-traffic areas and critical infrastructure.
Smart IR Night Vision
Featuring adaptive infrared (IR) illumination, the PNM-C12083RVD ensures clear video footage even in total darkness, offering enhanced low-light performance without overexposure.
Optimized Bandwidth and Storage Management
With H.265 video compression, the PNM-C12083RVD minimizes bandwidth consumption while maintaining high-resolution video quality, allowing for longer recording durations and cost-effective surveillance.
Easy Installation and Seamless Integration
Supporting Power over Ethernet (PoE), this camera simplifies installation by reducing cabling requirements. The ONVIF compliance ensures seamless integration with leading video management systems (VMS) for flexible deployment options.
Key Specifications:
- 4K Ultra HD (four 5MP sensors)
- AI-powered analytics: Object classification, motion tracking, loitering alerts, virtual line crossing, intrusion detection
- Multi-Directional Monitoring: 360° panoramic coverage with independent views
- Infrared Night Vision: Smart IR for optimal low-light performance
- Weatherproof Rating: IP66 for outdoor durability
- Vandal-Resistant Rating: IK10 for high-impact protection
- Video Compression: H.265/H.264/MJPEG
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/2.8″ CMOS x 2CH |
| Resolution | 3328×1872, 3072×1728, 2592×1944, 2688×1520, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: 6MP Max.15fps MJPEG: Max.15fps |
| Min. Illumination | Color: 0.16lux(F1.67, 1/30sec, 30IRE) BW: 0.016lux(F1.67, 1/30sec, 30IRE), 0lux(IR LED on) |
| Video Out | USB: micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.54~6.69mm(1.9x) motorized varifocal |
| Max. Aperture Ratio | F1.67(Wide)~F2.64(Tele) |
| Angular Field of View | H: 96˚(Wide)~47˚(Tele) V: 51˚(Wide)~26˚(Tele) D: 113˚(Wide)~54˚(Tele) |
| Min. Object Distance | 1.5m(4.92ft) |
| Focus Control | Simple focus |
| Lens Type | Fixed IRIS |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0~355° / 0~78° / 0~180° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 6ea, Quadrangle zones – Color : Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) – Each channel separately |
| Analytics | Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support Bestshot Analytics events based on AI engine – Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events* – Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear) * Support Audio detection, Sound classification via optional SPM-4210 I/O box |
| Alarm I/O | * Support Alarm via optional SPM-4210 I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) – Alarm output via optional SPM-4210 I/O box |
| Audio In | * Audio in via optional SPM-4210 I/O box |
| Audio Out | * Audio out via optional SPM-4210 I/O box |
| IR Viewable Length | 15m(49ft) 25m(82ft) based on scene |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(10 users) / Multicast 5 profiles per channel |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security | TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian |
| Edge Storage | Micro SD/SDHC/SDXC 1slot Max. 512GB |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / Less than 95% RH(Non-condensing) |
| Certification | IP66/IP67, NEMA4X, IK10 |
| Input Voltage | PoE+(IEEE802.3at, Class4) |
| Power Consumption | PoE+: Max 21W, typical 16.5W |
| Mechanical | |
| Color / Material | White / Aluminum Hard-coated dome bubble |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | 215(W)x135(D)x93.2(H)mm(8.46″x5.31″x3.67″) / 1330g |
| Compatible Conduit hole / Gangbox | 1/2″ (M20) single, double, 4″ octagon, 4″ square |
| Hanging Mount (Dome) | SBP-215HMW |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/67, IEC/EN 62262 IK10 NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 59.9m(196.62ft) / Tele: 153.1m(502.22ft) |
| Observe (63PPM/ 19PPF) | Wide: 24.0m(78.65ft) / Tele: 61.2m(200.89ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.0m(39.32ft) / Tele: 30.6m(100.44ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.0m(19.66ft) / Tele: 15.3m(50.22ft) |
