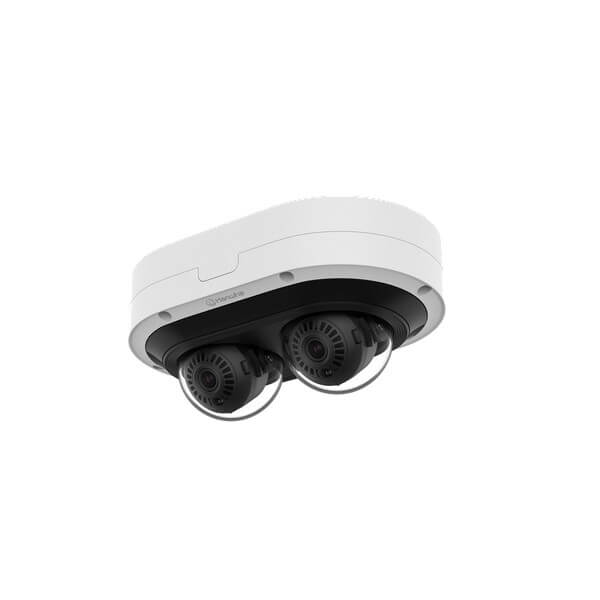

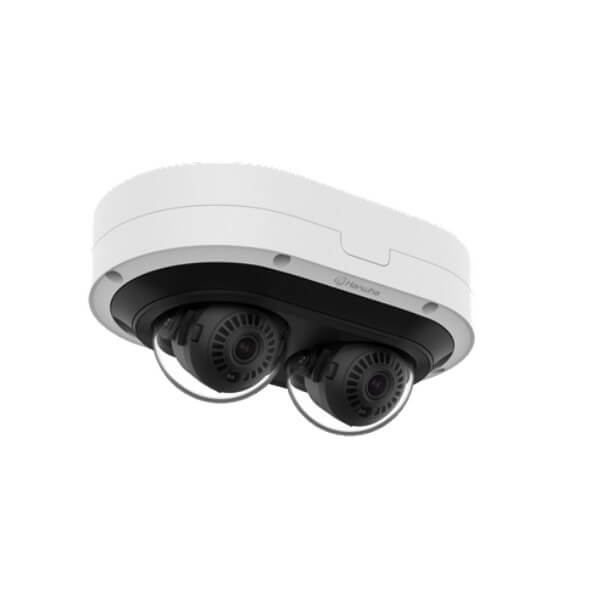

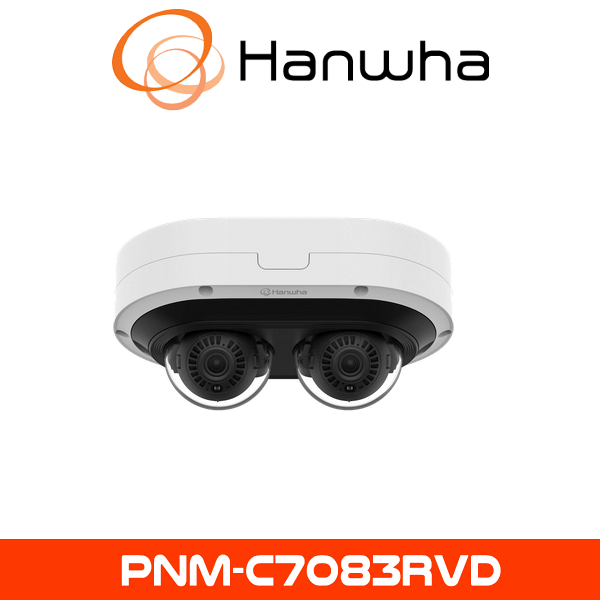

Hanwha PNM-C7083RVD Multi-Directional CCTV Camera



Hanwha PNM-C7083RVD Multi-Directional CCTV

Hanwha PNM-C7083RVD Multi-Directional CCTV Camera delivers 8MP ultra-HD resolution, AI-powered object detection, IR night vision, and a vandal-resistant housing for multi-directional panoramic surveillance. Ideal for critical infrastructure, perimeter security, and large commercial facilities.

Description

Hanwha PNM-C7083RVD Multi-Directional CCTV Camera

The Hanwha PNM-C7083RVD Multi-Directional CCTV Camera, previously recognized as Samsung CCTV, is an advanced surveillance solution designed for wide-area monitoring. Featuring an 8MP multi-sensor setup, deep learning AI analytics, and a rugged design, this camera ensures comprehensive security coverage for demanding environments.

8MP Multi-Sensor High-Resolution Imaging

Equipped with multiple 8MP sensors, the PNM-C7083RVD provides ultra-HD panoramic imaging for clear and precise monitoring. Its ability to capture multiple views simultaneously enhances situational awareness and eliminates blind spots.

AI-Driven Deep Learning Analytics

Integrated deep learning AI analytics enable the camera to intelligently distinguish between humans, vehicles, and objects, reducing false alarms and improving response accuracy. Advanced detection features include motion tracking, intrusion detection, loitering alerts, and virtual line crossing.

Multi-Directional Coverage

The multi-sensor capability of the PNM-C7083RVD allows for independent angle adjustments, making it ideal for locations requiring comprehensive surveillance such as intersections, parking lots, and commercial buildings.

Rugged Weatherproof and Vandal-Resistant Housing

Designed for outdoor and high-risk environments, the PNM-C7083RVD is rated IK10 for impact resistance and IP66 for weatherproof durability, ensuring 24/7 operation in extreme conditions.

Smart IR Night Vision

Equipped with adaptive IR illumination, the camera enhances visibility in low-light conditions, delivering clear and balanced imaging without overexposure.

Optimized Bandwidth and Storage Efficiency

Using H.265 video compression, the PNM-C7083RVD minimizes bandwidth consumption while maintaining ultra-HD video quality, making it ideal for cost-effective storage management and long-term video retention.

Easy Installation and Seamless Integration

With Power over Ethernet (PoE) support, installation is simplified by requiring only a single cable for power and data. ONVIF compliance ensures smooth integration with leading video management systems (VMS) for efficient deployment.

Key Specifications:

  • 8MP Multi-Sensor Ultra HD Resolution
  • AI-powered analytics: Object classification, motion tracking, loitering alerts, virtual line crossing, intrusion detection
  • Multi-Directional Monitoring: Multiple adjustable angles for full-area coverage
  • Infrared Night Vision: Smart IR for low-light and nighttime performance
  • Weatherproof Rating: IP66 for outdoor durability
  • Vandal-Resistant Rating: IK10 for impact protection
  • Video Compression: H.265/H.264/MJPEG
  • Power Source: Power over Ethernet (PoE) and 12V DC
  • Operating Temperature: -40°C to +55°C (-40°F to +131°F)
  • Network Connectivity: Ethernet 10/100/1000 Base-T
  • ONVIF Compliance: Compatible with major VMS platforms

Specifications:

Video
Imaging Device 1/2.8″ CMOS x 2CH
Resolution 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: 2MP Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.035lux(F2.2, 1/30sec, 30IRE) BW: 0.0035lux(F2.2, 1/30sec, 30IRE), 0lux(IR LED on)
Video Out USB: micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 3~6mm(2x) motorized varifocal per CH
Max. Aperture Ratio F2.2(Wide)~F3.1(Tele)
Angular Field of View H: 107˚(Wide)~56.3˚(Tele) V: 57˚(Wide)~31.5˚(Tele) D: 126˚(Wide)~64.3˚(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type Fixed IRIS
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0~355°/0~78°/0~180°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range extremeWDR(120dB)
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 6ea, Quadrangle zones – Color : Gray, Black, White
Gain Control Support
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror, Hallway view (90°/270°) – Each channel separately
Analytics Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support Bestshot Analytics events based on AI engine – Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events* – Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear) * Support Audio detection, Sound classification via optional SPM-4210 I/O box
Alarm I/O * Support Alarm via optional SPM-4210 I/O box
Alarm Triggers Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box
Alarm Events When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) – * Alarm output via optional SPM-4210 I/O box
Audio In * Audio in via optional SPM-4210 I/O box
Audio Out * Audio out via optional SPM-4210 I/O box
IR Viewable Length 25m(82ft)
Network
Ethernet Metal shielded RJ-45 (10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(10 users) / Multicast 5 profiles per channel
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery
Application Programming Interface ONVIF Profile S/T SUNAPI(HTTP API) Open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge Storage Micro SD/SDHC/SDXC 1slot Max. 512GB
Memory 2GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing)
Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
Certification IP66, IK10, NEMA4X
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption PoE+: Max 20W, typical 15.5W
Mechanical
Color / Material White / Aluminum Hard-coated dome bubble
RAL Code RAL9003
Product Dimensions / Weight 215(W)x135(D)x93.2(H)mm(8.46″x5.31″x3.67″) / 1330g
Compatible Conduit hole / Gangbox 3/4″ (M25) single, double, 4″ octagon, 4″ square
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 28.4m(93.22ft) / Tele: 71.8m(235.45ft)
Observe (63PPM/ 19PPF) Wide: 11.4m(37.29ft) / Tele: 28.7m(94.18ft)
Recognize (125PPM/ 38PPF) Wide: 5.7m(18.64ft) / Tele: 14.4m(47.09ft)
Identify (250PPM/ 76PPF) Wide: 2.8m(9.32ft) / Tele: 7.2m(23.55ft)
