Description

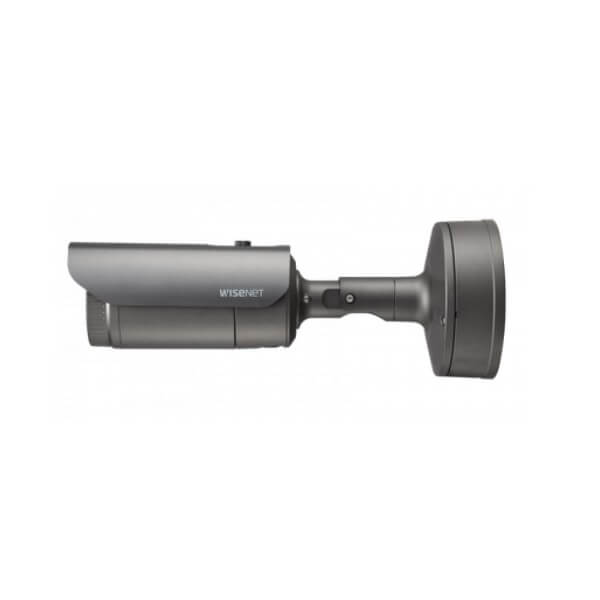

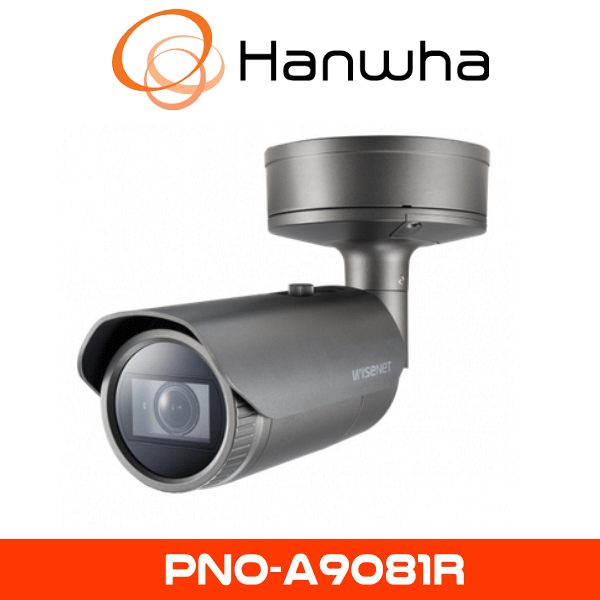

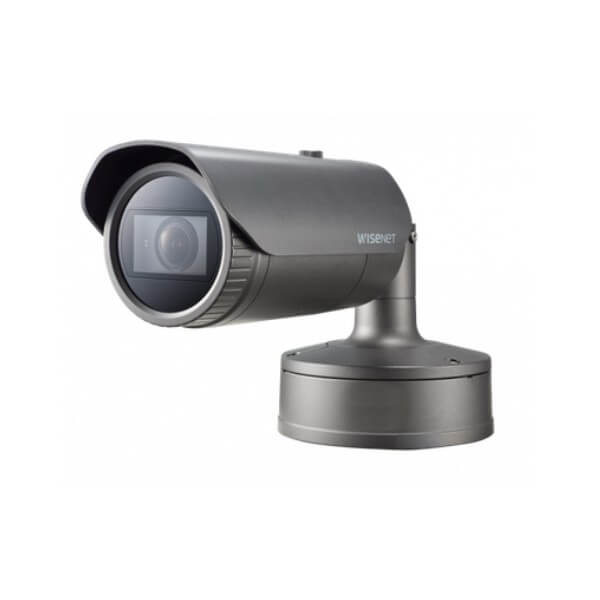

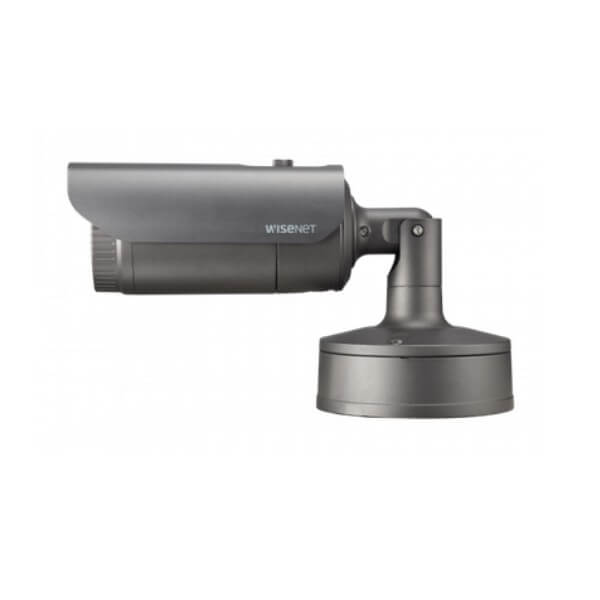

Hanwha PNO-A9081R AI CCTV Camera
The Hanwha PNO-A9081R AI CCTV Camera, previously recognized as Samsung CCTV, is a state-of-the-art outdoor security camera equipped with deep learning-based AI analytics. Featuring 4K ultra-high resolution, intelligent object detection, and advanced IR night vision, this camera is designed for mission-critical surveillance in demanding environments.
4K Ultra-High-Resolution Imaging
Equipped with an 8MP (4K) sensor, the PNO-A9081R delivers crystal-clear image quality, capturing fine details for forensic analysis. The high-resolution imaging allows operators to zoom in on important areas without losing clarity.
AI-Driven Deep Learning Analytics
The PNO-A9081R features AI-powered analytics capable of distinguishing between humans, vehicles, and objects. It enhances security monitoring by reducing false alarms and providing real-time classification of activities such as loitering, intrusion, and virtual line crossing.
Intelligent IR Night Vision
With built-in IR LEDs, the camera provides clear night vision up to 50 meters (164 feet), ensuring reliable monitoring in complete darkness or low-light conditions. The smart IR function prevents overexposure, enhancing visibility in varying lighting conditions.
Rugged Weatherproof and Vandal-Resistant Housing
The PNO-A9081R is built for outdoor use, featuring IP66 weatherproof and IK10 vandal-resistant ratings. It withstands harsh environmental conditions, including extreme temperatures, heavy rain, and dust, ensuring continuous operation.
Optimized Bandwidth and Storage Efficiency
Using H.265 video compression, the PNO-A9081R optimizes bandwidth and storage usage while maintaining high-quality video output. This efficiency allows for extended recording durations and cost-effective surveillance solutions.
Seamless Integration and Easy Installation
Supporting Power over Ethernet (PoE), the camera simplifies installation by requiring only a single cable for power and data transmission. The ONVIF compliance ensures seamless integration with leading video management systems (VMS), providing flexible deployment options.
Key Specifications:
- Resolution: 4K Ultra HD (3840 × 2160, 8MP)
- AI-powered analytics: Human/vehicle classification, motion detection, intrusion detection, virtual line crossing
- Infrared Night Vision: Up to 50m (164 feet) smart IR
- Video Compression: H.265/H.264/MJPEG
- Weatherproof Rating: IP66 for outdoor durability
- Vandal-Resistant Rating: IK10 for impact protection
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/1.8″ CMOS |
| Resolution | 3840×2160, 3072×1728, 2592×1944, 2688×1520, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024,1280×960, 1280×720, 1024×768, 800 x 600, 800 x 448, 720 x 576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.65(Tele) |
| Angular Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | P iris |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Digital Noise Reduction | WiseNR Ⅱ(using AI engine) SSNRⅤ |
| Digital Image Stabilization | Stabilization Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones – Color: Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color) Support BestShot per object Analytics events based on AI engine – Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection Analytics events – Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) Support WiseDetector for Adding custom objects *Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine |
| Alarm I/O | 2 configurable I/O ports, DC 12V output(Max. 50mA) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED (850nm) |
| IR Viewable Length | WiseIR 30m(98.42ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform – WiseAI application included(Analytic based on AI, Business intelligence) |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Techwin Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB |
| Memory | 4096MB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -50°C ~ +55°C(-58°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66/IP67, IK10, NEMA4X |
| Input Voltage | PoE+(IEEE802.3at), 12VDC |
| Power Consumption | PoE+: Max 20.0W, typical 17.00W 12VDC: Max 18.00W, typical 16.00W |
| Mechanical | |
| Color / Material | Dark gray / Aluminum, Hard-coated window |
| Product Dimensions / Weight | Ø91.0×368.6mm (3.58″ x 14.51″) (Without sunshield), Weight : 2.48Kg (5.47lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 62.2m(204.04ft) / Tele: 185.4m(608.31ft) |
| Observe (63PPM/ 19PPF) | Wide: 24.9m(81.62ft) / Tele: 74.2m(243.32ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.4m(40.81ft) / Tele: 37.1m(121.66ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.2m(20.40ft) / Tele: 18.5m(60.83ft) |
