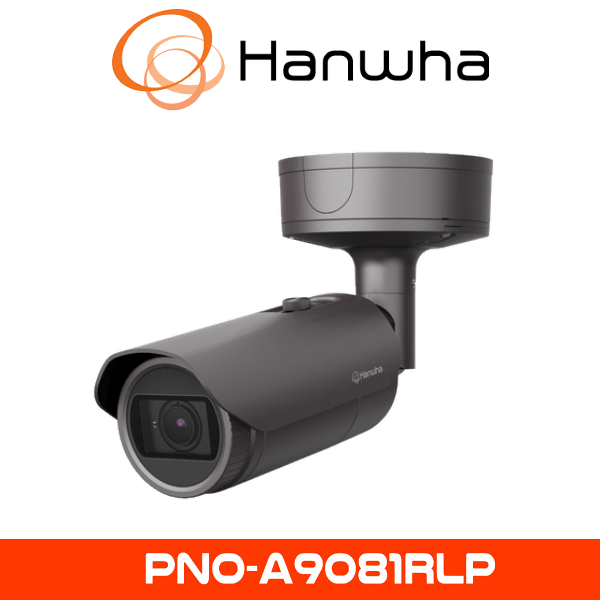

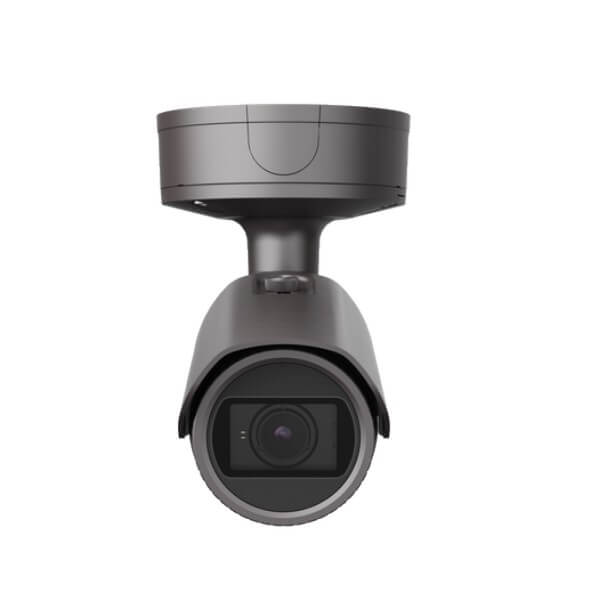

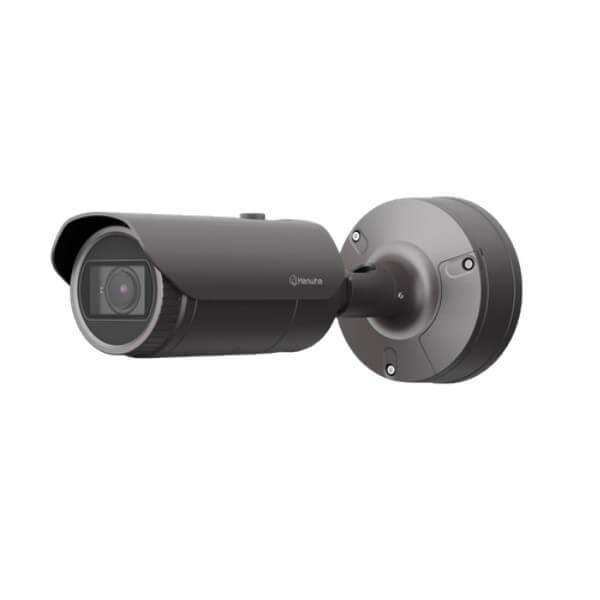

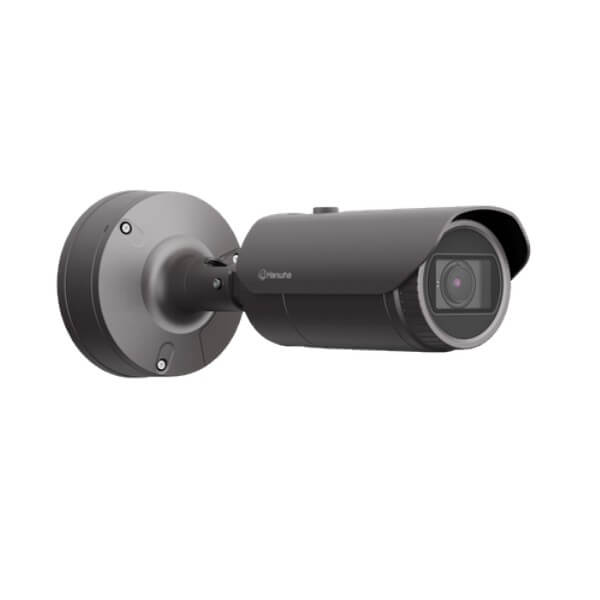

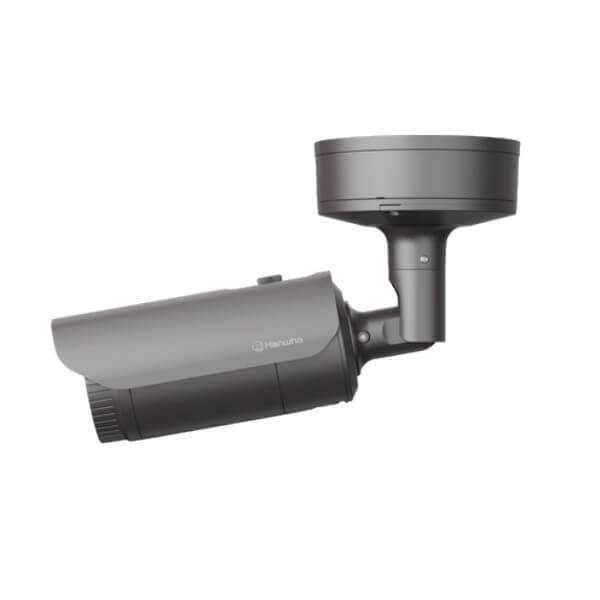

Hanwha PNO-A9081RLP AI CCTV Camera
The Hanwha PNO-A9081RLP AI CCTV Camera, previously recognized as Samsung CCTV, is a state-of-the-art outdoor security camera featuring License Plate Recognition (LPR), 4K ultra-HD resolution, and AI-driven analytics. Designed for high-risk environments, this camera provides intelligent object detection, advanced LPR technology, and long-range IR night vision, making it ideal for traffic monitoring, toll booths, and perimeter security applications.
4K Ultra-High-Resolution Imaging
Equipped with an 8MP (4K) sensor, the PNO-A9081RLP delivers exceptional image clarity, capturing intricate details for forensic investigations. The ultra-HD resolution ensures precise monitoring and enhances LPR accuracy.
AI-Driven License Plate Recognition (LPR)
The PNO-A9081RLP features built-in LPR technology, enabling real-time vehicle recognition, license plate capturing, and database integration. This makes it ideal for traffic enforcement, access control, and toll collection systems.
Advanced AI Analytics for Smart Surveillance
With integrated deep learning AI analytics, this camera accurately detects and classifies vehicles, pedestrians, and objects, minimizing false alarms. Security features include motion detection, intrusion detection, virtual line crossing, and object tracking.
Intelligent IR Night Vision
Featuring smart IR illumination, the camera ensures clear visibility in low-light conditions, providing up to 50 meters (164 feet) of night vision. Adaptive IR technology prevents overexposure, maintaining optimal visibility of license plates at night.
Rugged and Weatherproof Design
Built for harsh outdoor environments, the IP66 weatherproof and IK10 vandal-resistant housing ensures protection against extreme weather conditions, dust, and physical impacts, making it an ideal choice for 24/7 outdoor surveillance.
Optimized Bandwidth and Storage Efficiency
Utilizing H.265 video compression, the PNO-A9081RLP significantly reduces bandwidth usage and storage consumption, while maintaining high-definition video quality, allowing for extended recording durations.
Easy Installation and Seamless Integration
Supporting Power over Ethernet (PoE), the camera simplifies installation with a single cable for both power and data. ONVIF compliance ensures smooth integration with major video management systems (VMS), making deployment flexible and efficient.
Key Specifications:
- Resolution: 4K Ultra HD (3840 × 2160, 8MP)
- AI-powered LPR technology: Real-time vehicle recognition, database integration
- AI-powered analytics: Human/vehicle classification, motion detection, loitering alerts, virtual line crossing, intrusion detection
- Infrared Night Vision: Up to 50m (164 feet) with smart IR
- Weatherproof Rating: IP66 for outdoor durability
- Vandal-Resistant Rating: IK10 for high-impact protection
- Video Compression: H.265/H.264/MJPEG
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | ||
| Imaging Device | 1/1.8″ CMOS | |
| Resolution | 3840×2160, 3072×1728, 2592×1944, 2688×1520, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024,1280×960, 1280×720, 1024×768, 800 x 600, 800 x 448, 720 x 576, 720×480, 640×480, 640×360 |
|
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on) |
|
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal | |
| Max. Aperture Ratio | F1.6(Wide)~F2.65(Tele) | |
| Angular Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | P iris | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Stabilization Support(built-in gyro sensor) | |
| Motion Detection | 8ea, polygonal zones | |
| Privacy Masking | 6ea, rectangle zones – Color: Gray/Black/White |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Defocus/ Motion/ Tampering/ Audio/ Shock detection, Sound classification | |
| Alarm I/O | Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback |
|
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| IR Viewable Length | 30m(98.42ft) | |
| Network | ||
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) Secure boot |
|
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
|
| General | ||
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
|
| Edge Storage | Pre-installed with 32GB Micro SD to support 10,000 LPR images | |
| Memory | 4096MB RAM, 512MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C |
|
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH | |
| EPA(Effective Projected Area) | 0.031 m2 | |
| Certification | IP66/IP67, IK10, NEMA4X | |
| Input Voltage | PoE+(IEEE802.3at), 12VDC | |
| Power Consumption | PoE+: Max 20.0W, typical 17.00W 12VDC: Max 18.00W, typical 16.00W |
|
| Mechanical | ||
| Color / Material | Dark gray / Aluminum | |
| Product Dimensions / Weight | Ø91.0×368.6mm (3.58″ x 14.51″) (Without sunshield), Weight : 2.48Kg (5.47lb) | |
| Wisenet Road AI LPR/ANPR/MMCR | ||
| Solution | Community Traffic | Parking Application |
| Speed Description | Moderate Speed | Low speed |
| Lane Coverage | 1 lane (3.6m/12ft Wide) (with built in IR) | 1 lane (3.6m/12ft Wide) (with built in IR) |
| Speed limit | Up to 70kmh (45mph) (with built in IR) | Up to 40kmh (25mph) (with built in IR) |
| Min. Forward Distance | 12m (38ft) | 10m (33ft) |
| Max. Forward Distance | 12m (40ft) (with built in IR) | 13m (45ft) (with built in IR) |
| Max. Horizontal Angle | 25° | 30° |
| Max. Vertical Angle | 25° | 30° |
| Horizontal Offset | Up to 5m (18ft) | Up to 7m (24ft) |
| Camera Height | Up to 5m (18ft) | Up to 7m (24ft) |
| Vehicle Recognition | Make : 70+ Model : 600+ Color : 11 |
|
| Available Countries | Albania, Armenia, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Germany, Hungary, Ireland, Iceland, Italy, Lithuania, Luxembourg, Latvia, Montenegro, North Macedonia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovenia, Slovakia, Spain, Switzerland, Turkey, United Kingdom, United States of America, Canada, Russian Federation, Azerbaijan, Uzbekistan, Ukraine, Kyrgyzstan, Kazakhstan, Tajikistan, Georgia, Turkmenistan, Australia, New Zealand, Indonesia, Vietnam, Bahrain, Kuwait, Oman, Qatar, KSA (Kingdom of Saudi Arabia), UAE, South Africa, Hongkong/Taiwan (MMCR is not available) | |
