Description

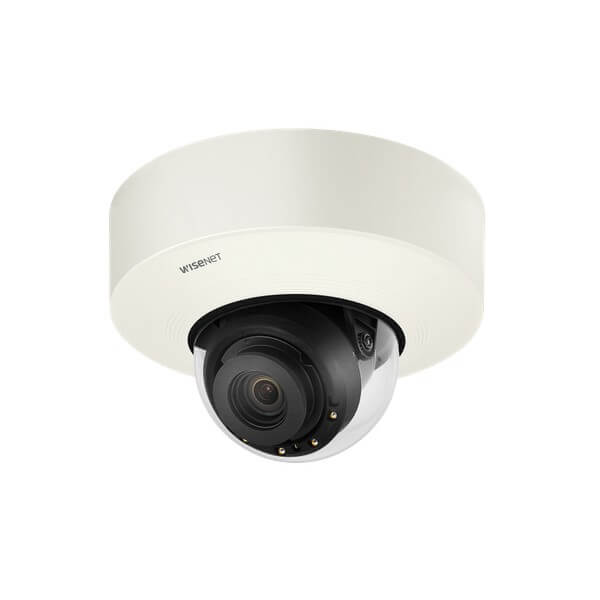

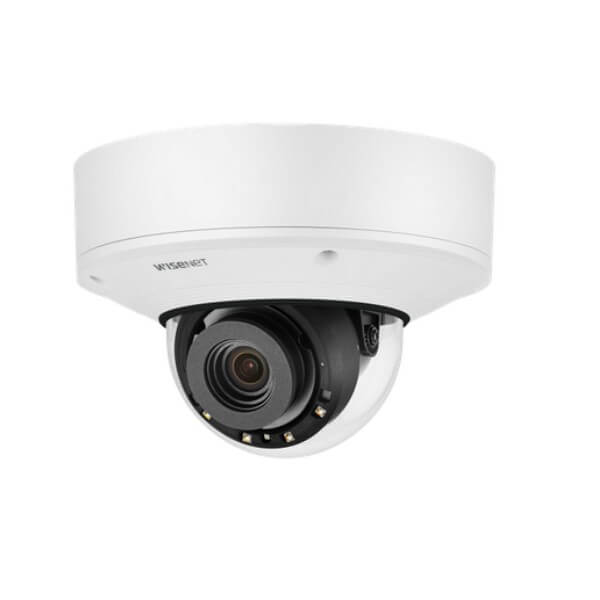

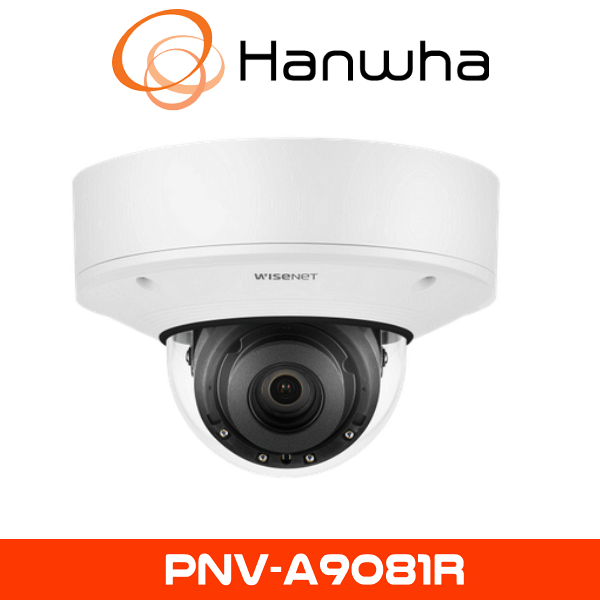

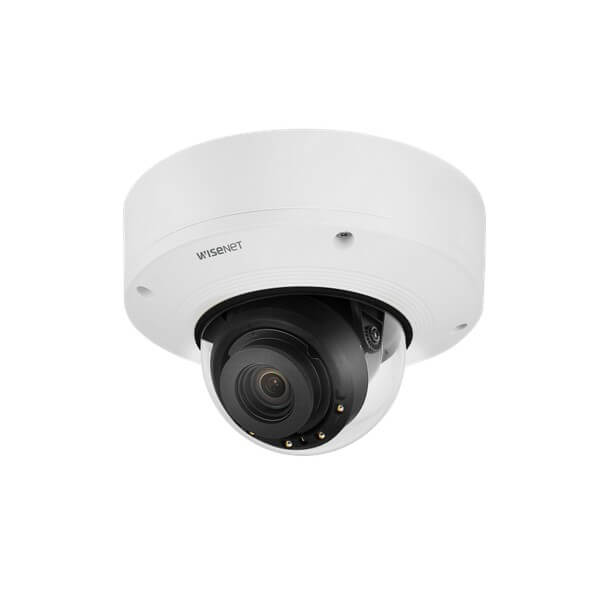

Hanwha PNV-A9081R AI CCTV Camera
The Hanwha PNV-A9081R AI CCTV Camera, previously recognized as Samsung CCTV, is a rugged 4K dome security camera designed for advanced surveillance in high-risk environments. With deep learning AI-driven analytics, smart IR night vision, and a weatherproof, impact-resistant housing, this camera ensures exceptional security monitoring in critical applications.
4K Ultra-High-Resolution Imaging
Equipped with an 8MP (4K) sensor, the PNV-A9081R captures highly detailed images, allowing security personnel to zoom in without losing clarity. The ultra-HD resolution makes it ideal for forensic investigations and high-precision monitoring.
AI-Powered Deep Learning Analytics
This camera is integrated with AI-based analytics, capable of distinguishing between humans, vehicles, and objects. It reduces false alarms and enhances security monitoring with intelligent event detection, such as loitering detection, virtual line crossing, and intrusion detection.
Smart IR Night Vision
With built-in IR LEDs, the PNV-A9081R provides clear night vision up to 50 meters (164 feet). The adaptive IR function ensures even illumination, preventing overexposure in close-range monitoring scenarios.
Rugged Vandal-Resistant and Weatherproof Housing
The PNV-A9081R features an IK10-rated impact-resistant dome and an IP66-rated weatherproof housing, making it highly durable against vandalism and extreme environmental conditions, including heavy rain, dust, and fluctuating temperatures.
Optimized Bandwidth and Storage Efficiency
Using H.265 video compression, the PNV-A9081R significantly reduces bandwidth usage and storage needs while maintaining ultra-HD video quality. This efficiency supports extended recording durations and cost-effective surveillance management.
Seamless Integration and Easy Installation
Supporting Power over Ethernet (PoE), the camera simplifies installation by requiring only a single cable for power and data transmission. ONVIF compliance ensures seamless integration with leading video management systems (VMS), providing flexibility in deployment.
Key Specifications:
- Resolution: 4K Ultra HD (3840 × 2160, 8MP)
- AI-powered analytics: Human/vehicle classification, motion detection, loitering alerts, virtual line crossing, intrusion detection
- Infrared Night Vision: Up to 50m (164 feet) with smart IR
- Video Compression: H.265/H.264/MJPEG
- Weatherproof Rating: IP66 for outdoor durability
- Vandal-Resistant Rating: IK10 for high-impact protection
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/1.8″ CMOS |
| Resolution | 3840×2160, 3072×1728, 2592×1944, 2688×1520, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024,1280×960, 1280×720, 1024×768, 800 x 600, 800 x 448, 720 x 576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.65(Tele) |
| Angular Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~360˚ / -45˚~85˚ / 0˚~355˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Digital Noise Reduction | WiseNR Ⅱ(using AI engine) SSNRⅤ |
| Digital Image Stabilization | Stabilization Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones – Color: GrayBlack/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color) Support BestShot per object Analytics events based on AI engine – Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection Analytics events – Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) Support WiseDetector for Adding custom objects *Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine |
| Alarm I/O | 2 configurable I/O ports, DC 12V output(Max. 50mA) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED (850nm) |
| IR Viewable Length | WiseIR 30m(98.42ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform – WiseAI application included(Analytic based on AI, Business intelligence) |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Techwin Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB |
| Memory | 4096MB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -50°C ~ +55°C(-58°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66/IP67/IP6K9K, IK10+, NEMA4X |
| Input Voltage | PoE+(IEEE802.3at), 12VDC |
| Power Consumption | PoE+: Max 20.00W, typical 17.00W 12VDC: Max 18.70W, typical 15.00W |
| Mechanical | |
| Color / Material | White / Aluminum, Hard-coated dome bubble |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø180x125mm(7.09×4.92″), Weight : 1.90Kg (4.19lb) |
| Compatible Conduit hole / Gangbox | 3/4″(M25) Single, Double, 4″Octagon, Square |
| Hanging Mount (Dome) | SBP-187HMW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 62.2m(204.04ft) / Tele: 185.4m(608.31ft) |
| Observe (63PPM/ 19PPF) | Wide: 24.9m(81.62ft) / Tele: 74.2m(243.32ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.4m(40.81ft) / Tele: 37.1m(121.66ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.2m(20.40ft) / Tele: 18.5m(60.83ft) |
