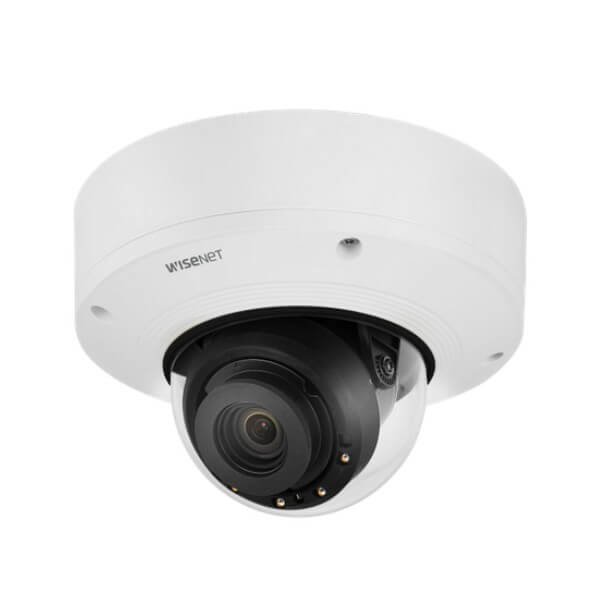

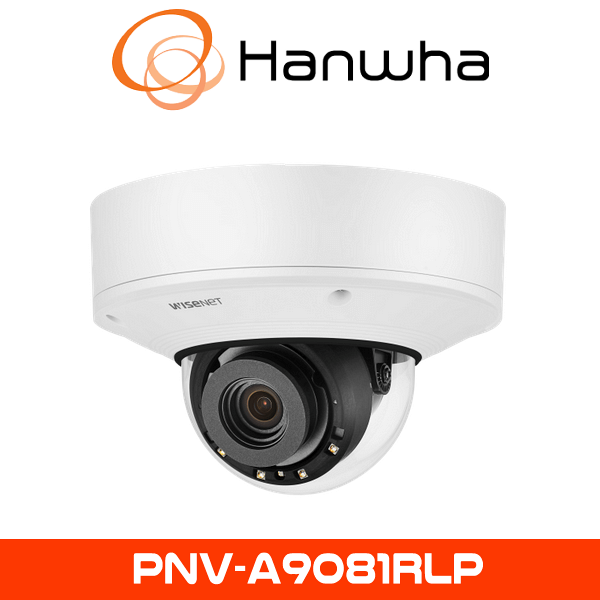

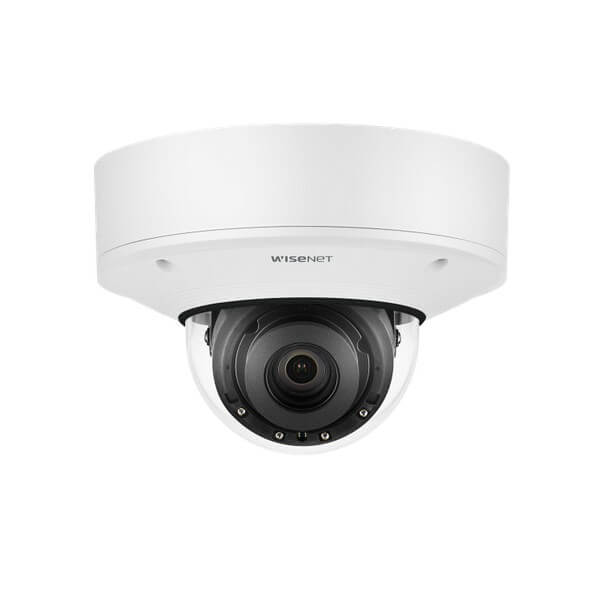

Hanwha PNV-A9081RLP AI CCTV Camera
The Hanwha PNV-A9081RLP AI CCTV Camera, previously recognized as Samsung CCTV, is a high-performance 4K rugged dome camera designed for intelligent traffic monitoring and license plate recognition (LPR). With deep learning AI-powered analytics, adaptive IR night vision, and a vandal-resistant housing, this camera is ideal for parking lots, toll booths, highways, and gated communities.
4K Ultra-High-Resolution Imaging
Equipped with an 8MP (4K) sensor, the PNV-A9081RLP delivers crystal-clear imaging, enabling detailed license plate capture and high-quality video footage for forensic investigations and security monitoring.
AI-Driven Deep Learning Analytics
Integrated AI-powered analytics enhance security monitoring by distinguishing between humans, vehicles, and objects. Advanced analytics include motion detection, intrusion alerts, virtual line crossing, loitering detection, and vehicle classification.
Advanced License Plate Recognition (LPR)
The built-in LPR technology enables automatic vehicle identification and tracking, ensuring accurate license plate capture even in challenging conditions, including low-light, fast-moving vehicles, and varying weather conditions.
Smart IR Night Vision
With adaptive IR illumination, the camera provides clear, readable license plate images up to 50 meters (164 feet) in complete darkness, ensuring 24/7 surveillance accuracy.
Rugged Vandal-Resistant and Weatherproof Housing
The IK10-rated impact-resistant dome and IP67-rated weatherproof housing protect the camera from harsh weather, tampering, and extreme environmental conditions, ensuring long-term reliability.
Optimized Bandwidth and Storage Efficiency
Using H.265 video compression, the PNV-A9081RLP minimizes bandwidth usage and storage requirements while maintaining ultra-HD video quality, making it ideal for long-term data retention and cost-effective surveillance management.
Easy Installation and Seamless Integration
With Power over Ethernet (PoE) support, installation is simplified, requiring only a single cable for power and data. ONVIF compliance ensures seamless integration with leading video management systems (VMS) for flexible deployment.
Key Specifications:
- Resolution: 4K Ultra HD (3840 × 2160, 8MP)
- AI-powered analytics: Object classification, motion detection, loitering alerts, virtual line crossing, intrusion detection, vehicle detection
- License Plate Recognition (LPR): Automatic license plate capture and vehicle identification
- Infrared Night Vision: Up to 50m (164 feet) with smart IR
- Video Compression: H.265/H.264/MJPEG
- Weatherproof Rating: IP67 for extreme outdoor conditions
- Vandal-Resistant Rating: IK10 for high-impact protection
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | ||
| Imaging Device | 1/1.8″ CMOS | |
| Resolution | 3840×2160, 3072×1728, 2592×1944, 2688×1520, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024,1280×960, 1280×720, 1024×768, 800 x 600, 800 x 448, 720 x 576, 720×480, 640×480, 640×360 |
|
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on) |
|
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal | |
| Max. Aperture Ratio | F1.6(Wide)~F2.65(Tele) | |
| Angular Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | P iris | |
| Pan / Tilt / Rotate | ||
| Pan / Tilt / Rotate Range | 0˚~360˚ / -45˚~85˚ / 0˚~355˚ | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Stabilization Support(built-in gyro sensor) | |
| Motion Detection | 8ea, polygonal zones | |
| Privacy Masking | 6ea, rectangle zones – Color: GrayBlack/White |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Defocus/ Motion/ Tampering/ Audio/ Shock detection, Sound classification | |
| Alarm I/O | Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback |
|
| Audio In | Selectable(mic in/line in/) | |
| Audio Out | Line out | |
| IR Viewable Length | 30m(98.42ft) | |
| Network | ||
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) Secure boot |
|
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
|
| General | ||
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
|
| Edge Storage | Pre-installed with 32GB Micro SD to support 10,000 LPR images | |
| Memory | 4096MB RAM, 512MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C |
|
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH | |
| EPA(Effective Projected Area) | 0.016 m2 | |
| Certification | IP66/IP67/IP6K9K, IK10+, NEMA4X | |
| Input Voltage | PoE+(IEEE802.3at), 12VDC | |
| Power Consumption | PoE+: Max 20.00W, typical 17.00W 12VDC: Max 18.70W, typical 15.00W |
|
| Mechanical | ||
| Color / Material | White / Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions / Weight | Ø180x125mm(7.09×4.92″), Weight : 1.90Kg (4.19lb) | |
| Compatible Conduit hole / Gangbox | 3/4″(M25) Single, Double, 4″Octagon, Square |
|
| Hanging Mount (Dome) | SBP-187HMW | |
| Wisenet Road AI LPR/ANPR/MMCR | ||
| Solution | Community Traffic | Parking Application |
| Speed Description | Moderate Speed | Low speed |
| Lane Coverage | 1 lane (3.6m/12ft Wide) (with built in IR) | 1 lane (3.6m/12ft Wide) (with built in IR) |
| Speed limit | Up to 70kmh (45mph) (with built in IR) | Up to 40kmh (25mph) (with built in IR) |
| Min. Forward Distance | 12m (38ft) | 10m (33ft) |
| Max. Forward Distance | 12m (40ft) (with built in IR) | 13m (45ft) (with built in IR) |
| Max. Horizontal Angle | 25° | 30° |
| Max. Vertical Angle | 25° | 30° |
| Horizontal Offset | Up to 5m (18ft) | Up to 7m (24ft) |
| Camera Height | Up to 5m (18ft) | Up to 7m (24ft) |
| Vehicle Recognition | Make : 70+ Model : 600+ Color : 11 |
|
| Available Countries | Albania, Armenia, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Germany, Hungary, Ireland, Iceland, Italy, Lithuania, Luxembourg, Latvia, Montenegro, North Macedonia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovenia, Slovakia, Spain, Switzerland, Turkey, United Kingdom, United States of America, Canada, Russian Federation, Azerbaijan, Uzbekistan, Ukraine, Kyrgyzstan, Kazakhstan, Tajikistan, Georgia, Turkmenistan, Australia, New Zealand, Indonesia, Vietnam, Bahrain, Kuwait, Oman, Qatar, KSA (Kingdom of Saudi Arabia), UAE, South Africa, Hongkong/Taiwan (MMCR is not available) | |
