Description

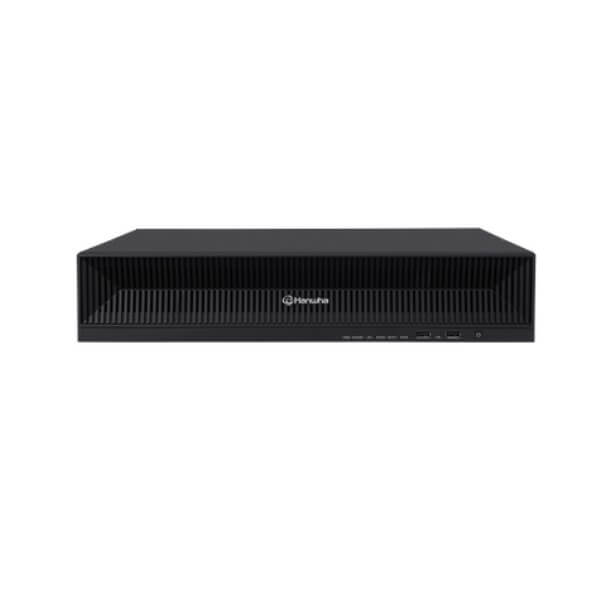

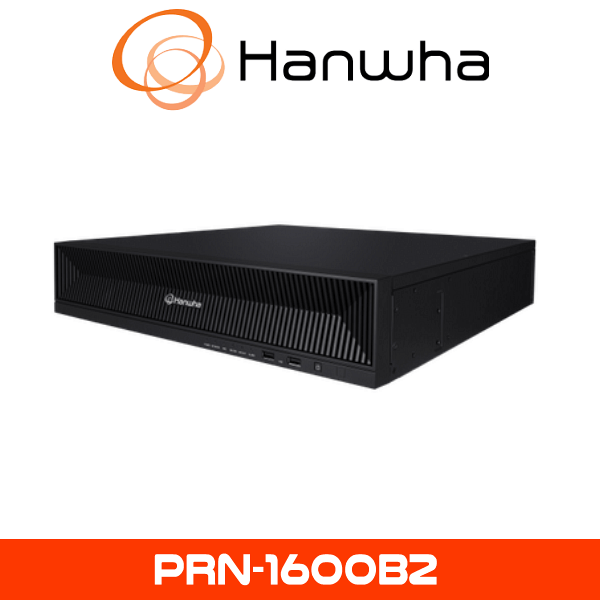

Hanwha PRN-1600B2 Network Video Recorder (NVR)
The Hanwha PRN-1600B2 Network Video Recorder, previously recognized as Samsung CCTV, is a high-performance 16-channel NVR designed for advanced surveillance applications. Featuring 4K ultra-HD recording, AI-powered analytics, and H.265 video compression, this NVR delivers high-resolution video storage with optimized bandwidth efficiency.
4K Ultra-HD Video Recording
The PRN-1600B2 supports up to 16 channels of 4K ultra-HD recording, ensuring high-resolution video storage for forensic-level investigations. It is compatible with Hanwha’s AI-enabled cameras, offering seamless object recognition and analytics-driven security enhancements.
AI-Powered Video Analytics
Integrated AI-driven analytics enable motion detection, object classification, intrusion alerts, and face recognition, significantly reducing false alarms and improving situational awareness for operators.
Optimized Storage with H.265 Compression
Utilizing H.265 compression technology, the PRN-1600B2 reduces bandwidth consumption and extends video storage capacity, allowing for longer retention periods while maintaining high-quality video output.
Seamless Integration with Hanwha & ONVIF Devices
This NVR is fully compatible with Hanwha Techwin cameras and ONVIF-compliant third-party devices, ensuring smooth integration with existing video management systems (VMS) and security infrastructure.
Multi-Device Remote Access
With mobile and web-based remote access, security teams can monitor live video, playback recordings, and manage security alerts from any location, enhancing flexibility and response times.
High-Capacity Storage & Redundancy
The PRN-1600B2 supports multiple HDD slots (up to 6TB per slot) for large-scale video storage, along with RAID configuration options for data redundancy and failover protection.
Key Specifications:
- Maximum Channels: 16
- Max Recording Resolution: 4K Ultra HD
- Compression Technology: H.265/H.264/MJPEG
- AI-Powered Analytics: Motion detection, intrusion alerts, object recognition, face detection
- Storage Capacity: Supports multiple HDDs (up to 6TB per slot)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
- Remote Access: Web-based and mobile device support
- RAID Support: RAID 5/6 for enhanced data protection
- Power Source: 100-240V AC
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
Specifications:
| Display | ||
| Network camera | ||
| Inputs | Max. 16CH | |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920×1080 (60Hz) |
|
| Multi Screen Display | [Local Monitor] – Dynamic layout, Virtual channel view – Clone Mode : Up to 16 Division – Expand Mode : HDMI1 up to 16 Div. HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
| Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps) | |
| Intelligent Analysis | ||
| AI Search | ||
| Object Attribute | Human, Face, Vehicle, Lisence plate | |
| LPR | English, Number (Wisenet AI, P/X Camera) | |
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Distributed mode : Up to 250 Mbps Normal mode : Up to 150 Mbps RAID mode : Up to 250 Mbps |
|
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown |
|
| Search & Play | ||
| Playback Bandwidth | RAID Mode : Max. 64Mbps Non-RAID Mode : Max. 32Mbps |
|
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 64CH(Local 16CH, Remote 16CH per user) | |
| Fisheye Dewarping | Support (Local 1CH), CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 8ea(Max. 80TB, Non-RAID mode) | |
| External | iSCSI storage | |
| RAID | RAID-5/6(Single, 1 Array) | |
| Backup | ||
| File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 250Mbps | |
| Audio | ||
| GUI | 16 CH(network) | |
| Web | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
