Description

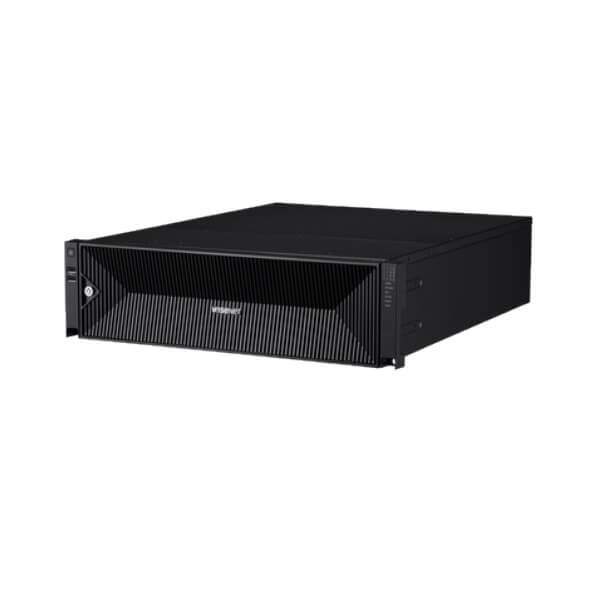

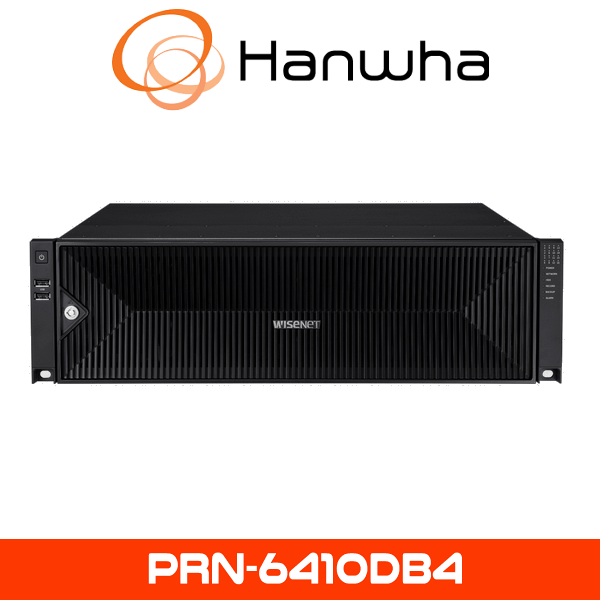

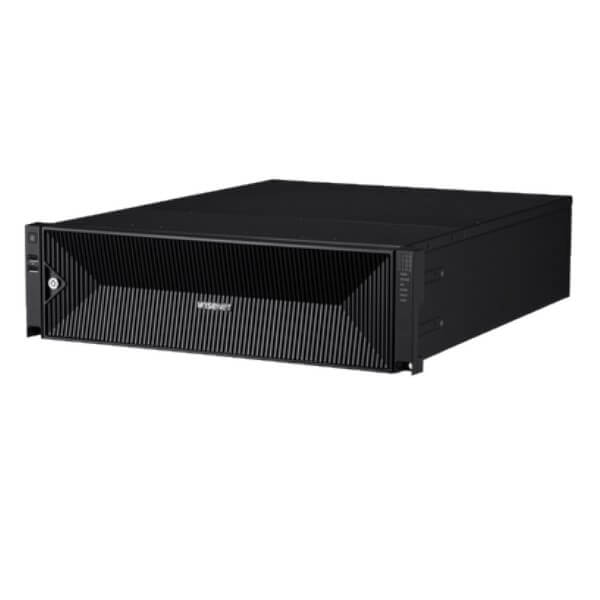

Hanwha PRN-6410DB4 64-Channel Network Video Recorder (NVR)
The Hanwha PRN-6410DB4 64-Channel Network Video Recorder (NVR), previously recognized as Samsung CCTV, is a high-capacity surveillance solution built for enterprise and government security applications. Supporting 64 camera channels, AI-enhanced security features, and high-efficiency storage, this 4K-ready NVR is designed for advanced video analytics and seamless VMS integration.
64-Channel 4K Ultra HD Recording
Supporting up to 64 camera channels, the PRN-6410DB4 enables simultaneous 4K UHD recording, ensuring high-resolution video clarity for forensic analysis and security investigations.
AI-Enhanced Video Analytics
This NVR integrates AI-driven analytics to enhance real-time monitoring with features such as facial recognition, object tracking, motion detection, and intrusion alerts. These advanced security capabilities help reduce false alarms and improve incident response time.
H.265 High-Efficiency Video Compression
The PRN-6410DB4 employs H.265 video compression technology, significantly reducing bandwidth consumption and storage requirements while maintaining superior video quality, ensuring cost-effective long-term recording.
Scalable Storage with RAID Support
With 8 internal HDD bays, supporting up to 10TB per bay, this NVR offers a total storage capacity of 80TB. RAID 5/6 support ensures data redundancy and protection, minimizing data loss in case of HDD failure.
Seamless VMS and ONVIF Integration
The ONVIF-compliant PRN-6410DB4 allows effortless integration with major Video Management Systems (VMS), making it a scalable solution for large security deployments.
Secure and Reliable Operation
This NVR is equipped with cybersecurity features, including secure encryption, authentication, and system health monitoring, to protect sensitive surveillance footage from unauthorized access and cyber threats.
Key Specifications:
- Max Channels: 64 IP cameras
- Max Recording Resolution: 4K UHD (3840 × 2160)
- AI Video Analytics: Motion detection, object tracking, facial recognition, intrusion alerts
- Compression Formats: H.265/H.264/MJPEG
- Storage Capacity: 8 HDD bays (up to 80TB total, 10TB per bay), RAID 5/6 support
- Video Outputs: HDMI, VGA
- ONVIF Compliance: Seamless integration with major VMS platforms
- Cybersecurity Features: Secure encryption, authentication, system monitoring
- Power Supply: 100-240V AC, 50/60Hz
- Operating Temperature: -10°C to +55°C (14°F to 131°F)
- Network Interface: Dual Gigabit Ethernet Ports (10/100/1000 Base-T)
Specifications:
| Display | ||
| Network camera | Inputs | Max. 64CH |
| Resolution | 32MP ~ CIF | |
| Protocols | Wisenet, ONVIF | |
| Decoding | Local Display | [Dual Display]
HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920×1080 (60Hz) |
| Multi Screen Display | [Local Monitor] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ 25/ 36/ 64/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps),
720P(960fps), D1(1920fps) |
|
| Performance | ||
| Operating System Embedded | Linux | |
| Record | Compression | H.265, H.264, MJPEG, WiseStream(H.265, H.264) |
| Recording Bandwidth | Max. 400Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | Playback Bandwidth | Max. 64Mbps(64CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 112CH(Local 64CH, Remote 16CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 16ea(Max. 160TB, Non-RAID mode), Hot swap | |
| External | iSCSI storage | |
| RAID | RAID-5/6(Array Size : 8 HDD x 2 Array) | |
| Backup | File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S),
SUNAPI(Server, Client) |
|
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio Input/Output | 64 CH(network) | |
Compression G.711, G.726, AAC(16/48KHz)
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3’rd party VMS |
|
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon)
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||

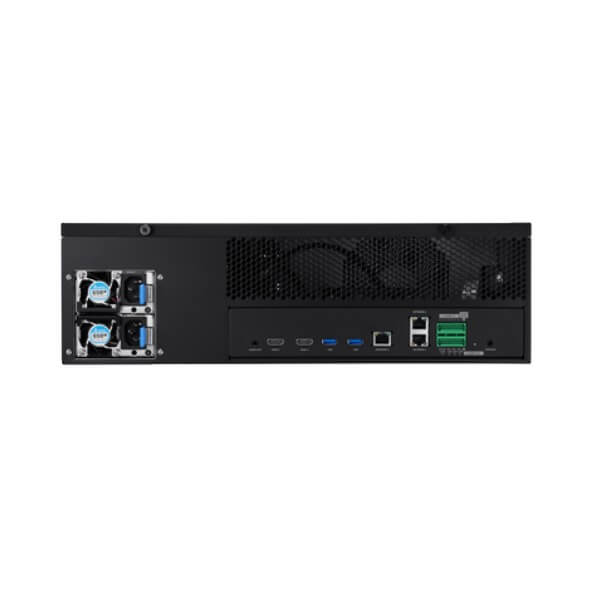

| Front Indicator | HDD, Alarm, Power, Record, Backup, Network | |
| Storage | OK | |
| Reset | Power button | |
| HDD Key Lock | OK | |
| HDMI | 2EA | |
| Audio | Out 1EA | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) | |
| Power inlet | AC 2EA | |
| System | ||
| Log Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Web, Controller (SPC-2000) | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz (Dual SMPS) | |
| Power Consumption | Max. 285W (972.5 BTU with HDD 16ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440.0 x 132.0 x 571.1mm | |
| Weight | Approx. 14.3Kg(31.5 lb, HDD not included) | |
| Intelligent Analysis | ||
| AI Search | Object Attribute | Person, Face(with Wisenet AI camera), Vehicle, Lisence plate |
| Face Recognition | Support 100,000 Library (with Wisenet AI Camera) | |
| LPR | English, Number (Wisenet AI, P/X Camera) | |
