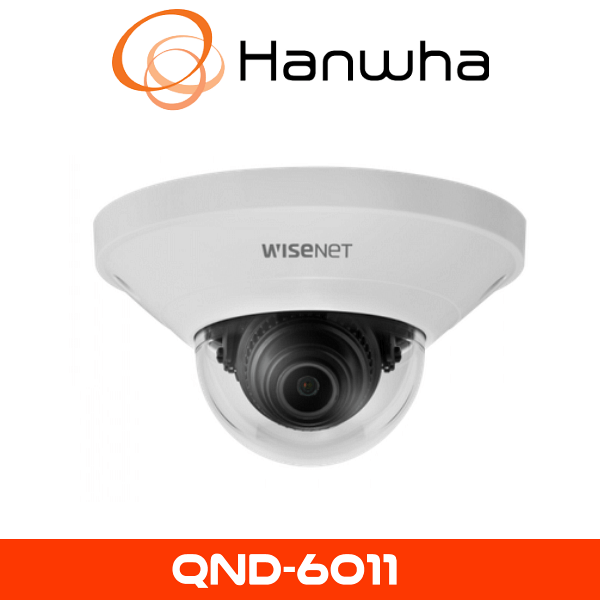

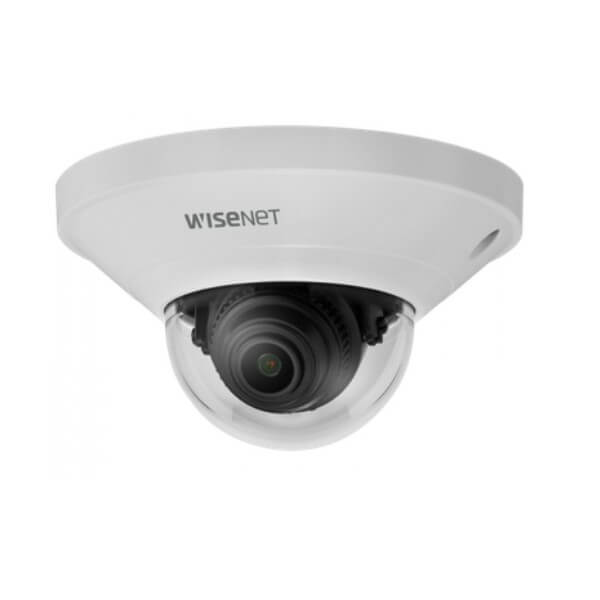

Hanwha QND-6011 Indoor Dome Camera
The Hanwha QND-6011 Qmini indoor dome camera combines discreet design with advanced surveillance capabilities, perfectly addressing the specialized requirements of indoor environments. Its compact size, intelligent analytics, and superior image quality make it a versatile solution for security and operational efficiency.
Optimized Indoor Lens: The camera’s fixed 2.8mm lens provides a wide viewing angle, ideal for comprehensive coverage of indoor spaces such as entrances, lobbies, hallways, and retail floors. The wide-angle lens effectively maximizes monitoring coverage while maintaining image clarity and minimizing distortion.
Enhanced WDR Imaging: The camera utilizes Wide Dynamic Range (WDR) technology at 120dB, effectively balancing bright and dark areas within the frame. This technology ensures clear, well-defined images even in challenging lighting scenarios, such as entrances and windows with direct sunlight exposure.
Edge Storage Capability: The built-in micro SD/SDHC/SDXC card slot provides local storage options, ensuring continuous recording capabilities and redundancy, even in the event of network failures or interruptions.
Seamless Integration: The QND-6011 is fully compatible with leading Video Management Systems (VMS) and Network Video Recorders (NVRs), simplifying integration and enhancing its flexibility within existing security frameworks. ONVIF compliance further ensures seamless interoperability.
Easy and Discreet Installation: Its compact dome design makes the Hanwha QND-6011 ideal for discreet installations, effortlessly blending with the interior décor. Its user-friendly interface ensures rapid deployment and straightforward maintenance.
Intelligent Surveillance Analytics The Hanwha QND-6011 integrates multiple intelligent analytics features:
- Motion Detection: Immediate notification of detected movement.
- Tampering Detection: Alerts operators if the camera is obstructed or tampered with.
- Defocus Detection: Ensures continuous clarity and operational efficiency by notifying security personnel of any focus issues.
Key Features
- 2 Megapixel resolution
- Built-in 2.8mm fixed lens
- Ultra-compact design
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Motion detection, Tampering detection
- People counting for retail business intelligence
- micro SD (128GB) memory slot, PoE / 12V DC
- Hallway view support
- IP42, IK08 rated
- LDC support (Lens Distortion Correction)
- Genetec Stratocast compatible
SPCIFICATION
| Imaging Device | 1/2.8″ 2MP CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) |
| Video Out | None |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 113.7 / V: 61.5° / D: 134.5° |
| Min. Object Distance | None |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | None |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | None |
| Audio Out | None |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Audio Compression | None |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OSxonly) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP42, IK08 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption | PoE: Max 4.80W, typical 2.80W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø99.0×56.0mm(Ø3.9×2.2″), 145g(0.32 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | None |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
| Backbox | None |
| DORI | |
| Detect (25PPM/ 8PPF) | 25.1m(82.21ft) |
| Observe (63PPM/ 19PPF) | 10.0m(32.89ft) |
| Recognize (125PPM/ 38PPF) | 5.0m(16.44ft) |
| Identify (250PPM/ 76PPF) | 2.5m(8.22ft) |
