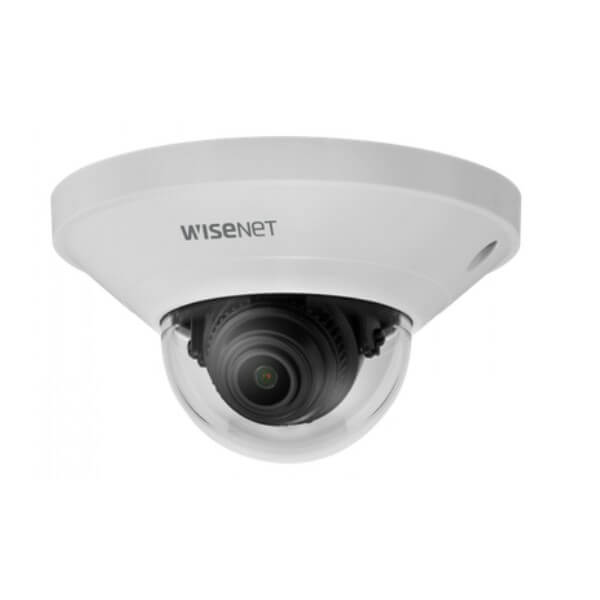

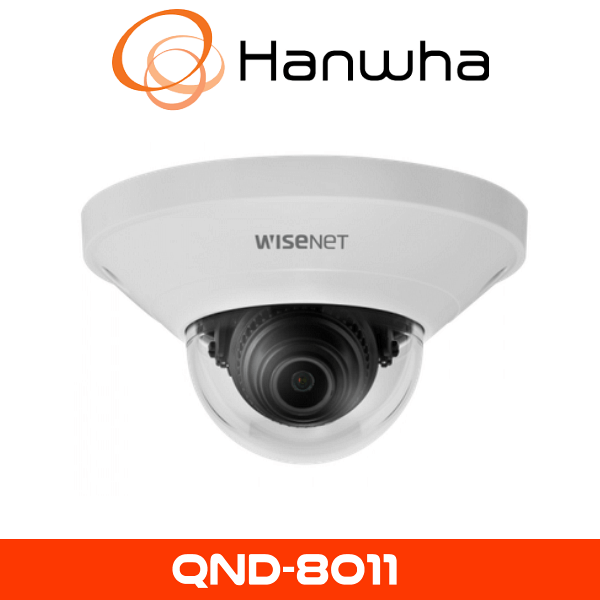

Hanwha QND-8011 Dome Camera
The Hanwha QND-8011 Dome Camera is designed to provide high-quality indoor surveillance, offering robust and reliable monitoring for diverse environments. This security camera combines superior performance with ease of integration, presenting a sophisticated yet affordable solution for comprehensive indoor surveillance.
Exceptional Image Clarity: At its core, the Hanwha QND-8011 Dome Camera utilizes a high-performance 5 Megapixel CMOS sensor, enabling it to deliver stunningly clear and detailed video footage at resolutions up to 2560 x 1920 pixels. This level of detail is crucial for accurate identification, incident analysis, and investigative tasks. With its high-resolution capabilities, the QND-8011 ensures comprehensive surveillance coverage suitable for retail outlets, commercial properties, and professional office settings.
Fixed Lens Precision: The QND-8011 features a precision-engineered fixed lens that provides consistent, wide-area coverage without requiring manual adjustment. This makes it particularly effective for areas needing constant monitoring, including entryways, lobbies, corridors, and waiting rooms. Its robust optical quality ensures optimal performance, capturing every detail within its field of view.
Advanced Wide Dynamic Range (WDR): Featuring advanced WDR technology, the QND-8011 effectively manages challenging lighting conditions such as bright entrances or backlit indoor spaces. This technology balances out high-contrast scenes to capture clear video, reducing the loss of detail in bright or shadowy areas, thus ensuring reliable footage even in difficult lighting.
Enhanced Low-Light Performance: With superior digital noise reduction (DNR), the QND-8011 performs exceptionally well in low-light or nighttime conditions. This feature minimizes noise and distortion, delivering crisp, clear images even in minimal lighting, crucial for effective surveillance during evening or dimly lit conditions.
Robust and Vandal-Resistant Design: Built for durability, the QND-8011 boasts vandal-resistant construction, protecting it against physical damage and intentional vandalism. Its IK08-rated housing ensures sustained performance even in challenging environments, providing continuous surveillance without interruption, making it ideal for installation in locations susceptible to potential damage or tampering.
Intelligent Surveillance Capabilities: The Hanwha QND-8011 includes intelligent analytics that bolster security operations. Integrated motion detection capabilities alert users to real-time events, allowing proactive responses to security incidents. Additionally, tampering detection alerts help ensure the integrity of surveillance coverage by immediately notifying users of interference or camera obstruction.
Network Efficiency and Video Compression: Built for efficiency, the QND-8011 supports advanced H.265 and H.264 video compression standards. These standards significantly reduce bandwidth consumption and storage requirements without sacrificing video quality.
Flexible Surveillance Applications: The versatility of the Hanwha QND-8011 makes it suitable for diverse applications across various sectors. Retail stores benefit from its discreet design and high-resolution video for theft prevention and customer safety. In corporate environments, it enhances workplace security, providing reliable monitoring of communal and high-traffic areas, such as hallways, conference rooms, and lobbies. Educational institutions and public buildings also benefit from its discrete and durable design, ensuring robust surveillance and safety compliance.
Key Features
• 2.8mm fixed lens
• 0.15Lux (Color), WDR (120dB)
• Max. 30fps@5MP (H.265 / H.264)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• LDC, PoE
SPECIFICATION
Video | |
Imaging Device | 1/2.8″ 5MP CMOS |
Resolution | 5MP mode : 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 4MP mode : 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
NETD | None |
Pixel Size | None |
Min. Illumination | Color: 0.15Lux(F2.0, 1/30sec) |
Video Out | micro HDMI: 1080p@30/25fps(60/50Hz) |
Video Transmission Distance | None |
Lens | |
Focal Length (Zoom Ratio) | 2.8mm fixed focal |
Max. Aperture Ratio | F2.0 |
Angular Field of View | H: 104.4°/ V: 76.7°/ D: 136.1° |
Min. Object Distance | None |
Focus Control | Fixed |
Lens Type | None |
Mount Type | None |
Optional Lens | None |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
Pan Range | None |
Pan Speed | None |
Tilt Range | None |
Tilt Speed | None |
Rotate Range | None |
Sequence | None |
Preset Accuracy | None |
Operational | |
Camera Title | Displayed up to 85 characters |
Direction Indicator | None |
Day & Night | Auto(Electrical) |
Backlight Compensation | BLC, WDR, SSDR |
Wide Dynamic Range | 120dB |
Digital Noise Reduction | SSNR |
Digital Image Stabilization | None |
Defog | None |
Motion Detection | 4ea, polygonal zones |
Privacy Masking | 6ea, rectangular zones |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
Digital PTZ | None |
Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
Analytics | Defocus detection, Motion detection, Tampering |
Business Intelligence | People counting |
Serial Interface | None |
Alarm I/O | None |
Alarm Triggers | Analytics, Network disconnect |
Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
Audio In | None |
Audio Out | None |
IR Viewable Length | None |
IR Illuminator (Optional) | None |
Water Removal | None |
Auto Tracking | None |
Coaxial Protocol | None |
Color Palettes | None |
Radiometry | |
Temperature detect range | None |
Temperature accuracy | None |
Temperature detection | None |
Additional | None |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.265/H.264: Main/High, MJPEG |
Audio Compression | None |
Smart Codec | WiseStreamⅡ |
Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
General | |
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
Web Viewer | None |
Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
Memory | 512MB RAM, 256MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -10°C ~ +40°C(-14°F ~ +104°F) / Less than 90% RH |
Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
Certification | IP42, IK08 |
Input Voltage | PoE(IEEE802.3af, Class2) |
Power Consumption | PoE: Max 5.00W, typical 4.00W |
Mechanical | |
Color / Material | White / Plastic |
RAL Code | RAL9003 |
Product dimensions / weight | Ø99.0×56.0mm(Ø3.9×2.2″), 165g(0.36 lb) |
Conduit hole | None |
Hanging mount(Dome) | SBP-099HMW |
Skin cover(Dome) | None |
Weather cap(Dome) | None |
Power module | None |
Backbox | None |
DORI (EN62676-4 standard) | |
Detect (25PPM/ 8PPF) | 40.2m(12.26ft) |
Observe (63PPM/ 19PPF) | 16.1m(4.90ft) |
Recognize (125PPM/ 38PPF) | 8.0m(2.45ft) |
Identify (250PPM/ 76PPF) | 4.0m(1.23ft) |
