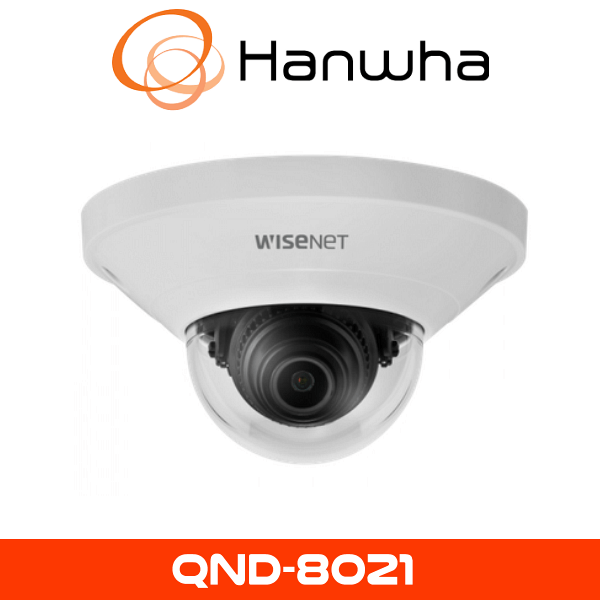

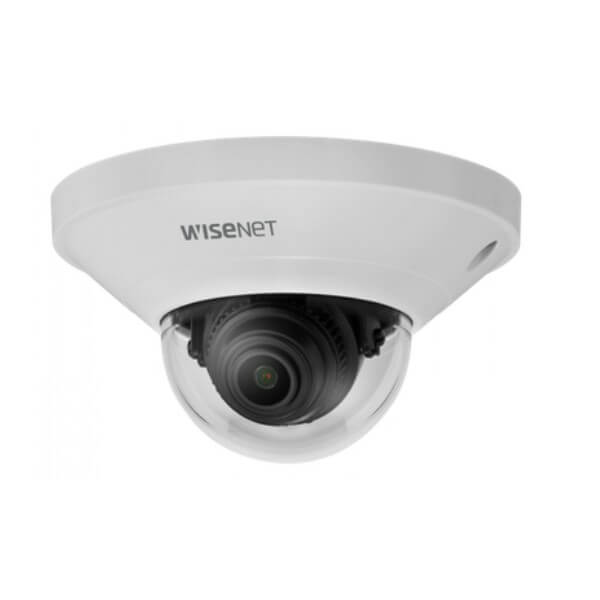

Hanwha QND-8021 Dome Camera
The Hanwha QND-8021 Dome Camera represents the pinnacle of professional indoor surveillance technology, crafted meticulously to meet diverse security needs across multiple industries. As a part of Hanwha’s esteemed Q series, the QND-8021 exemplifies exceptional imaging performance, flexibility, and robustness in design.
High-Resolution Imaging: At the heart of the Hanwha QND-8021 lies a powerful 5 Megapixel CMOS sensor, ensuring crystal-clear video recording with resolutions up to 2560 x 1920 pixels. This impressive level of detail ensures accurate identification and clarity critical for investigative and evidential purposes.
Varifocal Lens for Flexible Surveillance: The Hanwha QND-8021 is engineered with a versatile varifocal lens, ranging from 3.1mm to 6.13mm, allowing users to adjust focal lengths and coverage areas seamlessly. This capability provides dynamic zoom functionality, enabling detailed monitoring of specific areas or wide-angle coverage, accommodating various installation heights and distances without compromising image quality.
Advanced Wide Dynamic Range: One of the key strengths of the Hanwha QND-8021 Dome Camera is its implementation of Wide Dynamic Range (WDR) technology. With WDR, the camera captures clear and balanced images in environments with extreme variations in lighting. Situations often encountered in entryways, near windows, or under direct sunlight become manageable, significantly reducing issues related to glare, shadows, and overexposed or underexposed footage.
Superior Low-Light Performance: The QND-8021 incorporates advanced digital noise reduction (DNR) technology, optimizing performance in low-light environments. This feature significantly reduces visual noise, delivering clean, clear imagery even under minimal illumination. Coupled with its day/night functionality and infrared-cut filter, the camera effortlessly transitions between lighting conditions, maintaining optimal image clarity around the clock.
Durability and Protection: Durability is a hallmark of the Hanwha QND-8021 design, featuring robust, vandal-resistant construction that ensures resilience against intentional damage or harsh physical conditions. Its IK08-rated housing safeguards the camera from impacts and tampering, providing peace of mind that surveillance coverage remains uninterrupted, even in challenging locations such as public spaces, hallways, or parking garages.
Discrete and Elegant Design: The QND-8021’s compact dome form factor offers discreet installation options, blending effortlessly into various interior decors without detracting from aesthetics. Its sleek design makes it ideal for indoor environments where unobtrusive monitoring is crucial, such as upscale retail stores, hotels, corporate offices, and healthcare facilities.
Related Products: The QND-8021 can effectively be paired with other Hanwha network cameras such as QNO-8080R (outdoor bullet camera), QNV-8080R (outdoor dome camera), or QNP-6320H (PTZ camera) to create comprehensive and unified surveillance solutions, suitable for large-scale deployments in expansive facilities like malls, hotels, educational institutions, and corporate campuses.
Key Features
• 4mm fixed lens
• 0.15Lux (Color), WDR (120dB)
• Max. 30fps@5MP (H.265 / H.264)
• H.265, H.264, MJPEG codec support, Multiple streaming
• Tampering, Motion detection, Defocus detection
• Micro SD / SDHC / SDXC memory slot (Max. 128GB)
• Hallway view, WiseStream II support
• LDC, PoE
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 5MP mode : 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 4MP mode : 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps(@5MP Max. 2fps) |
| Min. Illumination | Color: 0.15Lux(F1.6, 1/30sec, 30IRE) BW: 0.15Lux(F1.6, 1/30sec, 30IRE) |
| Video Out | micro HDMI: 1080p@30/25fps(60/50Hz) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 81°/ V: 58°/ D: 106° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Handover: PTZ preset |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C~+40°C(+14°F~+104°F) / 0~90% RH(non-condensing) |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F~+140°F) / 0~90% RH |
| Certification | IP42, IK08 |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption | PoE: Max 5.00W, typical 4.00W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø99.0×56.0mm(ø3.9×2.2″), 165g(0.36 lb) |
| Hanging Mount (Dome) | SBP-099HMW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 61.7m(202.31ft) |
| Observe (63PPM/ 19PPF) | 24.7m(80.92ft) |
| Recognize (125PPM/ 38PPF) | 12.3m(40.46ft) |
| Identify (250PPM/ 76PPF) | 6.2m(20.23ft) |
