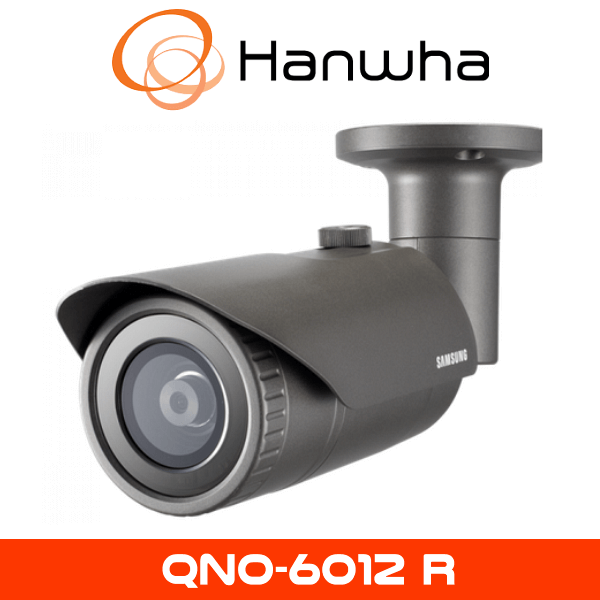

Hanwha QNO-6012R

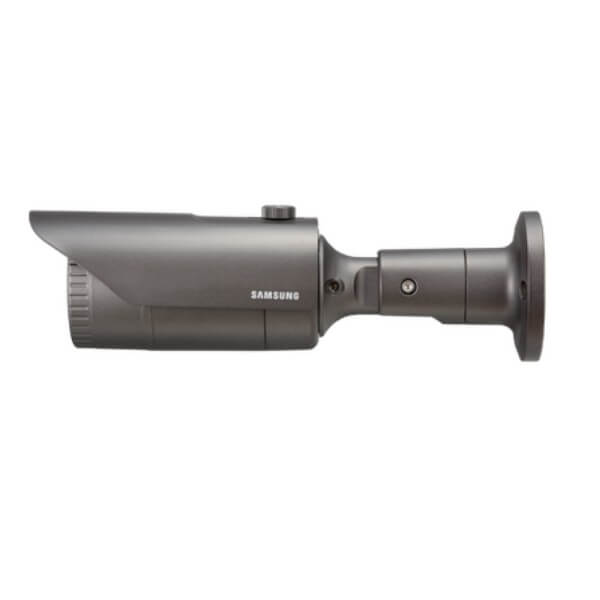

Hanwha QNO-6012R Overview The Hanwha QNO-6012R bullet camera is designed for efficient and reliable video surveillance, offering clear, high-definition video quality ideal for safeguarding diverse environments. Its blend of performance, resilience, and intelligent features make it a valuable asset for modern security needs.
Featuring integrated infrared LEDs:The QNO-6012R provides clear night-time surveillance up to 20 meters. The camera automatically adjusts to varying lighting conditions, switching seamlessly between day and night modes to ensure consistent surveillance quality. Enhanced imaging technologies, including Wide Dynamic Range (WDR) at 120dB, ensure balanced and detailed imagery even in high-contrast environments.
Designed to withstand harsh conditions: The QNO-6012R complies with IP66 weather resistance and IK10 vandal-proof standards. This ensures optimal operation under challenging environmental conditions, making it suitable for installations at commercial sites, public areas, educational facilities, and residential properties.
Intelligent video analytics: Such as motion detection, tampering alarms, and virtual line detection provide proactive security management, allowing immediate responses to potential threats. Advanced video compression (H.265/H.264/MJPEG) significantly reduces storage requirements, optimizing surveillance infrastructure performance.
Advanced Imaging Capabilities: The camera’s 120dB Wide Dynamic Range technology expertly balances lighting contrasts within a single frame, ensuring clarity in scenes with both extremely bright and dark areas. This is particularly useful for surveillance of entrances, loading docks, or windows, significantly enhancing video accuracy in challenging lighting conditions.
Easy Installation and Management Designed with user-friendliness in mind, the Hanwha QNO-6012R offers straightforward installation and configuration. Its compact bullet-style design allows for flexible placement options, accommodating different installation environments and mounting requirements.
Applications and Use Cases The Hanwha QNO-6012R is versatile and suited for a wide range of applications, including:
- Commercial Retail and Office Spaces: Protect entrances, lobbies, and critical areas.
- Educational Institutions: Ensure student safety and campus security.
- Public and Government Facilities: Secure high-traffic areas and sensitive locations.
- Residential Complexes: Provide reliable monitoring of common areas and parking zones.
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ 2MP CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 113.7 / V: 61.5° / D: 134.5° |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| IR Viewable Length | 20m(65.62ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.00W, typical 5.20W 12VDC: Max 6.10W, typical 4.50W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | Ø70.0×246.0mm(Ø2.76×9.69″), 700g(1.54 Ib) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 25.1m(82.21ft) |
| Observe (63PPM/ 19PPF) | 10.0m(32.89ft) |
| Recognize (125PPM/ 38PPF) | 5.0m(16.44ft) |
| Identify (250PPM/ 76PPF) | 2.5m(8.22ft) |
