Description

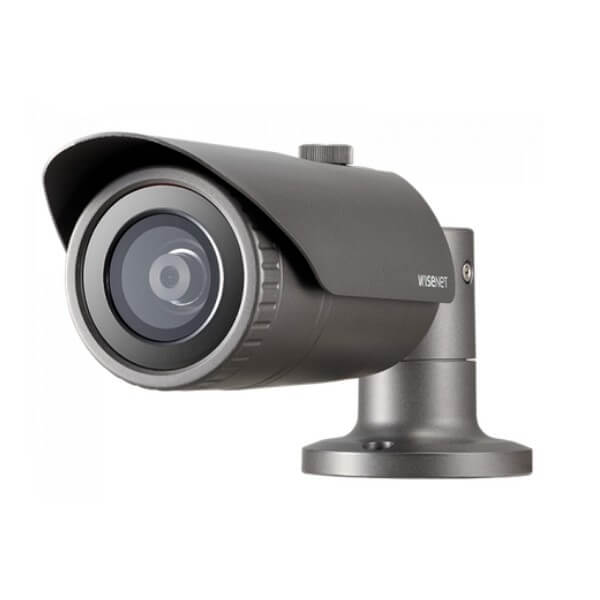

Hanwha QNO-7012R
The Hanwha QNO-7012R is specifically engineered for professional-grade surveillance needs, combining robust hardware and intelligent software solutions. This outdoor bullet IP camera excels in clarity, durability, and reliability, significantly enhancing security measures for any commercial or residential property.
Superior Image Quality
The camera boasts a 4-megapixel CMOS sensor, offering crystal clear resolution of 2560×1440 pixels. This enhanced resolution provides detailed images, ensuring critical areas are monitored accurately. The QNO-7012R’s powerful lens allows users to capture vivid footage even under challenging lighting conditions, thanks to its advanced Wide Dynamic Range (120dB WDR).
Night Vision and IR Performance
Hanwha QNO-7012R excels in low-light conditions. Its integrated infrared (IR) LEDs provide clear vision even in complete darkness up to 30 meters. This advanced night vision capability allows continuous monitoring of vital areas such as entrances, parking areas, and perimeter boundaries, ensuring no activity goes unnoticed during nighttime.
Rugged and Reliable Construction
Built for challenging outdoor environments, the Hanwha QNO-7012R holds both IP66 and IK10 ratings, signifying its resistance to water, dust, and physical impacts. This camera withstands harsh weather conditions, from heavy rain and extreme humidity to dust storms and sub-zero temperatures, providing reliable, uninterrupted service year-round.
Enhanced Security Features
Equipped with intelligent analytics, the QNO-7012R includes features such as motion detection, tampering alerts, defocus detection, and intrusion detection. These proactive security measures allow users to swiftly respond to suspicious activities, reducing potential security risks.
Key Features:
• Maximum 4MP resolution
• Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On)
• 2.8mm fixed focal
• Maximum 30fps@4MP all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Hallway view (90°/270°), LDC support
• Micro SD/SDHC/SDXC memory slot (128GB)
• IR viewable length 20m (65.62ft)
• IP66, IK10, PoE, 12VDC
SPECIFICATION
| Video | |
| Imaging Device | 1/3″ CMOS |
| Resolution | 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@4MP Max. 2fps) |
| Min. Illumination | Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 108°, V: 60°, D: 122° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~100° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset) |
| Audio In | Selectable(mic in/line in) |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 20m (65.62ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C (-40°F ~ +131°F) / 0~95% RH ＊Start up should be done at -30°C or above |
| Storage Temperature / Humidity | -40°C~+60°C (-40°F~+140°F) / 0~95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 10.7W, typical 8W 12VDC: Max 9.1W, typical 6.8W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | ø70.0×246.0mm(ø2.76×9.69″), 700g(1.54 lb) |
| Compatible Conduit hole / Gangbox | Single, Double, 4″Octagon |
| Backbox | SBO-100B1, SBO-147B |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 37.5m(123.17ft) |
