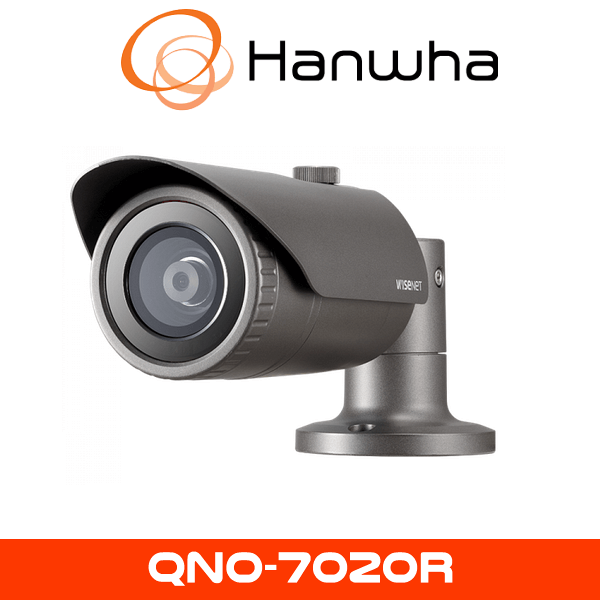

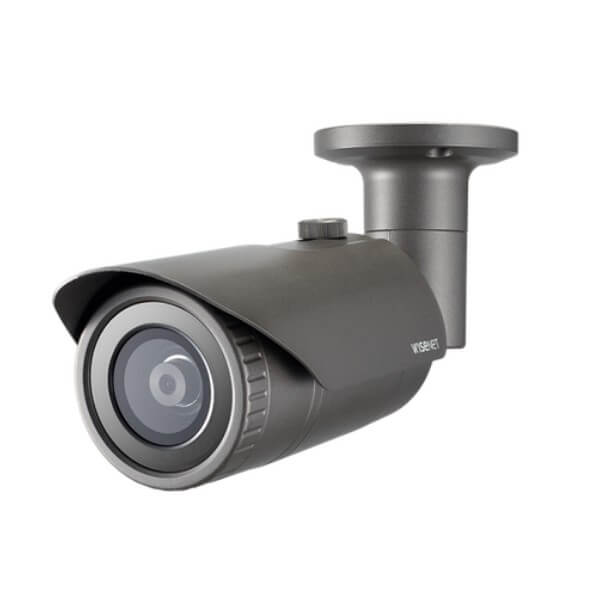

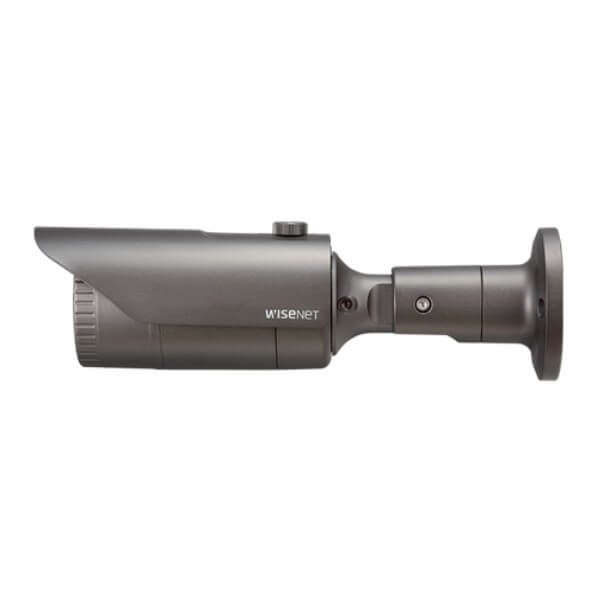

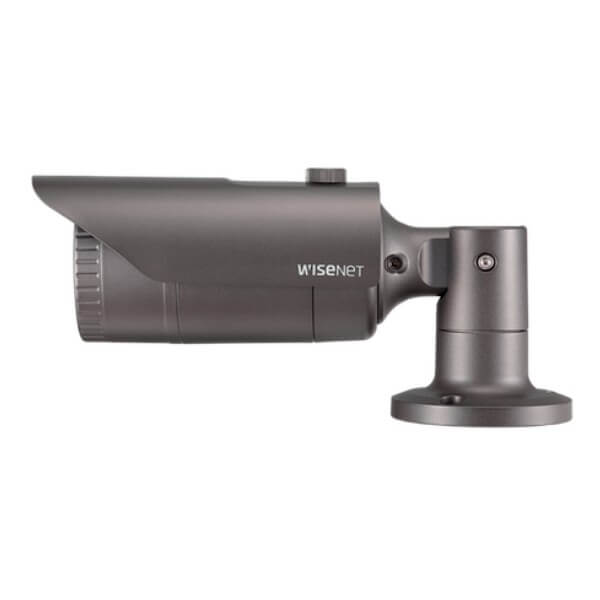

Hanwha QNO-7020R
The Hanwha QNO-7020R CCTV Camera is meticulously engineered to deliver outstanding outdoor surveillance performance. With a powerful 4-megapixel resolution, it provides ultra-clear video footage, ensuring critical details are never missed. Built to withstand the harshest environments, this camera boasts IP66-rated weatherproof protection, making it reliable under all weather conditions, from extreme cold to intense heat and heavy rain.
Core Features:
- Resolution: 4 Megapixels (2688×1520)
- IR Distance: Up to 30 meters
- Wide Dynamic Range: 120dB
- Lens: 3.6mm fixed lens
- IP Rating: IP66 Weatherproof
- Video Compression: H.265/H.264/MJPEG
- Analytics: Motion detection, tampering detection, defocus detection
- Power Supply: PoE, 12V DC
Applications & Use Cases:
The Hanwha QNO-7020R excels in various outdoor surveillance scenarios, including:
- homeowner peace of mind.
- Commercial Facilities: Perfect for monitoring parking lots, warehouses, and perimeter fences to protect assets and reduce theft.
- Industrial Sites: Suitable for factories, construction sites, and other industrial facilities, providing robust security under challenging environmental conditions.
- Public Areas: Enhances safety in parks, campuses, and public venues by providing detailed monitoring day and night.
Compatibility & Integration:
The Hanwha QNO-7020R is compatible with most existing security management systems and offers seamless integration through ONVIF compliance. It also works effectively with Hanwha’s own suite of security management software solutions, allowing for centralized control, monitoring, and management.
Specifications:
| Video | |
| Imaging Device | 1/3″ 4MP CMOS |
| Effective Pixels | 2688(H)x1520(V) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.4Lux(F2.2, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | None |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 81.0° / V: 45.0° / D: 95.0° |
| Min. Object Distance | None |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | None |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | 25m(82.02ft) |
| Camera Title | Displayed up to 20 characters per line(Max.5 lines) |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Line in Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | None |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264, MJPEG |
| Resolution | 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps(60Hz/50Hz) 2MP, all resolution, MJPEG: Max 15fps/12fps(60Hz/50Hz) |
| Smart Codec | WiseStreamⅠ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.00W 12VDC: Max 6.00W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| RAL Code | |
| Product dimensions / weight | Ø70.0×246.0mm(Ø2.76×9.69″), 730g(1.61 lb) |
