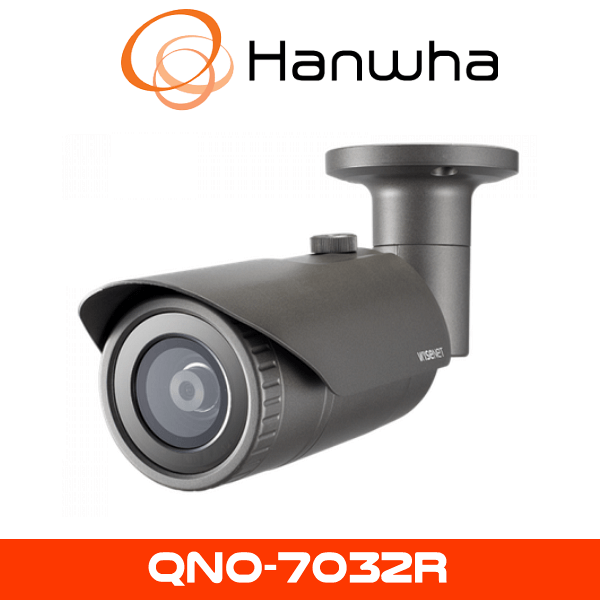

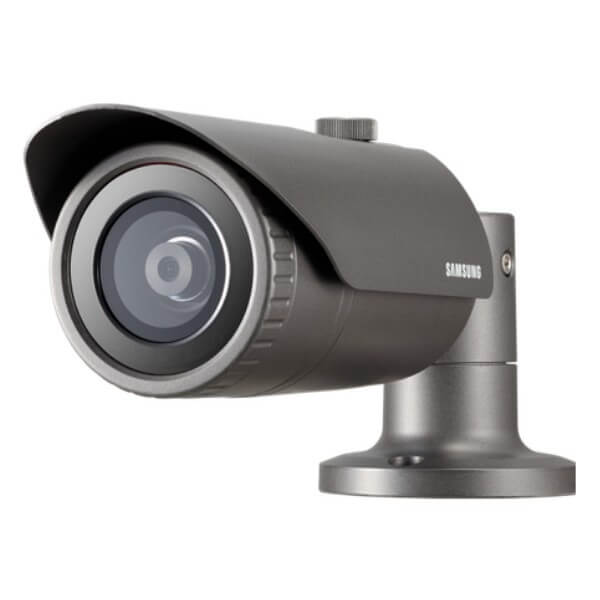

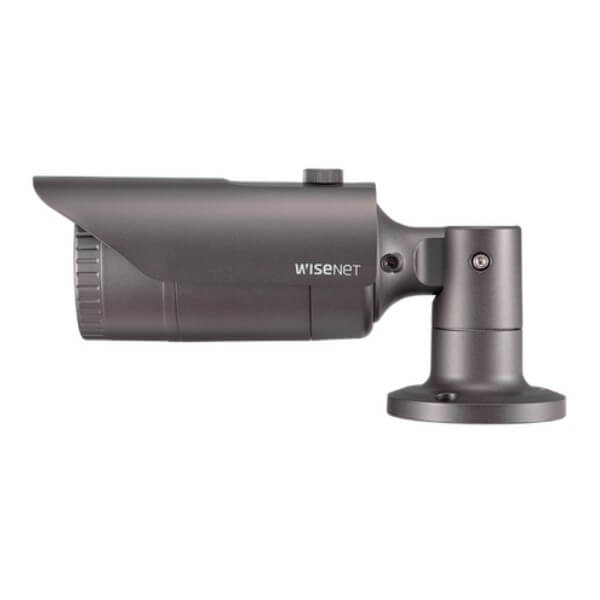

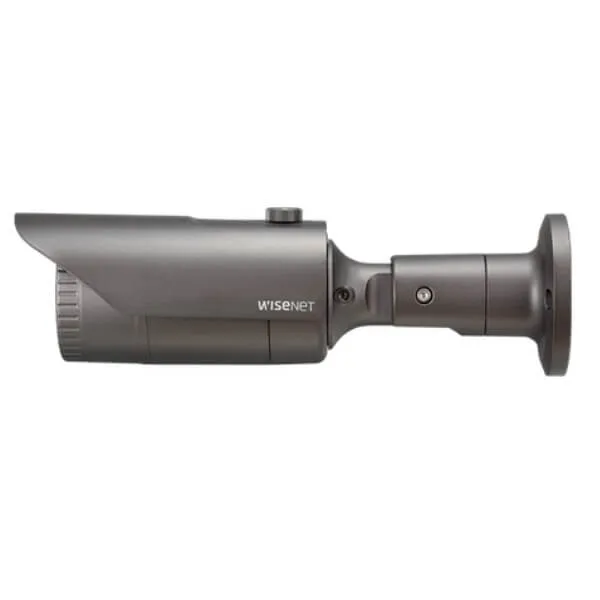

Hanwha QNO-7032R Bullet Camera
Hanwha QNO-7032R Overview The Hanwha QNO-7032R bullet camera is specifically designed to offer superior video surveillance capabilities for commercial, residential, and institutional security. This camera strikes an optimal balance between performance, durability, and affordability, making it ideal for diverse security environments.
Fixed Lens: Optimal Coverage Featuring a fixed 6mm lens, the QNO-7032R provides a focused field of view ideal for monitoring entry points, driveways, perimeters, and other critical zones requiring specific attention. With a 51° horizontal field of view, the camera ensures optimal coverage and clarity, capturing necessary details without distortion..
Advanced Imaging Technology: The camera’s 120dB Wide Dynamic Range (WDR) effectively handles complex lighting environments, balancing dark and bright areas within the same frame. The result is consistently clear footage regardless of lighting variations.
Infrared Night Vision Capabilities: The Hanwha QNO-7032R achieves night vision ranges up to 30 meters. This feature ensures continuous high-quality video monitoring in complete darkness, making it exceptionally suitable for locations requiring uninterrupted nighttime surveillance, such as warehouses, parking lots, and remote installations.
Intelligent Video Analytics: The QNO-7032R camera incorporates sophisticated analytics, including motion detection, virtual line detection, intrusion detection, and defocus detection.
Advanced Compression Technology: Supporting H.265, H.264, and MJPEG video compression formats, the QNO-7032R efficiently manages bandwidth and storage requirements without compromising image quality.
Integration and Compatibility: The QNO-7032R seamlessly integrates with leading video management systems (VMS) and network video recorders (NVRs), making it suitable for diverse security infrastructures. The camera’s ONVIF compliance further enhances interoperability, simplifying integration into existing security ecosystems.
Installation and Application Scenarios Thanks to its versatile design, the Hanwha QNO-7032R is widely applicable across multiple environments, including:
- Retail and Commercial Properties: Securing storefronts, entryways, and parking lots.
- Educational Facilities: Enhancing campus safety through comprehensive surveillance.
- Industrial and Manufacturing Sites: Monitoring operational areas and ensuring compliance.
- Government and Institutional Buildings: Protecting sensitive areas and public safety.
SPECIFICATION
| Video | |
| Imaging Device | 1/3″ CMOS |
| Resolution | 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@4MP Max. 2fps) |
| Min. Illumination | Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 6.0mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 49°, V: 28°, D: 56°˚ |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~100° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset) |
| Audio In | Selectable(mic in/line in) |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m (98.42ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C (-40°F ~ +131°F) / 0~95% RH ＊Start up should be done at -30°C or above |
| Storage Temperature / Humidity | -40°C~+60°C (-40°F~+140°F) / 0~95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 10.7W, typical 8W 12VDC: Max 9.1W, typical 6.8W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | ø70.0×246.0mm(ø2.76×9.69″), 700g(1.54 lb) |
| Compatible Conduit hole / Gangbox | Single, Double, 4″Octagon |
| Backbox | SBO-100B1, SBO-147B |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 112.3m(368.60ft) |
| Observe (63PPM/ 19PPF) | 44.9m(147.44ft) |
| Recognize (125PPM/ 38PPF) | 22.5m(73.72ft) |
| Identify (250PPM/ 76PPF) | 11.2m(36.86ft) |
