Description

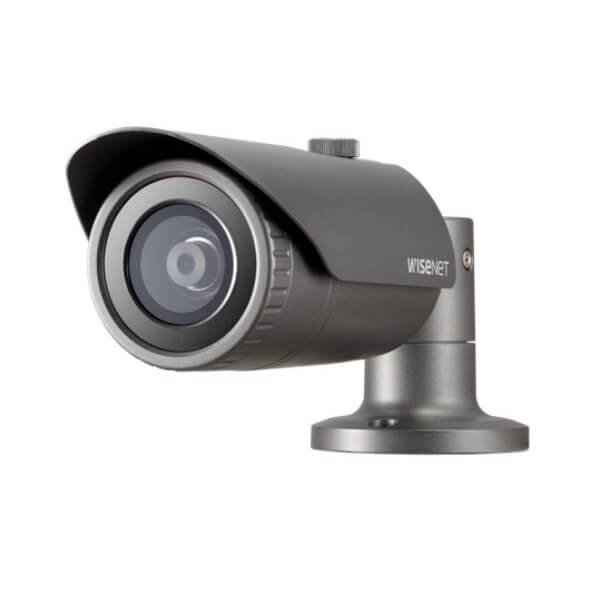

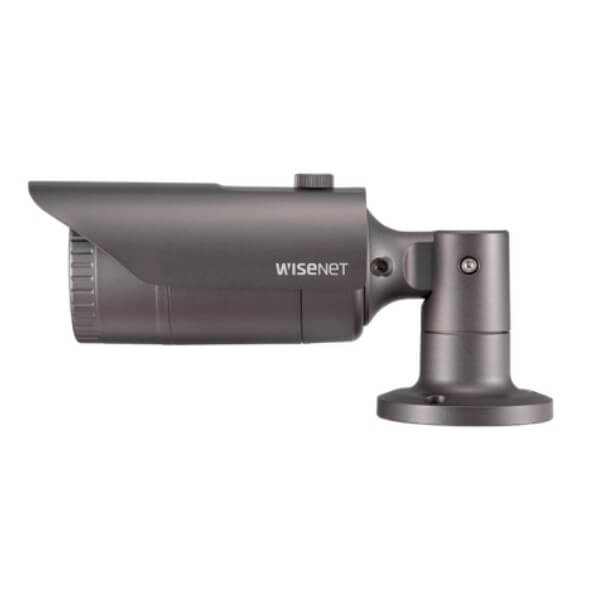

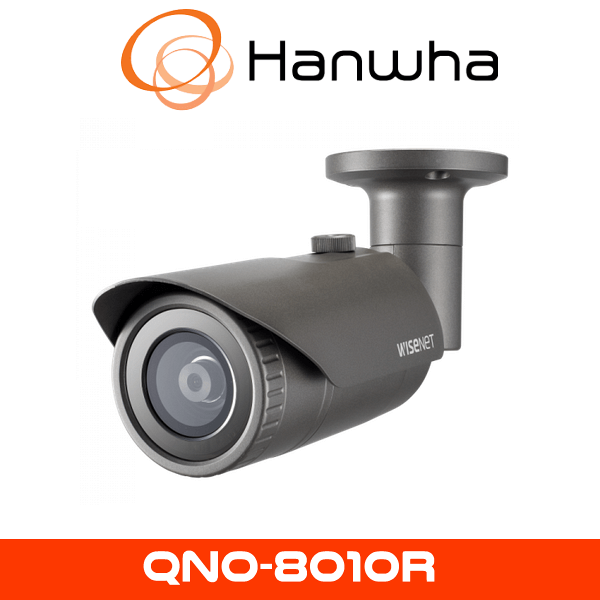

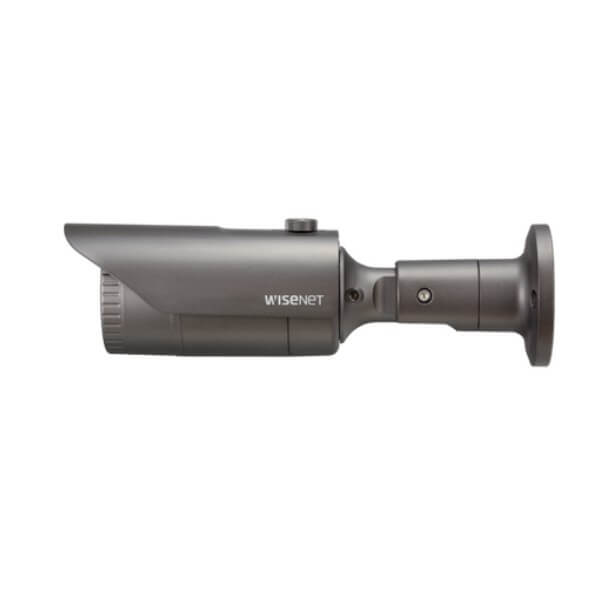

Hanwha QNO-8010R IR Bullet Camera
The Hanwha QNO-8010R Bullet Camera is a reliable and efficient surveillance solution from Hanwha’s cost-effective product line, offering advanced features at an affordable price. Equipped with a powerful 5MP resolution sensor (2592×1944 pixels), the camera ensures highly detailed imaging for precise monitoring and clear evidence collection.
Detailed Features & Specifications:
High-Quality Imaging
With its superior 5-megapixel CMOS sensor, Hanwha QNO-8010R captures high-definition video footage, essential for identifying individuals, vehicles, and activities clearly. The camera provides significantly sharper images compared to standard Full HD cameras, enabling better accuracy in critical security situations.
Wide Field of View
The camera includes a fixed 2.8mm lens that delivers extensive coverage suitable for wide-area surveillance, reducing blind spots and maximizing security efficiency.
Night Vision with Infrared Technology
Featuring IR LEDs, Hanwha QNO-8010R delivers crystal-clear night-time surveillance up to 20 meters, ensuring visibility in complete darkness. Its Intelligent IR feature automatically adjusts infrared intensity, eliminating overexposure in close proximity scenarios.
Robust Build Quality
Designed for challenging environments, the camera is encased in IP66 weatherproof housing. It withstands severe weather conditions, including dust, rain, and humidity, providing continuous, reliable security performance.
Advanced Image Enhancement Features
The camera is equipped with 120dB Wide Dynamic Range (WDR) that balances the lighting in contrasting environments, delivering clear images even in extreme lighting scenarios such as bright sunlight or deep shadows.
Smart Bandwidth Optimization
Supporting H.265 video compression, this camera significantly reduces bandwidth usage and storage needs by efficiently encoding footage without compromising image clarity. This means longer retention times with reduced storage costs.
Easy Installation with PoE Support
Power over Ethernet (PoE) support simplifies installation, requiring only one cable for both power and data transmission, significantly reducing installation time and cost.
Intelligent Analytics
It includes intelligent video analytics, such as motion detection, tampering detection, and defocus detection, helping users stay proactive in their surveillance strategies by providing timely alerts.
SPECIFICATION
Show > Ver | 1 |
Show > Imaging Device | 1/2.8″ CMOS |
Show > Resolution | 5MP mode : 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 4MP mode : 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
Hide > Max. Resolution | 2592×1944 |
Hide > Max. Resolution(MP) | 5MP |
Show > Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@5MP Max. 2fps) |
Show > NETD | None |
Show > Pixel Size | None |
Show > Min. Illumination | Color: 0.15Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
Show > Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
Show > Video Transmission Distance | None |
Show > Focal Length (Zoom Ratio) | 2.8mm fixed focal |
Hide > Max. Focal Length | 2.8 |
Hide > Min. Focal Length | 2.8 |
Hide > Zoom Ratio | None |
Hide > Focal Type | Fixed |
Show > Max. Aperture Ratio | F2.0 |
Show > Angular Field of View | H: 105°/ V: 77°/ D: 136° |
Hide > Max. Horizontal Angle | 105 |
Hide > Min. Horizontal Angle | 105 |
Hide > Max. Vertical Angle | 77 |
Hide > Min. Vertical Angle | 77 |
Show > Min. Object Distance | None |
Show > Focus Control | Fixed |
Show > Lens Type | None |
Show > Mount Type | None |
Show > Optional Lens | None |
Show > Pan / Tilt / Rotate Range | 0°~360° / 0°~100° / 0°~360° |
Hide > Max. Tilt Angle | 100 |
Hide | Min. Tilt Angle |
Show > Pan Range | None |
Show > Pan Speed | None |
Show > Tilt Range | None |
Show > Tilt Speed | None |
Show > Rotate Range | None |
Show > Sequence | None |
Show > Preset Accuracy | None |
Show > Camera Title | Displayed up to 85 characters |
Show > Direction Indicator | None |
Show > Day & Night | Auto(ICR) |
Show > Backlight Compensation | BLC, WDR, SSDR |
Show > Wide Dynamic Range | 120dB |
Show > Digital Noise Reduction | SSNR |
Show > Digital Image Stabilization | None |
Show > Defog | None |
Show > Motion Detection | 4ea, polygonal zones |
Show > Privacy Masking | 6ea, rectangular zones |
Show > Gain Control | Low / Middle / High |
Show > White Balance | ATW / AWC / Manual / Indoor / Outdoor |
Show > LDC | Support |
Show > Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
Hide > Digital PTZ | None |
Show > Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
Hide > Hallway view | Support |
Show > Analytics | Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
Show > Business Intelligence | None |
Hide > People Counting | None |
Hide > Vehicle Counting | None |
Hide > Queue Management | None |
Hide > Heat Map | None |
Show > Serial Interface | None |
Show > Alarm I/O | Input 1ea / Output 1ea |
Show > Alarm Triggers | Analytics, Network disconnect, Alarm input |
Show > Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset) |
Show > Audio Streaming | None |
Show > Audio In | None |
Hide > Built-in MIC | None |
Show > Audio Out | None |
Hide > Audio Line | None |
Show > Light Type | IR LED (850nm) |
Show > Light Viewable Length | 20m(65.62ft) |
Show > IR Viewable Length | None |
Show > IR Illuminator (Optional) | None |
Show > IR Radiation angle | None |
Show > IR LED | None |
Show > IR Wavelength | None |
Show > IR Operation | None |
Show > Water Removal | None |
Show > Auto Tracking | None |
Show > Coaxial Protocol | None |
Show > Color Palettes | None |
Show > Temperature Detect Range | None |
Show > Temperature Accuracy | None |
Show > Temperature Detection | None |
Show > Additional | None |
Show > Ethernet | RJ-45(10/100BASE-T) |
Show > Video Compression | H.265/H.264: Main/High, MJPEG |
Show > Audio Compression | None |
Show > Smart Codec | WiseStreamⅡ |
Hide > AI Codec | None |
Hide > Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality level control |
Show > Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Show > Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
Show > Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
Show > SIP support (VoIP, Peer-to-peer, SIP/PBX integration) | None |
Show > Security | None |
Show > Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
> Security | |
Show > OS / Firmware Protect | Firmware encryption |
Show > User authentication | Digest Authentication, Prevent brute-force attack |
Show > Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
Show > Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
Show > Access Control | Access control based on IP address |
Show > Data Protect | Authentication information encryption, ZIP compression encryption |
Show > Audit | User Access/System/Event log management |
Show > Device ID | Device Certificate(Hanwha Private Root CA) |
Show > Secure Storage | SDcard partition encrypt |
Show > Security Certificate | None |
Show > Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
Show > Web Viewer | None |
Show > Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
Hide > Storage slot | SD 1slot |
Show > Memory | 512MB RAM, 256MB Flash |
Show > Operating Temperature / Humidity | -30°C~+55°C(-22°F ~ +131°F) / 0~90% RH * Start up should be done at above -20°C |
Show > Storage Temperature / Humidity | -30°C~+60°C(-22°F ~ +140°F) / 0~90% RH |
Show > Certification | IP66, IK10 |
Hide > IK Rating | IK10 |
Show > Input Voltage | PoE(IEEE802.3af, Class3) |
Show > Power Consumption | PoE: Max 7.50W, typical 6.10W |
Show > Color / Material | Dark grey / Aluminum |
Hide > Color | Dark grey |
Hide > Material | Aluminum |
Show > RAL Code | None |
Show > Product Dimensions / Weight | ø70.0×246.0mm(ø4.33×3.39″), 680g(1.50 lb) |
Show > Compatible Conduit hole / Gangbox | None |
Show > Hanging Mount (Dome) | None |
Hide > Skin Cover | None |
Hide > Skin Cover (Dome) | None |
Hide > Weather Cap (Dome) | None |
Hide > Power Module | None |
Show > Backbox | SBO-100B1 |
Show > Network | None |
Show > EMC | None |
Show > Safety | None |
Show > Environment | None |
Show > Video | None |
Show > Detect (25PPM/ 8PPF) | 40.0m(131.20ft) |
Show > Observe (63PPM/ 19PPF) | 16.0m(52.48ft) |
Show > Recognize (125PPM/ 38PPF) | 8.0m(26.24ft) |
Show > Identify (250PPM/ 76PPF) | 4.0m(13.12ft) |
Show > Speed Description | None |
Show > Speed limit | None |
Show > Min. Forward Distance | None |
Show > Max. Forward Distance | None |
Show > Max. Horizontal Angle | None |
Show > Max. Vertical Angle | None |
Show > Horizontal Offset | None |
Show > Camera Height | None |
Show > Lane Coverage | None |
Show > Vehicle Recognition | None |
Show > Available Countries | None |
Show > Solution | None |
Show > Speed Description | None |
Show > Lane Coverage | None |
Show > Speed limit | None |
Show > Min. Forward Distance | None |
Show > Max. Forward Distance | None |
Show > Max. Horizontal Angle | None |
Show > Max. Vertical Angle | None |
Show > Horizontal Offset | None |
Show > Camera Height | None |
Show > Vehicle Recognition | None |
Show > Available Countries | None |
