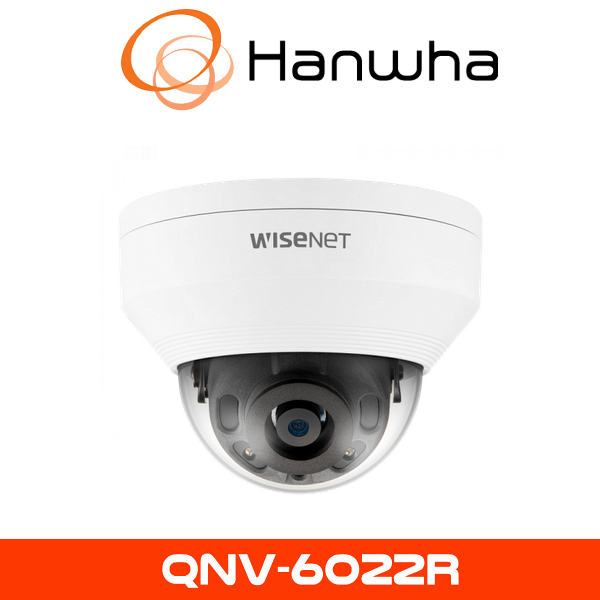

Hanwha QNV-6022R Vandal Dome Camera



Hanwha QNV-6022R

The Hanwha QNV-6022R is a powerful 2MP IR vandal-resistant dome camera designed to provide dependable and detailed surveillance in various challenging environments. Equipped with a 2-megapixel image sensor and a fixed 4mm lens, this camera offers high-definition video resolution ideal for comprehensive monitoring of critical areas.

Description

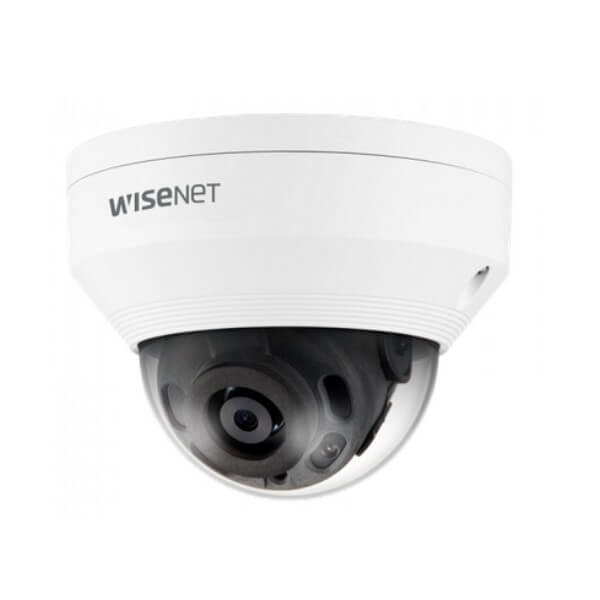

Hanwha QNV-6022R Vandal Dome Camera

Hanwha QNV-6022R Overview The Hanwha QNV-6022R vandal-resistant dome camera is specifically engineered for robust and reliable surveillance in demanding environments. Combining excellent video quality, durability, and intelligent analytics, the QNV-6022R effectively meets modern security challenges, providing versatile protection across numerous applications.

Exceptional Image Quality: The QNV-6022R features a 2-megapixel CMOS sensor, delivering detailed and high-resolution video with clarity up to 1920×1080 pixels. Such crisp and clear image quality is vital for accurately monitoring sensitive areas and identifying critical details such as faces, license plates, and other essential evidence.

Fixed Lens for Optimal Surveillance: Equipped with a fixed 4mm lens, the camera offers an optimal viewing angle (87° horizontal field of view) for monitoring entrances, corridors, offices, and specific areas where detailed coverage is critical. This ensures clarity and focused coverage, minimizing distortion and maximizing effectiveness.

Superior Night Vision: Integrated high-performance infrared LEDs provide night vision capabilities up to 25 meters, ensuring uninterrupted surveillance in complete darkness. The camera’s intelligent infrared system automatically adjusts to varying lighting conditions, maintaining high-quality video surveillance 24/7.

Robust and Durable Design: The QNV-6022R is certified IP66 weatherproof and IK10 vandal-resistant, providing reliable operation even under extreme environmental conditions or physical threats. Its robust housing ensures the camera remains operational, making it ideal for outdoor applications, high-risk zones, and public spaces where vandalism and harsh weather conditions are concerns.

Intelligent Analytics Enhanced with smart video analytics, the QNV-6022R supports advanced security features such as:

  • Motion Detection: Detects and alerts on movement within defined areas.
  • Virtual Line Detection: Monitors and alerts when predefined lines are crossed.
  • Intrusion Detection: Immediately notifies of unauthorized access to designated areas.
  • Tampering Alarms: Alerts operators if camera tampering is detected.

SPECIFICATION

Video
Imaging Device 1/2.8″ 2MP CMOS
Resolution 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. Illumination Color: 0.03Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
Lens
Focal Length (Zoom Ratio) 4.0mm fixed focal
Max. Aperture Ratio F1.6
Angular Field of View H: 87.6 / V: 46.4° / D: 104.5°
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Audio In Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
IR Viewable Length 25m(82.02ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C
Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 7.40W, typical 6.00W 12VDC: Max 6.40W, typical 5.10W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø120.3×91.7mm(Ø4.74×3.61″), 510g(1.12 lb)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 40.0m(131.36ft)
Observe (63PPM/ 19PPF) 16.0m(52.54ft)
Recognize (125PPM/ 38PPF) 8.0m(26.27ft)
Identify (250PPM/ 76PPF) 4.0m(13.14ft)
