Description

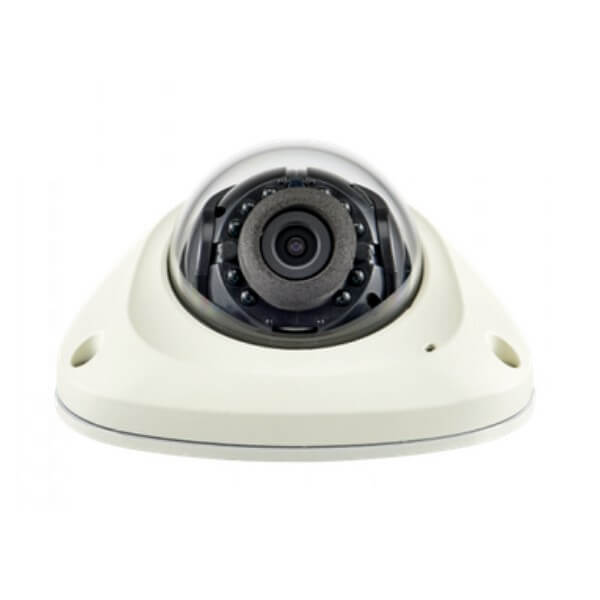

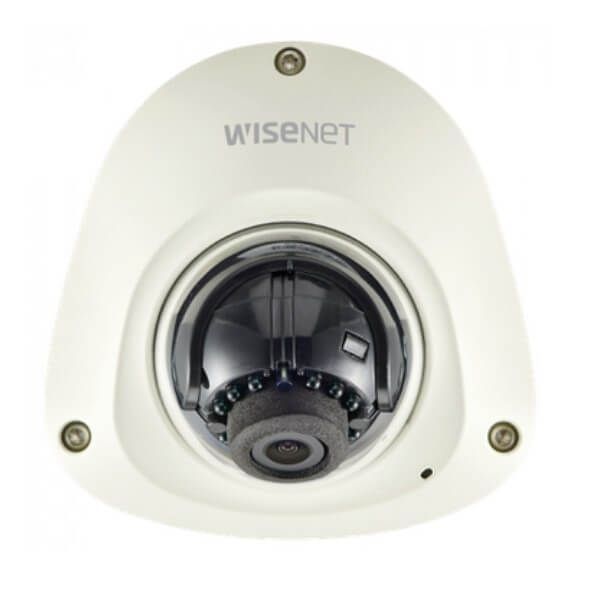

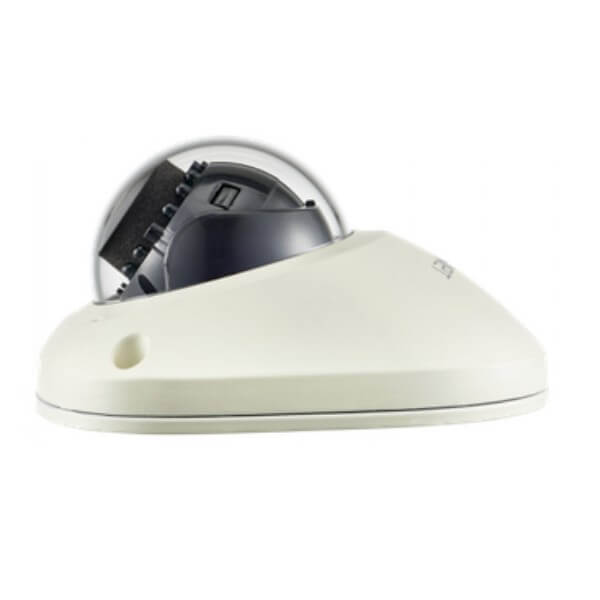

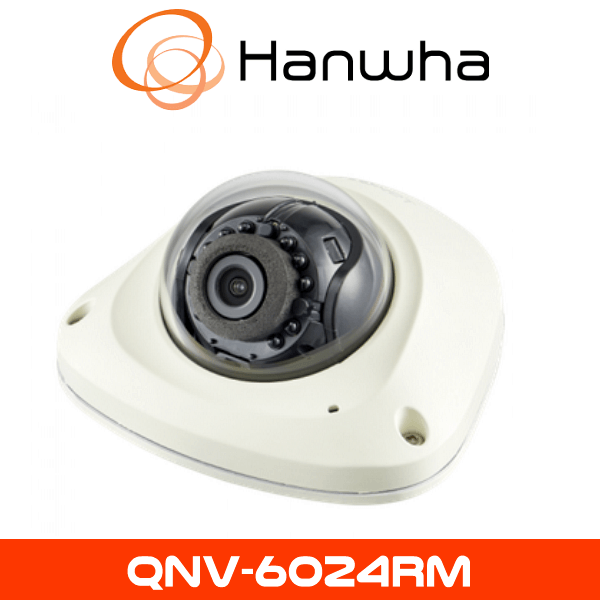

Hanwha QNV-6024RM CCTV Camera
The Hanwha QNV-6024RM CCTV Camera, previously known as Samsung CCTV, provides robust surveillance ideal for both indoor and outdoor installations. Designed for reliability, durability, and clarity, this camera features a 2 Megapixel resolution delivering detailed, high-quality video under diverse lighting conditions.
Crystal Clear Image Quality
The Hanwha QNV-6024RM CCTV Camera captures vivid video with its 2MP (1920 x 1080) resolution. Equipped with advanced image processing technologies, including wide dynamic range (120dB WDR), it effectively balances contrasting light conditions to deliver clear footage even in challenging lighting scenarios, such as entrances or windows exposed to direct sunlight.
Superior Night Vision
With built-in IR LEDs, the Hanwha QNV-6024RM CCTV ensures clear and reliable monitoring even in complete darkness, providing effective coverage up to 20 meters. This capability makes it highly suitable for parking lots, entry points, alleys, and perimeters where constant surveillance is essential.
Robust Vandal-Resistant Design
Rated IK10 for vandal resistance, the QNV-6024RM is designed to withstand physical impacts, ensuring uninterrupted surveillance in high-risk environments. Additionally, its IP66 weatherproof rating protects against dust, rain, and extreme weather, ensuring reliability in outdoor applications.
Easy Installation and Maintenance
The Hanwha QNV-6024RM CCTV Camera comes with an integrated PoE (Power over Ethernet) feature, simplifying cabling and installation. Maintenance and updates can be easily managed remotely, streamlining operational efficiency.
Advanced Analytics
Hanwha CCTV integrates advanced motion detection and tampering alerts, improving the response time to potential security threats. Smart features significantly reduce false alarms and enhance the camera’s efficiency in real-world security scenarios.
Optimized Storage
Using H.265 compression technology, this CCTV camera ensures efficient bandwidth usage and significant storage savings without compromising video quality. Users can store longer recordings with less storage space, ideal for long-term surveillance needs.
Key Specifications:
- 2MP Resolution (1920×1080)
- Built-in IR LEDs (20m range)
- IK10 vandal-resistant, IP66 weatherproof
- 120dB Wide Dynamic Range
- PoE support
- H.265 video compression
- Advanced analytics (motion detection, tampering alerts)
Ideal Use Cases:
The Hanwha QNV-6024RM CCTV Camera is ideally suited for:
- Commercial premises (retail stores, malls, offices)
- Educational institutions (schools, colleges)
- Residential complexes
- Public spaces (parks, parking lots, transportation hubs)
- High-risk environments (banks, ATMs)
SPECIFICATION
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 94.8˚ / V: 49.3˚ / D: 114.3˚ |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | ±5° / 0°~67° / ±90° |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Direction Indicator | None |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Audio In | Selectable(mic in/line in/built-in mic) |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 15m(49.21ft) |
| IR Illuminator (Optional) | None |
| Water Removal | None |
| Auto Tracking | None |
| Coaxial Protocol | None |
| Color Palettes | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | Metal shielded M12 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2017 EN45545-2, NFPA130, BSS7239, E-mark |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 6.70W, typical 5.00W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| RAL Code | None |
| Product dimensions / weight | 98.9×52.0x100.0mm(3.89×2.05×3.94″), 295g(0.65 lb) |
| Conduit hole | None |
| Hanging mount(Dome) | None |
| Skin cover(Dome) | None |
| Weather cap(Dome) | None |
| Power module | None |
| Backbox | None |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 35.3m(115.84ft) |
| Observe (63PPM/ 19PPF) | 14.1m(46.33ft) |
| Recognize (125PPM/ 38PPF) | 7.1m(23.17ft) |
| Identify (250PPM/ 76PPF) | 3.5m(11.58ft) |
