Description

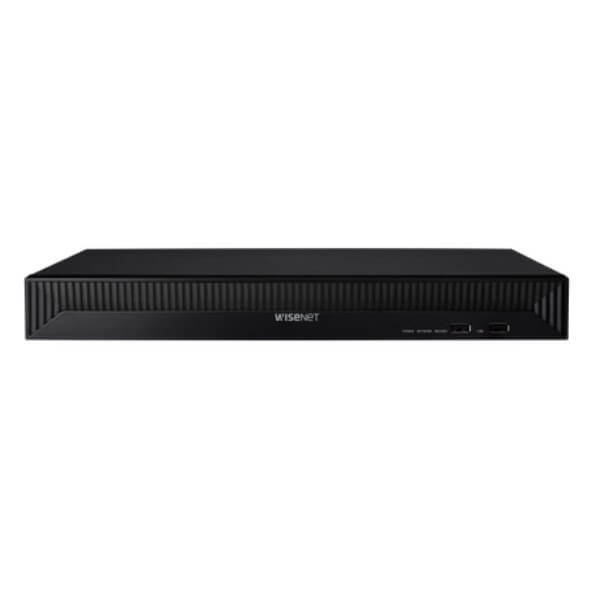

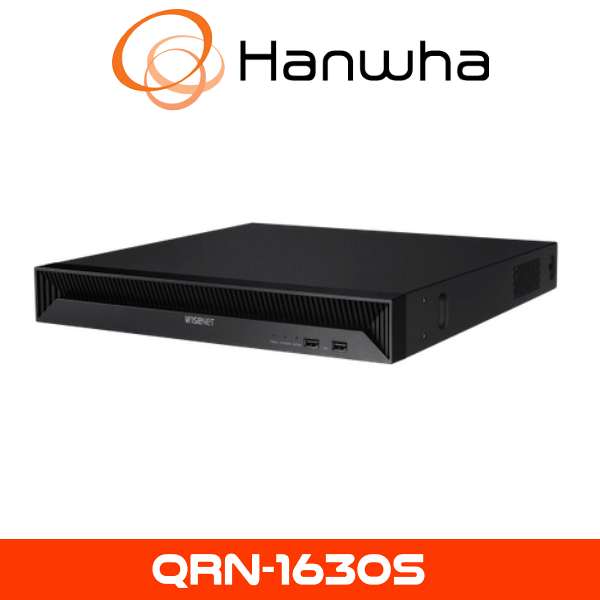

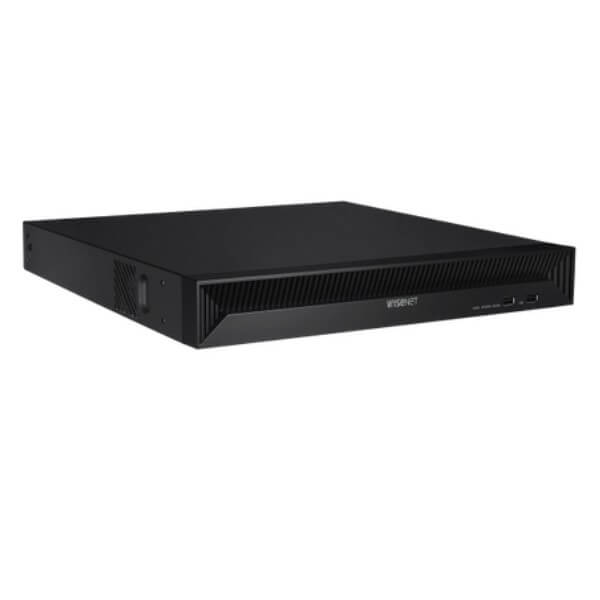

Hanwha QRN-1630S CCTV Network Video Recorder
The Hanwha QRN-1630S CCTV Network Video Recorder, previously known as Samsung CCTV, provides a reliable and robust surveillance recording solution, supporting up to 16 channels. Engineered with advanced technologies and superior performance in mind, this NVR optimizes security management and video storage for diverse applications.
High-Resolution Recording
The Hanwha QRN-1630S ensures seamless and efficient management of up to 16 CCTV cameras with high-resolution recording capabilities. It provides clear footage vital for precise monitoring and incident analysis.
Advanced H.265 Compression
Hanwha QRN-1630S employs advanced H.265 video compression technology, significantly reducing storage and bandwidth usage compared to traditional methods. This efficient compression enables extended recording periods and efficient management of storage resources without compromising video clarity or resolution.
Advanced H.265 Compression
Hanwha QRN-1630S employs advanced H.265 video compression technology, significantly reducing storage and bandwidth usage compared to traditional methods. This efficient compression enables extended recording periods and efficient management of storage resources without compromising video clarity or resolution.
Flexible Display Options
Equipped with HDMI and VGA outputs, the Hanwha QRN-1630S ensures compatibility with a wide range of display monitors, facilitating live monitoring and review. Its built-in PoE (Power over Ethernet) ports simplify camera installation by providing both power and data through a single cable, significantly reducing installation complexity and costs.
Robust Security Analytics
This NVR provides advanced analytics such as motion detection, video tampering alerts, and remote monitoring capabilities. Real-time alerts ensure rapid response to potential security breaches, enhancing overall surveillance effectiveness.
Extensive Storage Capability
The Hanwha QRN-1630S supports up to 4 HDD slots, each capable of accommodating up to 6TB, offering substantial storage for continuous recording. This extensive capacity is ideal for environments requiring long-term, uninterrupted surveillance storage.
User-Friendly Interface
The QRN-1630S features HDMI and VGA outputs, ensuring compatibility with a wide range of display monitors. Its intuitive user interface allows easy management, live monitoring, and playback, making it straightforward for any security operator to navigate.
Key Specifications:
- Supports up to 16 channels
- Recording resolution up to 8MP
- H.265/H.264 compression
- HDMI/VGA video outputs
- Built-in PoE ports
- Advanced security analytics
- 4 HDD slots, each supporting up to 6TB HDD
- User-friendly interface and remote access
SPECIFICATION
| Display | ||
| Network camera | ||
| Inputs | Max. 16CH | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | HDMI1: 3840×2160(30Hz), HDMI2: 1920×1080(60Hz) | |
| Multi Screen Display | Clone Mode : Dynamic layout Expand Mode : HDMI1 Dynamic layout, HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
| Resolution | [Local Monitor] 8M(60fps), 1080p(240fps), 720P(480fps), D1(960fps) |
|
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 128Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
|
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 40CH(Local 16CH, Remote 8CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 2ea(Max. 20TB) | |
| Backup | ||
| File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 128Mbps | |
| Audio | ||
| Input/Output | 16 CH(network) | |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
| Web viewer | ||
| Supported OS | Windows 10, macOS 11 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS |
|
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| Control | Via GUI, Webviewer | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback |
|
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front | ||
| Indicator | Power, Record, Network | |
| Storage | OK | |
| HDMI | 2EA | |
| Audio | Out 1EA (RCA output) | |
| Ethernet | PoE+ RJ-45 16EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 2EA(Front 2 x USB 2.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Keyboard, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | Max. 200W(682 BTU with 2HDD, PoE ON) | |
| PoE Budget | 130W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 370.0 x 50.7 x 320 mm (14.6 x 2.0 x 12.6 inch) | |
| Weight | 2.87Kg (6.33 lb) | |
