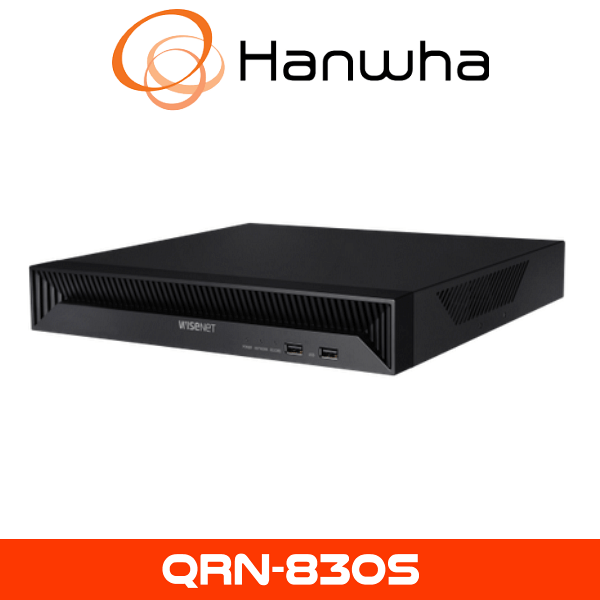

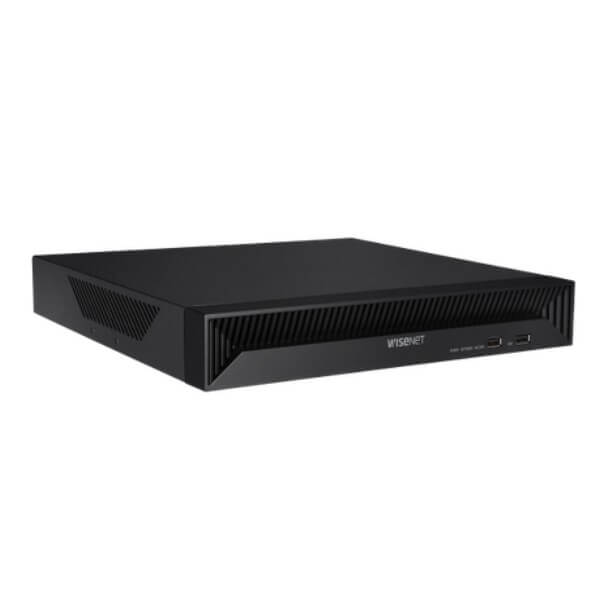

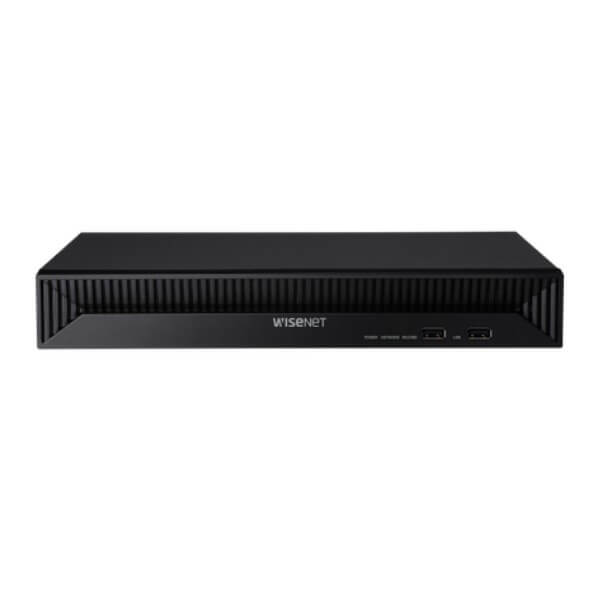

Hanwha QRN-830S CCTV Network Video Recorder
The Hanwha QRN-830S CCTV Network Video Recorder, previously known as Samsung CCTV, is designed to deliver robust and reliable surveillance recording solutions tailored specifically for small-to-medium scale security installations. Featuring seamless integration and ease of use, the QRN-830S is perfect for businesses and residential security systems requiring dependable and straightforward video management.
High-Resolution Recording
With support for resolutions up to 8MP, the QRN-830S provides exceptionally clear and detailed video, essential for accurate identification and effective incident management. The clarity and precision offered by high-resolution recording make it ideal for critical surveillance applications where every detail matters.
Advanced Video Compression
The Hanwha QRN-830S utilizes advanced H.265 video compression, which significantly optimizes storage and reduces bandwidth requirements without sacrificing video quality. This powerful compression technology helps extend recording duration and improves overall efficiency, enabling continuous monitoring and reliable long-term storage.
Easy Installation with PoE
The QRN-830S comes equipped with built-in PoE (Power over Ethernet) ports, providing power and network connectivity to cameras via a single Ethernet cable. This drastically simplifies installation, reduces associated costs, and ensures fast, clutter-free setups.
Robust Security Analytics
Advanced security analytics included in the QRN-830S offer intelligent surveillance functions such as motion detection, tampering alerts, and remote monitoring capabilities. These real-time analytics help operators swiftly detect potential threats, improving response times and enhancing security effectiveness.
Multiple Display Options
Featuring both HDMI and VGA video outputs, the Hanwha QRN-830S ensures compatibility with various display monitors, allowing flexible and straightforward video management. Operators can conveniently manage live viewing, playback, and system settings, enhancing the surveillance system’s accessibility and operational efficiency.
Key Specifications:
- 8-channel recording capability
- Supports camera resolutions up to 8MP (4K)
- H.265/H.264 compression
- HDMI/VGA video outputs
- Built-in PoE ports for easy installation
- Advanced analytics (motion detection, tampering)
- Supports up to 2 HDD slots (6TB each)
- User-friendly remote management interface
Specifications
| Display | ||
| Network camera | ||
| Inputs | Max. 8CH | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | HDMI :3840×2160(30Hz) | |
| Multi Screen Display | [Single Monitor] Dynamic layout [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
| Resolution | [Local Monitor] 8M(60fps), 1080p(240fps), 720P(240fps), D1(240fps) |
|
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 80Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
|
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 32CH(Local 8CH, Remote 8CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 1ea(Max. 6TB) | |
| Backup | ||
| File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 80Mbps | |
| Audio | ||
| GUI | 8 CH(network) | |
| Web | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
| Web viewer | ||
| Supported OS | Windows 10, macOS 11 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS |
|
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| Control | Via GUI, Webviewer | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback |
|
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front | ||
| Indicator | Power, Record, Network | |
| Storage | OK | |
| Reset | Support | |
| HDMI | 1EA | |
| Ethernet | PoE+ RJ-45 8EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps) | |
| USB | 2EA(Front 2 x USB 2.0) | |
| Power inlet | DC Adaptor | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Keyboard, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 54VDC / 1.55A | |
| Power Consumption | Max 84W (287 BTU with 1HDD, PoE ON) | |
| PoE Budget | 65W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 300 x 47.6 x 238.9 mm (11.8 x 1.9 x 9.4 inch) | |
| Weight | 1.32Kg (2.91 lb) | |
