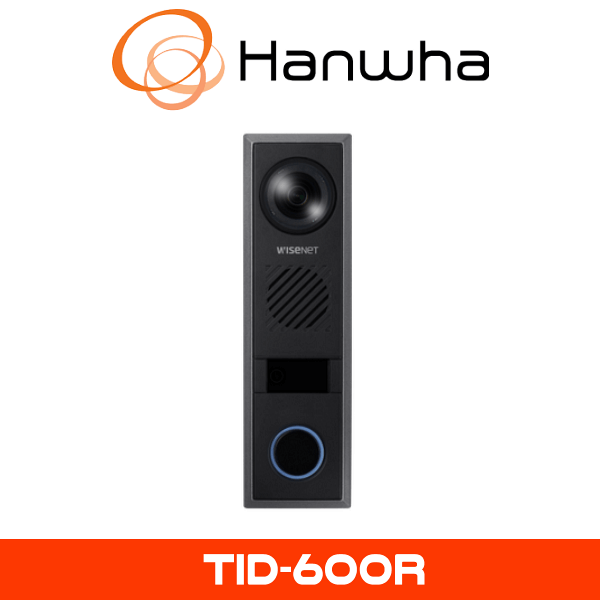

Hanwha TID-600R Intercom CCTV Camera
The Hanwha TID-600R Intercom CCTV Camera, previously known as Samsung CCTV, is a high-performance video intercom system designed for secure entry management. Featuring Full HD resolution, infrared night vision, and two-way audio, this camera is ideal for access control in commercial buildings, residential complexes, and high-security areas.
High-Resolution Full HD Video
The Hanwha TID-600R delivers 2MP Full HD video quality, ensuring crystal-clear imaging for facial recognition and entry verification. The wide-angle field of view enhances monitoring efficiency, reducing blind spots.
Infrared Night Vision
Equipped with IR night vision, the TID-600R enables clear video capture in low-light and nighttime conditions, ensuring 24/7 visibility for secure entry points.
Infrared Night Vision
Equipped with IR night vision, the TID-600R enables clear video capture in low-light and nighttime conditions, ensuring 24/7 visibility for secure entry points.
Two-Way Audio Communication
With a built-in microphone and speaker, the TID-600R supports two-way audio communication, allowing seamless interaction between visitors and security personnel. Echo cancellation technology ensures clear voice transmission.
AI-Powered Intelligent Analytics
The TID-600R includes AI-driven analytics such as motion detection, facial recognition, tampering alerts, and virtual line crossing. These intelligent features enhance security by detecting unauthorized access attempts.
Vandal-Resistant and Weatherproof Housing
Designed for durability, the TID-600R has an IK10 vandal-resistant rating and an IP65 weatherproof enclosure, ensuring reliable performance in outdoor and high-risk environments.
Efficient Bandwidth and Storage Management
Using H.265 video compression, the TID-600R minimizes bandwidth and storage usage while maintaining superior video quality, making it an efficient solution for continuous surveillance.
Easy Installation and Integration
Supporting Power over Ethernet (PoE), the TID-600R simplifies installation with a single cable for power and data. It is ONVIF-compliant, allowing seamless integration with major access control and video management systems (VMS).
Key Specifications:
- Resolution: 2MP Full HD (1920 × 1080)
- Infrared Night Vision: Clear monitoring in low-light conditions
- Two-Way Audio: Built-in microphone and speaker with echo cancellation
- AI-Powered Analytics: Facial recognition, motion detection, virtual line crossing, tampering alerts
- Video Compression: H.265/H.264/MJPEG
- Vandal-Resistant Rating: IK10 for impact protection
- Weatherproof Rating: IP65 for outdoor use
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -30°C to +55°C (-22°F to +131°F)
- Network Connectivity: Ethernet 10/100 Base-T
- ONVIF Compliance: Compatible with major access control and VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264 : Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.018lux (F1.6, 1/30sec) BW: 0 Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.6mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 180˚ / V: 114˚ / D: 180˚ |
| Min. Object Distance | 0.3m(0.98ft) |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | None |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Azimuth | None |
| Auto Tracking | None |
| Operational | |
| IR Viewable Length | 5m |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | WDR(150dB) |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | None |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | None |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Shock detection, Sound classification |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | Input 2ea / Output 1ea , Relay out 1ea (12VDC Max. 550mA with 2A adapter) Tampering switch, Touchless call |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback |
| Audio Streaming | Two-way/one-way selectable, Full duplex, Echo cancellation and noise reduction |
| Audio In | Built-in mic |
| Audio Out | Built-in speaker: 85dB at 0.5m(1.64ft) |
| IR Illuminator (Optional) | None |
| Wiper | None |
| Coaxial Protocol | None |
| Video Transmission Distance | None |
| Radiometry | |
| Temperature detect range | None |
| Temperature accuracy | None |
| Temperature detection | None |
| Additional | None |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz Opus 8/16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SRTP, SIP 2.0(RFC 3261 and companion RFCs) |
| SIP support (VoIP, Peer-to-peer, SIP/PBX integration) | Tested with Cisco, Grandstream, Yealink VoIP phones and Asterisk PBX software |
| Security | HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication(EAP-TLS, EAP-LEAP), Device certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2GB RAM |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F ~ +131°F) / Less than 95% RH |
| Storage Temperature / Humidity | -50°C~+55°C / Less than 95% RH |
| Certification | IP65, IK08, NEMA4X, Safety(UL), EMC(FCC, CE) |
| Input Voltage | PoE, 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 9.1W 12VDC: Max 17.6W, typical 7W * 12VDC power consumption includes 12VDC/550mA relay out. |
| Mechanical | |
| Color / Material | Dark gray / Aluminium |
| RAL Code | RAL7022 |
| Product dimensions / weight | 49(W)x165(H)x48(D)mm(1.93×6.50×1.89″) / 490g(1.08lb) |
| Conduit hole | None |
| Hanging mount | None |
| Skin cover | SBC-165W |
| Weather cap | None |
| Power module | None |
| Backbox | None |
| DORI | |
| Detect (25PPM/ 8PPF) | 25.04m(82.15ft) |
| Observe (63PPM/ 19PPF) | 10.02m(32.87ft) |
| Recognize (125PPM/ 38PPF) | 5.01m(16.44ft) |
| Identify (250PPM/ 76PPF) | 2.50m(8.20ft) |
