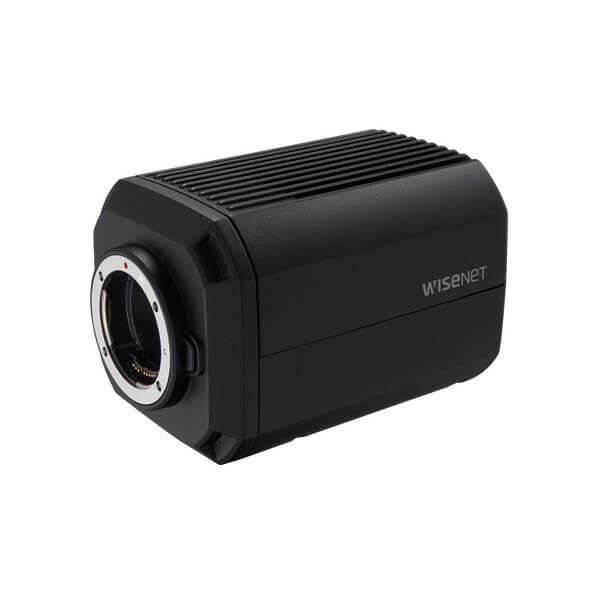

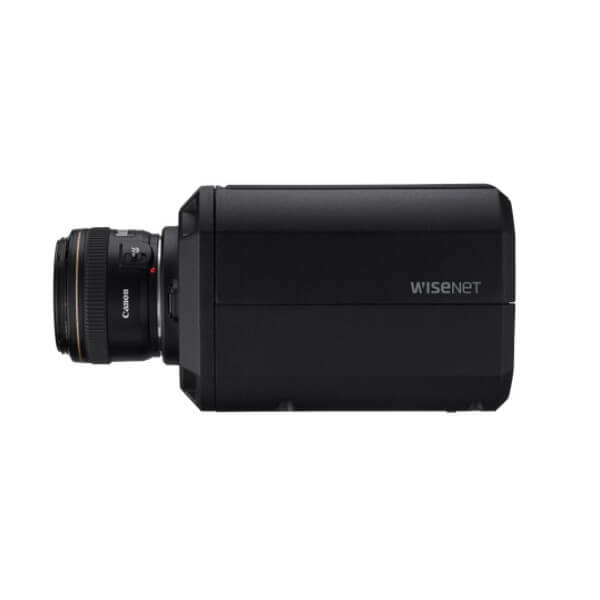

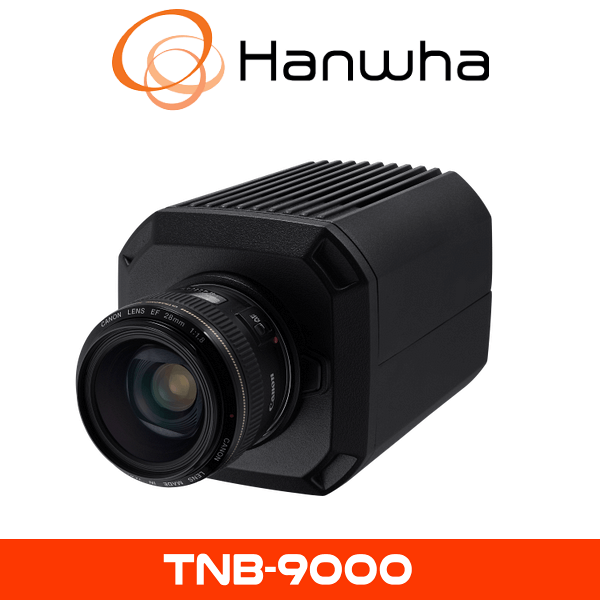

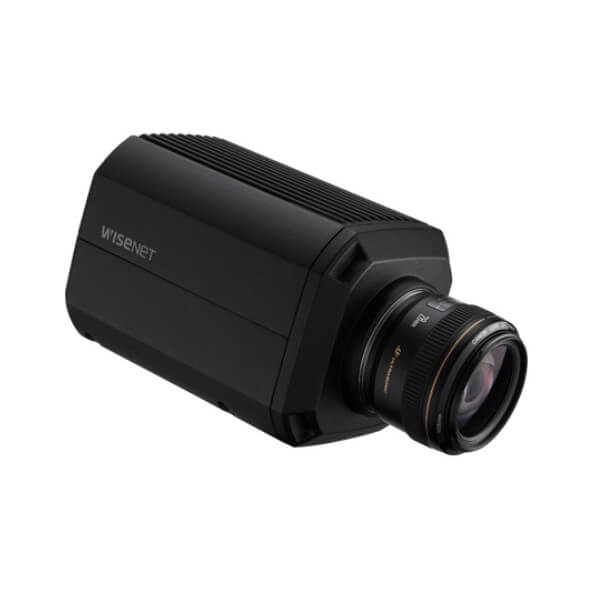

Hanwha TNB-9000 8K UHD CCTV Camera



Hanwha TNB-9000 8K CCTV Camera

The Hanwha TNB-9000 8K CCTV Camera delivers exceptional ultra-high-definition video quality with AI-driven analytics, H.265 compression, and robust cybersecurity features. It is ideal for critical infrastructure, city surveillance, and high-security applications where precision and detail are essential.

Description

Hanwha TNB-9000 8K UHD CCTV Camera

The Hanwha TNB-9000 8K UHD CCTV Camera, previously recognized as Samsung CCTV, is a revolutionary surveillance solution delivering ultra-high-definition imaging with an 8K (33MP) resolution. Designed for large-scale security applications requiring extreme detail and precision, this camera provides cutting-edge technology to ensure unparalleled monitoring performance.

8K Ultra-High-Resolution Imaging

Equipped with an 8K (33MP) sensor, the TNB-9000 captures incredibly detailed images, ensuring superior clarity for large-area surveillance. This high-resolution capability allows for zooming into footage while maintaining sharpness, making it an ideal choice for forensic-level monitoring.

AI-Powered Intelligent Analytics

Featuring advanced AI-based analytics, the TNB-9000 can detect and classify objects such as humans, vehicles, and unusual movements. With virtual line crossing, loitering detection, and facial recognition capabilities, it significantly enhances security monitoring efficiency.

H.265 Video Compression for Efficiency

Utilizing H.265 compression technology, the TNB-9000 optimizes bandwidth and storage consumption while preserving high-quality video. This ensures longer recording durations and cost-effective storage management.

Cybersecurity and Data Protection

Built with Hanwha’s proprietary cybersecurity technology, the TNB-9000 includes encryption and secure authentication to protect video data from unauthorized access and cyber threats, ensuring the integrity of surveillance operations.

Flexible Integration and Installation

The TNB-9000 supports Power over Ethernet (PoE) and is ONVIF-compliant, allowing seamless integration with existing security infrastructure and video management systems. Its robust build makes it suitable for both indoor and outdoor high-resolution surveillance setups.

Key Specifications:

  • Resolution: 8K (33MP) Ultra HD (7680 × 4320)
  • AI-powered analytics: Object classification, motion detection, loitering detection, virtual line crossing, facial recognition
  • Video compression: H.265/H.264/MJPEG
  • Cybersecurity: Secure encryption and authentication features
  • Lens compatibility: C/CS mount (various lens options available)
  • Power source: Power over Ethernet (PoE) and 12V DC
  • Operating temperature: -10°C to +50°C (14°F to 122°F)
  • Network connectivity: Ethernet 10/100/1000 Base-T
  • ONVIF compliance: Compatible with major VMS platforms

Specifications:

Video
Imaging Device Diagonal 43.3mm Full-frame CMOS
Resolution 7680×4320, 7360×4128, 6016×3384, 6016×4008, 5472×3648, 4768×3184, 4608×2592, 3840×2160, 1920×1080, 1280×1024, 1280×960, 1280×720,
1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
Max. Framerate H.265/H.264: 32MP(8K) @ Max. 15fps (Mode 0)
H.265/H.264: 24MP @ Max. 20fps (Mode 1)
H.265/H.264: 15MP @ Max. 30fps (Mode 2)
H.265/H.264: 8MP(4K) @ Max. 60fps (Mode 3)
Min. Illumination Color : 0.015Lux(F1.4, 1/30sec)
B/W : 0.0015Lux(F1.4, 1/30sec)
Video Out HDMI: 1080p@30/25fps (60/50Hz)
Lens
Angular Field of View Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM) : Horizontal field of view: 8K 62.1°
Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM) : Horizontal field of view: 8K 44.5°
Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM) : Horizontal field of view: 8K 31.6°
Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM) : Horizontal field of view: 8K 19.2°
Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM) : Horizontal field of view: 8K 16.1°
Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70?200mm f/2.8L USM) : Horizontal field of view: 8K 23.2° ~ 8.3°
Focus Control Simple focus
Lens Type Canon EF mount Lens
Mount Type Canon EF mount
Optional Lens Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM)
Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM)
Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM)
Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM)
Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM)
Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM)
Operational
Camera Title Displayed up to 75 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, DWDR
Digital Noise Reduction SSNRⅤ
Motion Detection 8ea, 8point polygonal zones (in 32MP(8K) resolution only)
Privacy Masking 6ea, Rectangular
– Color: Grey/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5 ~ 1/12,000sec)
Analytics – Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot per object
– Analytics events based on AI engine : object detection, Directional detection, Enter/Exit, Loitering, Virtual line
– Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification
Serial Interface RS-485(Samsung-T, Pelco-D/P)
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet Metal shielded RJ-45(10/100/1000 BASE-T), SFP slot(100/1000Mbps)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256MB
Memory 4096MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity 0°C ~ +45°C(32°F ~ +122°F) / Less than 90% RH
Storage Temperature / Humidity -40°C ~ +65°C(-40°F ~ +140°F) / Less than 90% RH
Certification Safety(UL 60950-1),
EMC(FCC, CE, KC)
EN 50130-4, EN 55032 Class A, EN 61000-6-3, EN 61000-3-2,
EN 61000-3-3, EN 61000-6-1, FCC Part 15 Subpart B Class A,
IC ICES-003 Class A
Input Voltage HPoE(IEEE802.3bt, Class5), 12VDC
Power Consumption PoE: Max 30W, typical 20W
12VDC: Max 26W, typical 18W
Mechanical
Color / Material Black / Aluminum
Product Dimensions / Weight 120(W)x118.1(H)x179(D)mm, 2.1Kg(4.55 lb)
