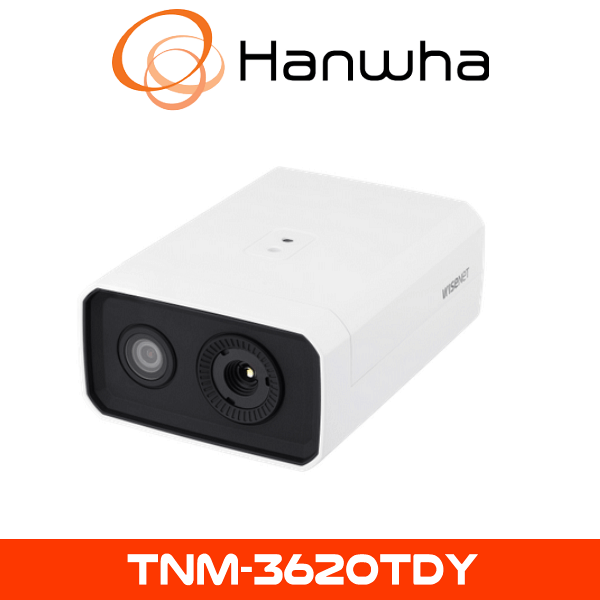

Hanwha TNM-3620TDY CCTV Camera
The Hanwha TNM-3620TDY CCTV Camera, previously recognized as Samsung CCTV, is an advanced dual-spectrum surveillance solution designed for high-risk security applications. Integrating both thermal and optical imaging with AI-based analytics, this camera delivers superior detection accuracy, making it ideal for perimeter security, industrial safety, and critical infrastructure protection.
Dual-Spectrum Imaging for Maximum Security
The TNM-3620TDY is equipped with both thermal and visible light sensors, enabling accurate detection regardless of lighting conditions. This dual-spectrum capability enhances object recognition and threat assessment, making it an essential tool for 24/7 surveillance.
AI-Enhanced Intelligent Analytics
The TNM-3620TDY features AI-based analytics for object classification, motion detection, loitering alerts, and virtual line crossing. These advanced capabilities reduce false alarms and improve situational awareness, enhancing overall security operations.
Rugged and Weatherproof Build
Engineered for extreme environments, the TNM-3620TDY features an IP66-rated weatherproof and IK10 vandal-resistant housing. This ensures continuous operation in harsh conditions, including dust, rain, and fluctuating temperatures.
Optimized Bandwidth and Storage
With H.265 video compression technology, the TNM-3620TDY significantly reduces bandwidth consumption and storage requirements while maintaining high-quality image resolution. This allows for cost-effective long-term video retention.
Seamless Installation and Integration
Supporting Power over Ethernet (PoE), the TNM-3620TDY simplifies installation with a single cable for both power and data. It is fully ONVIF-compliant, ensuring smooth integration with leading video management systems (VMS) for efficient security operations.
Key Specifications:
- Dual-spectrum imaging: Thermal + Optical sensor combination
- Thermal imaging resolution: VGA (640×480)
- Optical sensor resolution: 2MP Full HD
- AI-powered analytics: Object classification, motion detection, loitering alerts, virtual line crossing, intrusion detection
- Intelligent event detection: Tampering alerts, unauthorized access detection
- Environmental protection: IP66 weatherproof & IK10 vandal-resistant housing
- Video compression: H.265/H.264/MJPEG
- Power source: Power over Ethernet (PoE)
- Operating temperature: -40°C to +60°C (-40°F to +140°F)
- Network connectivity: Ethernet 10/100 Base-T
- ONVIF compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | Uncooled micro bolometer (320×240) |
| Resolution | 1280×960, 640×480, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| NETD | ＜60mK |
| Pixel Size | 12㎛ |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB : Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.7mm fixed focal |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View | H: 50.0°, V: 36.4°, D: 65.3° |
| Min. Object Distance | 1m(3.28ft) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Video Rotation | Flip, Mirror |
| Analytics | EBT mode : Temperature detection, Blackbody error Normal mode : Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection, Temperature detection *EBT : Estimated Body Temperature |

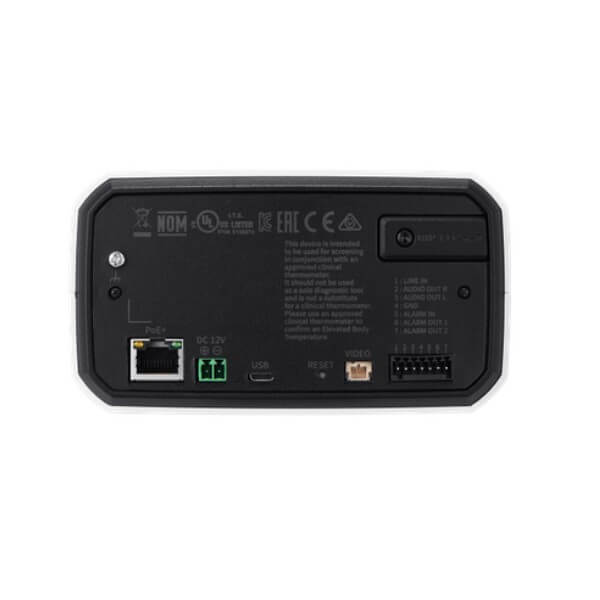

| Alarm I/O | Input 1ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover (normal mode only) Audio playback Beep alarm (EBT mode only) |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Color Palettes | EBT Mode (thermal face detection) : Whitehot EBT (visible face detection) & Normal mode : Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
| Radiometry | |
| Temperature Detect Range | Estimated body temperature mode : 30~45°C(86°F~113°F) Normal mode : -20~+130°C(-4°F~+266°F) |
| Temperature Accuracy | Estimated body temperature mode : ±0.5°C(±0.3°C with Blackbody) Normal mode : ±5°C(≤100°C), ±20%(>100°C) |
| Temperature Detection | 3ea rectanguler (normal mode) |
| Additional | Hybrid palettes (normal mode), Spot temperature reading (normal mode) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 6 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 4608MB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | EBT mode : +10°C~+35°C(+50°F~+95°F) / Less than 95% RH Normal mode : -10°C~+55°C(+14°F~+131°F) / Less than 95% RH |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F~+140°F) / Less than 95% RH |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption | PoE+: Max. 17.0W, typical 12.5W 12VDC: Max. 14.5W, typical 11.0W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | 135(W)x75(H)x188.5(D)mm, (5.31×2.95×7.42″), 1.7kg(3.77lb) |
