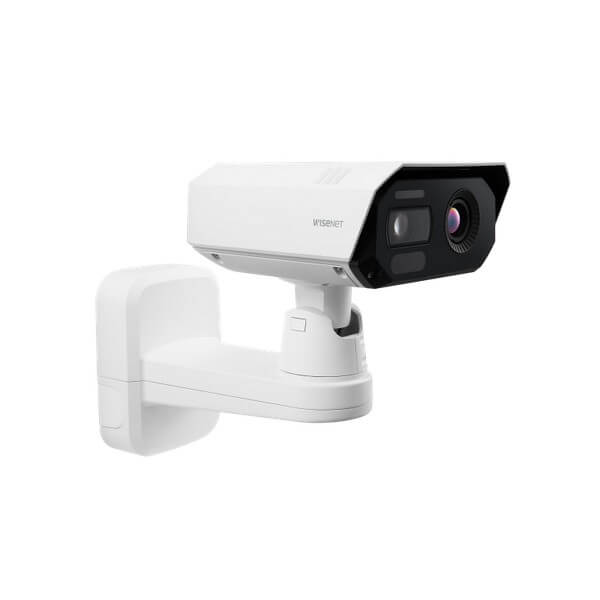

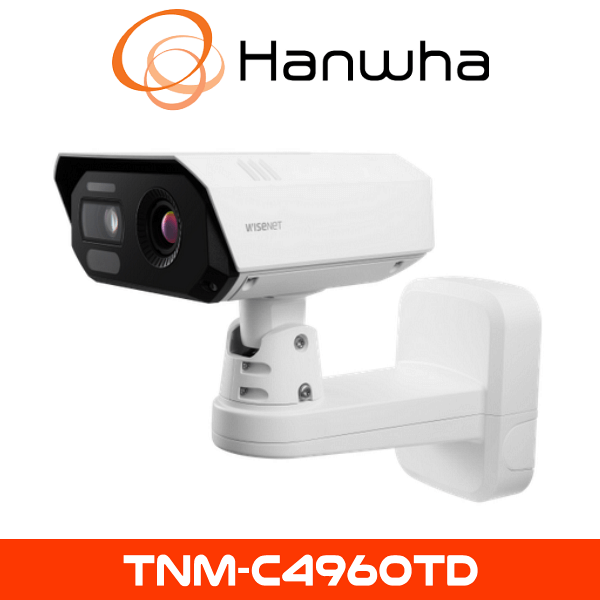

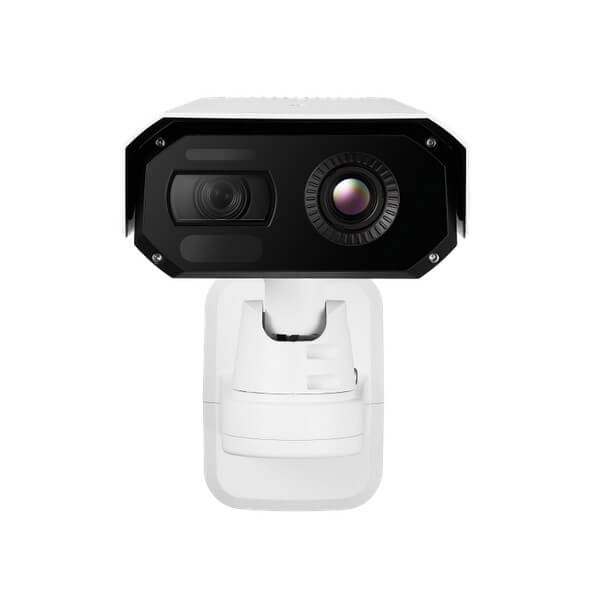

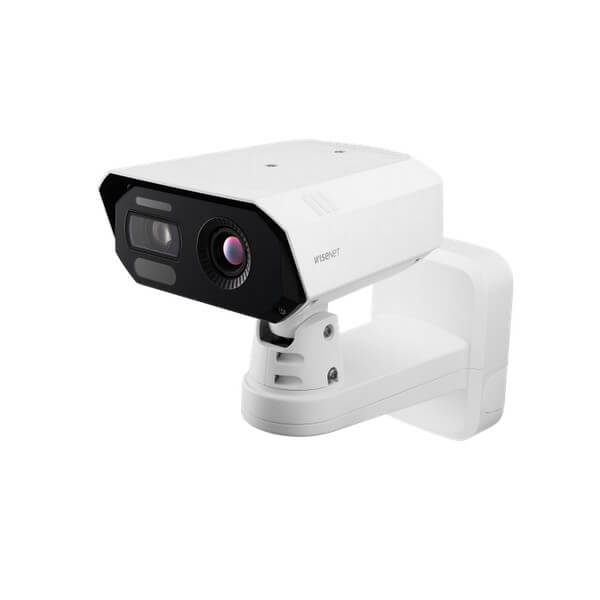

Hanwha TNM-C4960TD Thermal CCTV Camera
The Hanwha TNM-C4960TD Thermal CCTV Camera, previously known as Samsung CCTV, is a cutting-edge security solution designed for high-risk and mission-critical surveillance applications. Equipped with dual-spectrum technology that combines thermal and optical sensors, along with AI-powered analytics, this camera provides unmatched detection accuracy and situational awareness in industrial, government, and border security environments.
Dual-Spectrum Imaging for Maximum Detection
The TNM-C4960TD features a high-resolution thermal sensor and a 4K optical sensor, enabling unparalleled detection capabilities. The combination of thermal and visible light imaging ensures reliable monitoring regardless of lighting, weather, or environmental conditions.
AI-Enhanced Intelligent Analytics
Integrated AI-based analytics empower the TNM-C4960TD to differentiate between humans, vehicles, and objects, significantly reducing false alarms. Features such as motion detection, virtual line crossing, loitering detection, and facial recognition enhance security operations, making it a powerful tool for proactive threat detection.
Rugged and Weatherproof Build
Designed for challenging environments, the TNM-C4960TD is housed in an IP66-rated weatherproof and IK10 vandal-resistant enclosure. This guarantees durability and continuous operation under extreme weather conditions, including dust, heavy rain, and extreme temperature variations.
Optimized Bandwidth and Storage Management
Employing H.265 video compression technology, the TNM-C4960TD minimizes bandwidth consumption and storage usage while maintaining high-definition image quality. This efficiency allows for extended recording durations, crucial for long-term security monitoring.
Seamless Integration and Easy Installation
Supporting Power over Ethernet (PoE), the TNM-C4960TD simplifies installation with a single cable for power and data transmission. It is fully ONVIF-compliant, ensuring smooth integration with leading video management systems (VMS) for streamlined security operations.
Key Specifications:
- Dual-spectrum imaging: Thermal + Optical sensor combination
- Thermal imaging resolution: VGA (640×480)
- Optical sensor resolution: 4K Ultra HD
- AI-powered analytics: Object classification, motion detection, virtual line crossing, intrusion detection, facial recognition
- Intelligent event detection: Loitering detection, tampering alerts
- Environmental protection: IP66 weatherproof & IK10 vandal-resistant housing
- Video compression: H.265/H.264/MJPEG
- Power source: Power over Ethernet (PoE)
- Operating temperature: -40°C to +60°C (-40°F to +140°F)
- Network connectivity: Ethernet 10/100 Base-T
- ONVIF compliance: Compatible with major VMS platforms
Specifications:
| Video | Thermal | Visible |
| Imaging Device | Uncooled micro bolometer | 1/1.8″ CMOS |
| Resolution | 640×480 (can be scaled up to 1280×960) 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
3840×2160, 3072×1728, 2592×1944, 2688×1520, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024,1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps (AI 2CH ON – 15fps) MJPEG: Max. 3fps |
H.265/H.264: Max. 30fps/25fps (AI 2CH ON – 15fps) MJPEG: Max. 1fps |
| NETD | ＜60mK | |
| Pixel Size | 12㎛ | |
| Min. Illumination | Color: 0.06Lux(F1.7, 1/30sec) BW: 0.005Lux(F1.7, 1/30sec) |
|
| Video Out | USB : Micro USB Type B | |
| Lens | ||
| Focal Length (Zoom Ratio) | 25mm fixed focal | 10.9~29mm(2.6x) motorized varifocal |
| Max. Aperture Ratio | F1.0 | F1.7(Wide)~F1.73(Tele) |
| Angular Field of View | H: 17.4°, V: 13.1°, D: 21.6° | H:42.0°(Wide)~15.0°(Tele) / V:22.8°(Wide)~8.4°(Tele) / D:48.7°(Wide)~17.1°(Tele) |
| Min. Object Distance | 26m(85.30ft) | Wide: 2.5m(8.20ft) / Tele: 6m(19.68ft) |
| Focus Control | Fixed | Simple foucs |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | WDR(120dB) | |
| Digital Noise Reduction | SSNR V, WiseNR II | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | 8ea, polygonal zones | |
| Privacy Masking | 6ea, rectangle zones – Color: Gray/Black/White |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(1/5~1/12,000sec) Auto prefer shutter control(Based on AI engine) |
|
| Analytics | – Analytics events based on AI engine : Object detection (Person/Vehicle), Bestshot, IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Stopped vehicle, Traffic jam – Analytics events : Motion detection |
Analytics events based on AI engine – Object detection(Person, face, Vehicle(car/bus/truck/motorcycle/bicycle), License plate), Bestshot, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Stopped vehicle, Traffic jam – Analytics events : Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) |
| Business Intelligence | Vehicle counting | Vehicle counting |
| Alarm I/O | 4 configurable I/O ports | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) – Audio clip playback |
|
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
| Audio Out | Line out, Max.output level: 1Vrms | |
| Color Palettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom | |
| Network | ||
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Smart Codec | WiseStreamⅡ | Manual(5ea area), WiseStreamⅢ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) | |
| Security | TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device certificate(Hanwha Techwin Root CA, pre-installed) Secure boot, Secure firmware |
|
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform (visible channel only) |
|
| General | ||
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB | |
| Memory | 4GB RAM, 512MB FLASH | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -40°C to +60°C(-58°F to +140°F) * Start up should be done at above -30°C less than 95% RH(non-condensing) |
|
| Storage Temperature / Humidity | -50°C to +60°C(-58°F to +140°F) / Less than 95% RH(Non-condensing) | |
| Certification | IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE+ : Max 23.5W, Typ 16.0W 12VDC : Max 19.5W, Typ 14.0W |
|
| Mechanical | ||
| Color / Material | White / Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions / Weight | 353.4 * 287.5 * 191.2mm (13.92 * 11.32 * 7.53in) / 4.533kg | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | Wide: 200.1m(656.40ft) / Tele: 583.4m(1913.89ft) | |
| Observe (63PPM/ 19PPF) | Wide: 80.0m(262.56ft) / Tele: 233.3m(765.56ft) | |
| Recognize (125PPM/ 38PPF) | Wide: 40.0m(131.28ft) / Tele: 116.7m(382.78ft) | |
| Identify (250PPM/ 76PPF) | Wide: 20.0m(65.64ft) / Tele: 58.3m(191.39ft) | |
