Hanwha TNO-3040T Thermal CCTV Camera provides advanced thermal detection capabilities with an IP66-rated weatherproof housing, intelligent video analytics, and efficient H.265 video compression. Perfect for demanding security environments requiring accurate monitoring and long-range detection.

Description

Hanwha TNO-3040T Thermal CCTV Camera

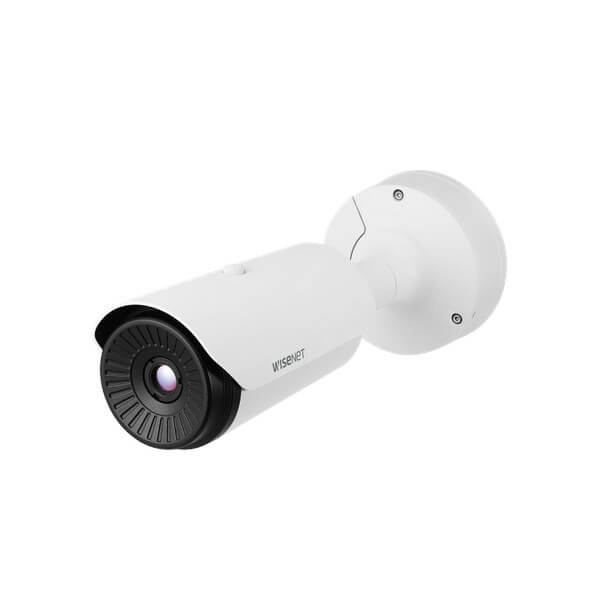

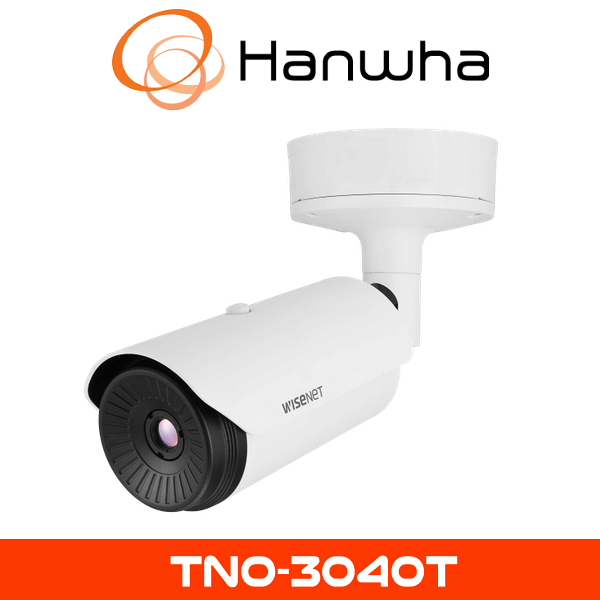

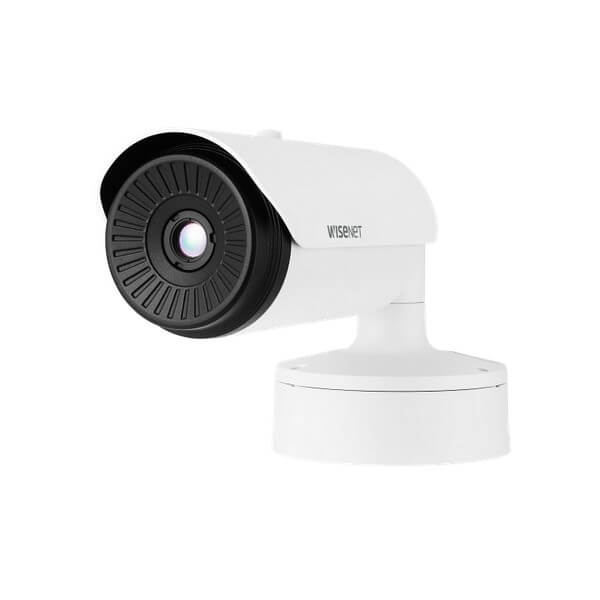

The Hanwha TNO-3040T Thermal CCTV Camera, previously known as Samsung CCTV, is a high-performance thermal imaging solution designed for accurate and dependable security surveillance. Engineered to detect heat signatures even in complete darkness, fog, smoke, or extreme weather conditions, this camera is ideal for securing critical infrastructure, industrial sites, and high-risk areas.

Advanced Thermal Imaging

Equipped with state-of-the-art thermal sensors, the TNO-3040T delivers clear and accurate heat signature detection, ensuring 24/7 monitoring in zero-light environments and adverse visibility conditions such as smoke and fog. Its superior imaging capabilities make it a reliable choice for high-security areas.

Rugged and Weatherproof Design

Designed for durability, the TNO-3040T features an IP66-rated weatherproof and IK10 vandal-resistant enclosure. This ensures uninterrupted operation in harsh environments, including extreme temperatures, rain, dust, and potential tampering.

Intelligent Video Analytics

The TNO-3040T includes advanced video analytics such as motion detection, virtual line crossing, intrusion detection, and tampering alerts. These intelligent features provide real-time notifications, improving security response and situational awareness.

Efficient Storage and Bandwidth Management

Using H.265 video compression technology, the TNO-3040T significantly reduces bandwidth and storage requirements while maintaining superior video quality. This allows for longer recording periods and optimized data management.

Easy Installation and Seamless Integration

Supporting Power over Ethernet (PoE), the TNO-3040T simplifies installation by providing power and data transmission through a single cable. It is fully compatible with major video management systems (VMS), ensuring seamless integration into existing security networks.

Key Specifications:

  • Thermal imaging resolution: VGA (640×480)
  • Reliable detection in complete darkness, fog, smoke, and adverse weather
  • Fixed thermal lens with multiple focal length options available
  • IP66 weatherproof and IK10 vandal-resistant construction
  • Intelligent analytics: Motion detection, virtual line crossing, intrusion detection, tampering alerts
  • Video compression: H.265/H.264/MJPEG
  • Power source: Power over Ethernet (PoE)
  • Operating temperature: -40°C to +60°C (-40°F to +140°F)
  • Network connectivity: Ethernet 10/100 Base-T
  • ONVIF compliant for seamless VMS integration

Specifications:

Video
Imaging Device Uncooled micro bolometer
Resolution 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
NETD <60mK
Pixel Size 12㎛
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 19mm fixed focal
Max. Aperture Ratio F1.0
Angular Field of View H: 11.5°, V: 8.7°, D: 14.4°
Min. Object Distance 15m
Focus Control Fixed
Operational
Camera Title Displayed up to 85 characters
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
– Color: Grey/Green/Red/Blue/Black/White
– Mosaic
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection
Alarm I/O Input 1ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Color Palettes Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law / G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) login authentication
Digest login authentication
IP address filtering
User access log
802.1X authentication(EAP-TLS, EAP-LEAP)
Device certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP66, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power Consumption PoE: Max. 8.7W, typical 7.5W
12VDC: Max. 7.8W, typical 6.7W
24VAC: Max. 9.2W, typical 8.0W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Φ147.51×375.3mm(5.81×14.78″) / 2495g (5.50lb)
