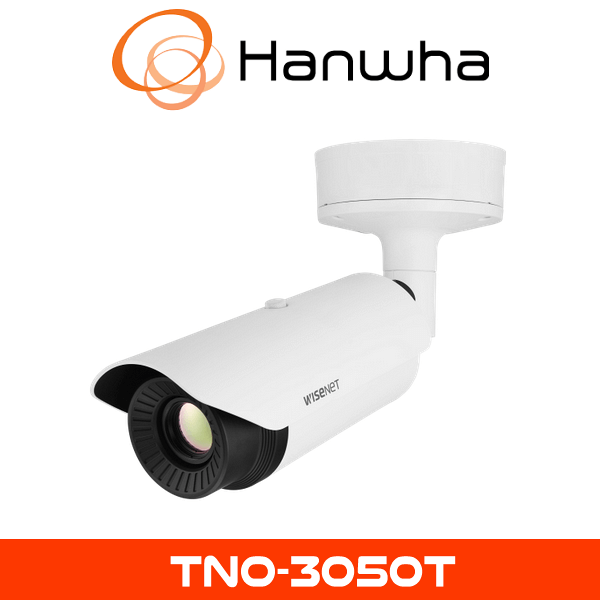

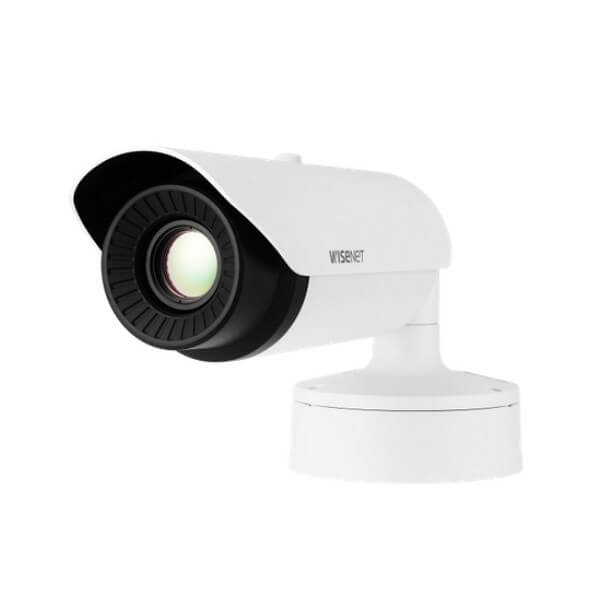

Hanwha TNO-3050T Thermal CCTV Camera



Hanwha TNO-3050T Thermal CCTV Camera

Hanwha TNO-3050T Thermal CCTV Camera provides high-accuracy thermal detection, IP66-rated weatherproof housing, intelligent video analytics, and optimized H.265 video compression. Its robust design ensures efficient security monitoring in demanding conditions.

Description

Hanwha TNO-3050T Thermal CCTV Camera

The Hanwha TNO-3050T Thermal CCTV Camera, previously known as Samsung CCTV, is a top-tier thermal imaging solution engineered for precise and reliable security surveillance. Designed to detect heat signatures under low visibility conditions such as complete darkness, fog, smoke, or harsh weather, this camera ensures superior protection for industrial, perimeter, and high-security environments.

High-Resolution Thermal Imaging

The Hanwha TNO-3050T features an advanced thermal imaging sensor that provides clear and detailed heat signature detection, ensuring uninterrupted security monitoring in complete darkness and extreme environmental conditions. Its ability to detect movement in zero-light scenarios makes it ideal for mission-critical security operations.

Rugged and Weatherproof Design

Built for resilience, the TNO-3050T comes with an IP66 weatherproof and IK10 vandal-resistant enclosure. This guarantees consistent performance in severe environmental conditions such as rain, dust, high humidity, and extreme temperature fluctuations.

Advanced Intelligent Analytics

This camera is equipped with a suite of intelligent analytics, including motion detection, virtual line crossing, intrusion detection, and tampering alerts. These features enhance situational awareness, enabling security teams to respond proactively to potential threats.

Efficient Storage and Bandwidth Optimization

Utilizing H.265 video compression, the TNO-3050T optimizes bandwidth and storage efficiency while maintaining superior video quality. This allows for extended recording periods without excessive storage demands, making it a cost-effective surveillance solution.

Easy Installation and Integration

The TNO-3050T supports Power over Ethernet (PoE), simplifying installation by providing power and network connectivity through a single cable. Its compatibility with major video management systems (VMS) ensures seamless integration into existing security infrastructures.

Key Specifications:

  • Thermal imaging resolution: VGA (640×480)
  • Reliable detection in complete darkness, fog, smoke, and adverse weather
  • Fixed thermal lens with multiple focal length options available
  • IP66 weatherproof and IK10 vandal-resistant construction
  • Intelligent analytics: Motion detection, virtual line crossing, intrusion detection, tampering alerts
  • Video compression: H.265/H.264/MJPEG
  • Power source: Power over Ethernet (PoE)
  • Operating temperature: -40°C to +60°C (-40°F to +140°F)
  • Network connectivity: Ethernet 10/100 Base-T
  • ONVIF compliant for seamless VMS integration

Specifications

Video
Imaging Device Uncooled micro bolometer
Resolution 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
NETD <60mK
Pixel Size 12㎛
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 35mm fixed focal
Max. Aperture Ratio F1.0
Angular Field of View H: 6.3°, V: 4.7°, D: 7.8°
Min. Object Distance 51m
Focus Control Fixed
Operational
Camera Title Displayed up to 85 characters
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature change detection, Sound classification, Shock detection
Alarm I/O Input 1ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover
Audio In Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Color palettes Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP66, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power Consumption PoE: Max. 8.7W, typical 7.5W 12VDC: Max. 7.8W, typical 6.7W 24VAC: Max. 9.2W, typical 8.0W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product dimensions / weight Φ147.51×401.3mm(5.81×15.79″) / 2742g(6.05lb)
DORI
Detect (None)
Observe (None)
Recognize (None)
Identify (None)
