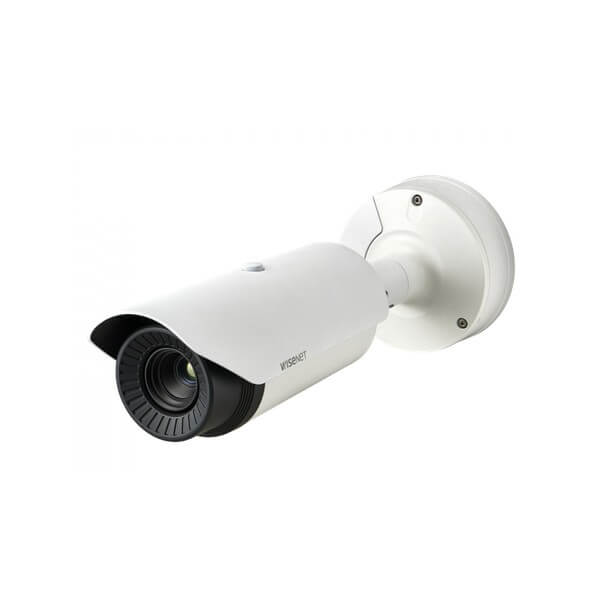

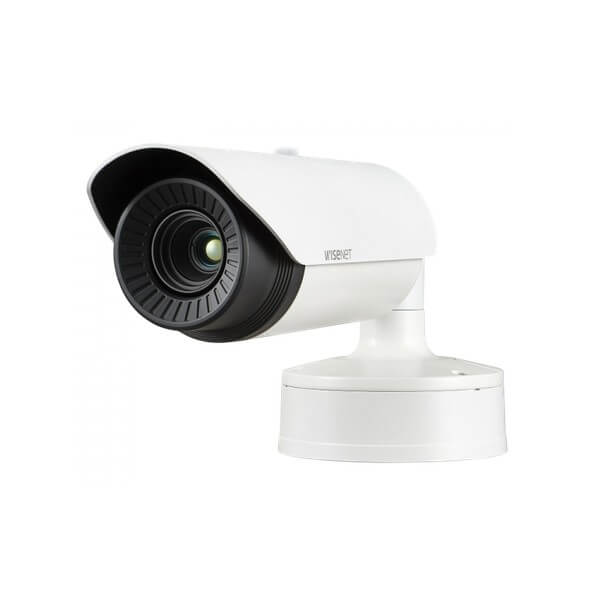

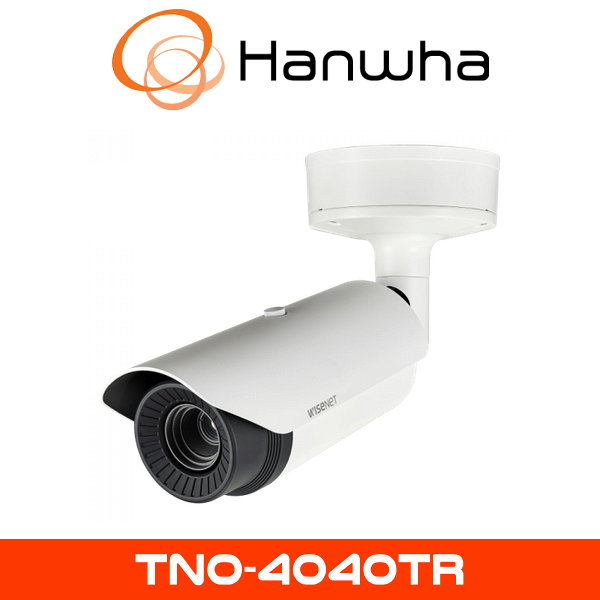

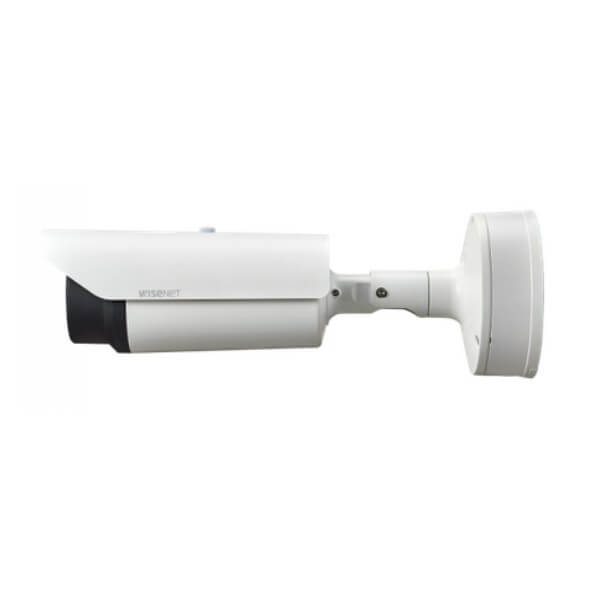

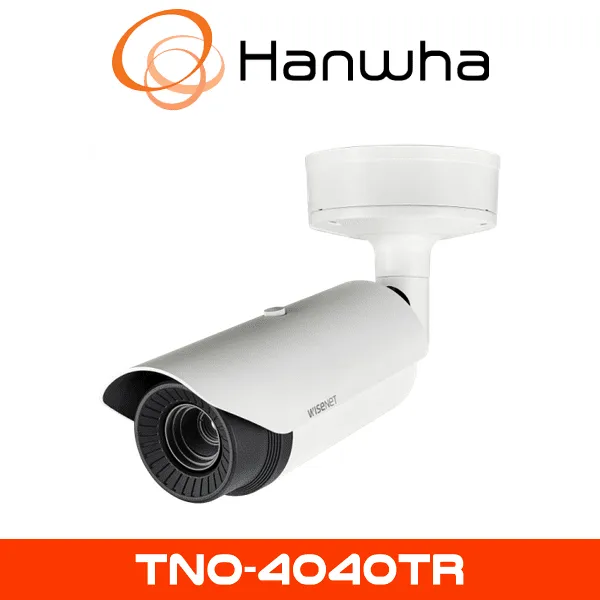

Hanwha TNO-4040TR Thermal CCTV Camera



Hanwha TNO-4040TR Thermal CCTV Camera

Hanwha TNO-4040TR Thermal CCTV Camera provides accurate thermal imaging for reliable surveillance even in total darkness, smoke, and fog conditions. With durable IP66-rated weatherproof housing, built-in IR illumination, advanced analytics, and efficient video compression, this thermal camera ensures continuous and comprehensive security coverage.

Description

Hanwha TNO-4040TR Thermal CCTV Camera

The Hanwha TNO-4040TR Thermal CCTV Camera, previously known as Samsung CCTV, is engineered for exceptional performance in high-security, critical surveillance environments. Utilizing advanced thermal imaging technology, this camera guarantees precise monitoring in complete darkness, adverse weather, and challenging visibility conditions, making it ideal for securing perimeters, industrial sites, and critical infrastructure.

High-Performance Thermal Imaging

The Hanwha TNO-4040TR employs advanced thermal imaging technology, capturing precise heat signatures and delivering clear video footage in complete darkness, fog, smoke, and challenging environmental conditions. Its accurate thermal detection capabilities make it essential for security monitoring in sensitive and high-risk areas.

Built-in IR Illumination

With integrated IR illuminators, the TNO-4040TR significantly enhances its night vision capabilities, providing reliable and clear monitoring even in complete darkness. This ensures uninterrupted protection, vital for round-the-clock surveillance.

Rugged and Durable Construction

The TNO-4040TR features IP66 weatherproof and IK10 vandal-resistant housing, designed to withstand harsh outdoor conditions. It reliably operates in extreme weather, temperature fluctuations, heavy rain, and dusty environments, ensuring consistent, dependable surveillance performance.

Intelligent Surveillance Analytics

Equipped with advanced video analytics such as motion detection, intrusion detection, virtual line crossing, and tampering alerts, the Hanwha TNO-4040TR provides immediate notification of potential threats. These intelligent features enhance security responsiveness and optimize monitoring efficiency.

Efficient Video Compression

Utilizing H.265 video compression, this CCTV camera significantly reduces bandwidth and storage requirements without compromising video clarity, enabling extended storage duration and more efficient data management.

Easy Installation and Integration

The TNO-4040TR supports Power over Ethernet (PoE), simplifying installation by reducing the need for separate power cabling. Its compatibility with various video management systems ensures smooth integration with existing security solutions, providing seamless operation and streamlined monitoring.

Key Specifications:

  • Thermal imaging resolution: VGA (640×480)
  • Built-in IR illumination for enhanced night vision
  • Detection range: Extensive coverage, suitable for medium to long-distance detection
  • Lens type: Fixed thermal lens (multiple focal length options available)
  • Video compression: H.265/H.264/MJPEG
  • Intelligent analytics: Motion detection, intrusion detection, virtual line crossing, tampering detection
  • Environmental rating: IP66 weatherproof, IK10 vandal-resistant
  • Power source: Power over Ethernet (PoE) and DC power options
  • Operating temperature: -40°C to +60°C (-40°F to +140°F)
  • Integration: ONVIF compliance, compatible with major VMS platforms
  • Network Connectivity: Ethernet 10/100 Base-T

Specifications:

Video
Imaging Device Uncooled micro bolometer
Resolution 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
NETD <50mK
Pixel Size 17㎛
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 19mm fixed focal
Max. Aperture Ratio F1.0
Angular Field of View H: 32° / V: 24.3° / D: 39.2°
Min. Object Distance 11m(36.09ft)
Focus Control Fixed
Operational
Camera Title Displayed up to 85 characters
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 24ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature detection, Sound classification, Shock detection
Alarm I/O Input 1ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input, MQTT subscription
Alarm Events When alarm trigger occurred – File upload(image): e-mail/FTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset – MQTT: publication
Audio In Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Color palettes Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Radiometry
Temperature Detect Range -20°C~130°C(-4°F~266°F)
Temperature Accuracy ±5°C(≤100°C), ±20%(>100°C)
Temperature Detection 6 Quadrangle ROI zones, whole FoV area
Additional Hybrid palettes, Spot temperature reading
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, MQTT
Security HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power Consumption PoE: Max. 10W, typical 8.6W 12VDC: Max. 9W, typical 7.5W 24VAC: Max. 10.5W, typical 8.9W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product dimensions / weight Φ101.97×401.8mm(4.01×15.82″) / 3,175g(7.01lb)
