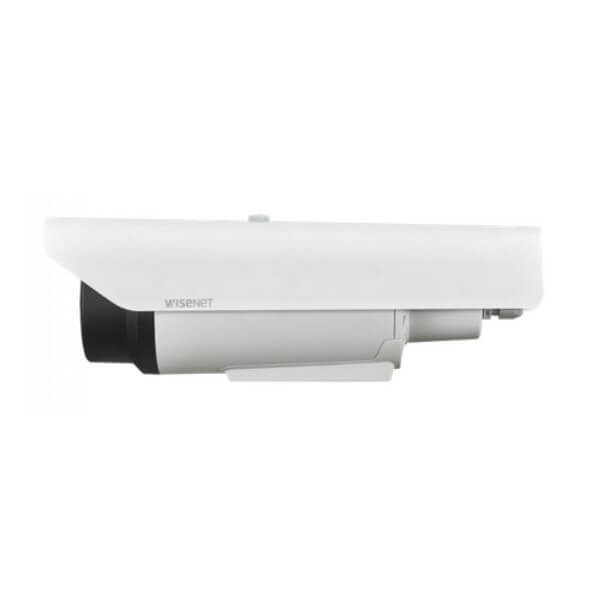

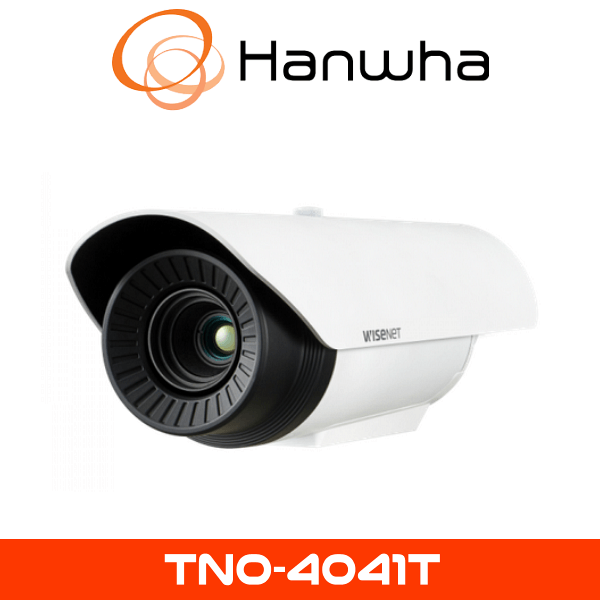

Hanwha TNO-4041T Thermal CCTV Camera



The Hanwha TNO-4041T Thermal CCTV

Hanwha TNO-4041T Thermal CCTV Camera features sophisticated thermal imaging for accurate surveillance in complete darkness and challenging conditions like fog or smoke. Equipped with IP66-rated weatherproof housing and intelligent analytics, this camera is perfect for industrial, perimeter, and high-security environments, ensuring uninterrupted surveillance and reliable detection.

Description

Hanwha TNO-4041T Thermal CCTV Camera

The Hanwha TNO-4041T Thermal CCTV Camera, previously known as Samsung CCTV, offers advanced thermal imaging capabilities designed to provide reliable detection and surveillance under challenging environmental and lighting conditions. Perfect for safeguarding perimeters, critical infrastructure, and high-risk areas, this thermal camera delivers precision monitoring and advanced analytics to ensure comprehensive security coverage.

Advanced Thermal Imaging Technology

Hanwha TNO-4041T employs state-of-the-art thermal imaging sensors, delivering precise heat signature detection and clear visuals even in pitch-dark conditions. Ideal for environments where traditional CCTV cameras may fail, the TNO-4041T provides consistent and reliable detection and monitoring capabilities.

Reliable Detection in Any Condition

Hanwha TNO-4041T excels in challenging environments, accurately detecting movement and identifying heat signatures regardless of weather conditions, fog, or smoke. This capability makes it particularly valuable for critical surveillance operations, including perimeter security, industrial facilities, and remote monitoring of sensitive areas.

Durable and Weatherproof Design

With its robust IP66-rated weatherproof housing, the Hanwha TNO-4041T CCTV Camera withstands severe weather conditions, including heavy rain, snow, dust, and extreme temperatures. The durable and rugged build ensures dependable, uninterrupted surveillance operation in demanding outdoor environments.

Advanced Intelligent Analytics

Embedded intelligent analytics such as motion detection, intrusion detection, virtual line crossing, and tampering alerts significantly enhance the surveillance capabilities of the Hanwha TNO-4041T. These intelligent features provide immediate alerts, helping security personnel respond swiftly to potential threats and incidents.

Optimized Storage Efficiency

The Hanwha TNO-4041T utilizes H.265 compression technology, significantly reducing bandwidth usage and storage requirements while preserving high-quality video recordings. This enhanced efficiency supports longer recording durations, making it ideal for extensive surveillance operations.

Simplified Installation and Integration

Supporting Power over Ethernet (PoE), theHanwha TNO-4041T streamlines installation by combining data and power transmission into a single cable, significantly simplifying the installation process. Its compatibility with leading video management systems enables seamless integration into existing security infrastructures, facilitating ease of operation.

Key Specifications:

  • Thermal imaging sensor resolution: VGA (640×480)
  • Detection range: Extensive long-range thermal detection
  • Thermal sensitivity (NETD): High sensitivity for accurate detection
  • Spectral range: 8~14 µm
  • Lens options: Multiple lens choices available for varying field of view requirements
  • Frame rate: 30 fps
  • IP66 weatherproof and IK10 vandal-resistant housing
  • Intelligent analytics: Motion detection, virtual line crossing, intrusion detection, tampering detection
  • Video compression: H.265/H.264 for optimized storage
  • Power supply: PoE support
  • Operating temperature: -40°C to +60°C (-40°F to +140°F)
  • Compatibility: Compatible with major video management software

Specifications:

Video
Imaging Device Uncooled micro bolometer
Resolution 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
NETD <50mK
Pixel Size 17㎛
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 19mm fixed focal
Max. Aperture Ratio F1.0
Angular Field of View H: 32° / V: 24.3° / D: 39.2°
Min. Object Distance 11m(36.09ft)
Focus Control Fixed
Operational
Camera Title Displayed up to 85 characters
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature detection, Sound classification, Shock detection
Serial Interface RS-485/422(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 1ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover
Audio In Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Color palettes Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Radiometry
Temperature Detect Range -20°C~130°C(-4°F~266°F)
Temperature Accuracy ±5°C(≤100°C), ±20%(>100°C)
Temperature Detection 3ea rectanguler
Additional Hybrid palettes, Spot temperature reading
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power Consumption PoE: Max. 10W, typical 8.6W 12VDC: Max. 9W, typical 7.5W 24VAC: Max. 10.5W, typical 8.9W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product dimensions / weight Φ101.97×401.8mm(4.01×15.82″) / 3,175g(7.01lb)
DORI
Detect (None)
Observe (None)
Recognize (None)
Identify (None)
