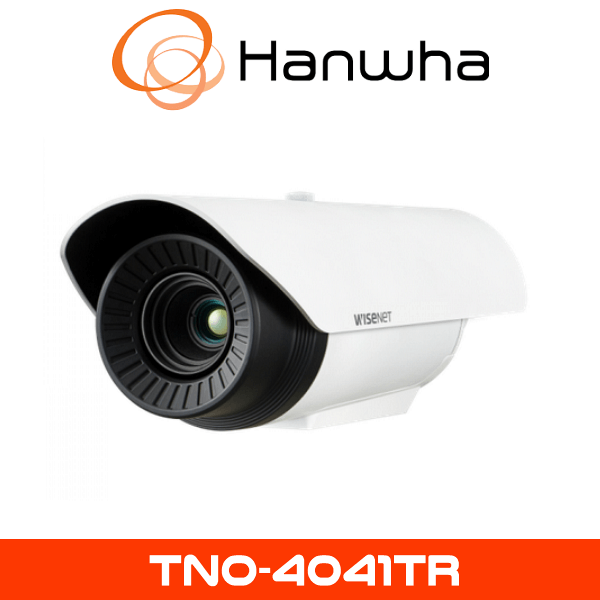

Hanwha TNO-4041TR Thermal CCTV Camera



Hanwha TNO-4041TR Thermal CCTV

The Hanwha TNO-4041TR Thermal CCTV Camera provides superior thermal imaging for accurate detection in complete darkness, smoke, fog, and challenging weather conditions. Featuring rugged IP66 weatherproof construction, IR illumination, and advanced video analytics, this thermal camera is ideal for securing perimeters, industrial facilities, and critical infrastructure.

Description

Hanwha TNO-4041TR Thermal CCTV Camera

The Hanwha TNO-4041TR Thermal CCTV Camera, previously recognized as Samsung CCTV, delivers reliable, high-performance thermal imaging for demanding surveillance applications. Designed to offer clear detection and monitoring capabilities even under adverse weather and lighting conditions, this camera ensures comprehensive security in critical areas.

Precise Thermal Imaging

Equipped with advanced thermal imaging technology, the Hanwha TNO-4041TR captures accurate heat signatures, delivering clear and detailed surveillance imagery in total darkness or difficult visibility conditions such as heavy fog or smoke. Its thermal capabilities enable reliable detection of individuals, vehicles, and potential threats even under challenging circumstances.

Integrated IR Illumination

With built-in IR illuminators, the TNO-4041TR enhances its monitoring capabilities by providing reliable visibility at night. This integrated infrared technology significantly improves situational awareness and surveillance effectiveness, ensuring consistent protection around the clock.

Rugged and Durable Construction

The Hanwha TNO-4041TR CCTV camera features a robust IP66 weatherproof and IK10 vandal-resistant housing, specifically engineered to withstand harsh environmental conditions. This rugged design ensures uninterrupted surveillance performance, offering protection from extreme temperatures, water, dust, and physical impact.

Intelligent Video Analytics

The TNO-4041TR includes advanced intelligent analytics such as motion detection, virtual line crossing, intrusion detection, and tampering detection. These powerful surveillance features offer real-time alerts, significantly enhancing security responsiveness and ensuring rapid response to potential threats.

Efficient Storage Management

Utilizing H.265 video compression technology, the Hanwha TNO-4041TR effectively reduces storage and bandwidth requirements, maintaining high-quality video recordings. This optimization facilitates extended recording durations, making it ideal for environments requiring long-term and comprehensive surveillance.

Easy Installation and Integration

The Hanwha TNO-4041TR supports Power over Ethernet (PoE), simplifying installation by combining power supply and data transmission in a single cable. Its compatibility with leading video management systems allows effortless integration into existing security setups, ensuring seamless operational continuity.

Key Specifications:

  • Advanced thermal imaging sensor
  • Resolution: 640 x 480 (VGA)
  • Detection range: up to several hundred meters
  • Built-in IR illumination for effective night vision
  • IP66 weatherproof and IK10 vandal-resistant housing
  • Intelligent analytics (motion detection, line crossing, intrusion alerts, tampering detection)
  • H.265/H.264 video compression
  • Power over Ethernet (PoE) support
  • Operating temperature: -40°C to +60°C (-40°F to +140°F)
  • Multiple streaming capabilities
  • Compatible with major VMS platforms

Specifications

Video
Imaging Device Uncooled micro bolometer
Resolution 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
NETD <50mK
Pixel Size 17㎛
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 19mm fixed focal
Max. Aperture Ratio F1.0
Angular Field of View H: 32° / V: 24.3° / D: 39.2°
Min. Object Distance 11m(36.09ft)
Focus Control Fixed
Operational
Camera Title Displayed up to 85 characters
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature detection, Sound classification, Shock detection
Serial Interface RS-485/422(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 1ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover
Audio In Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Color palettes Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Radiometry
Temperature Detect Range -20°C~130°C(-4°F~266°F)
Temperature Accuracy ±5°C(≤100°C), ±20%(>100°C)
Temperature Detection 3ea rectanguler
Additional Hybrid palettes, Spot temperature reading
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power Consumption PoE: Max. 10W, typical 8.6W 12VDC: Max. 9W, typical 7.5W 24VAC: Max. 10.5W, typical 8.9W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product dimensions / weight Φ101.97×401.8mm(4.01×15.82″) / 3,175g(7.01lb)
DORI
Detect (None)
Observe (None)
Recognize (None)
Identify (None)
