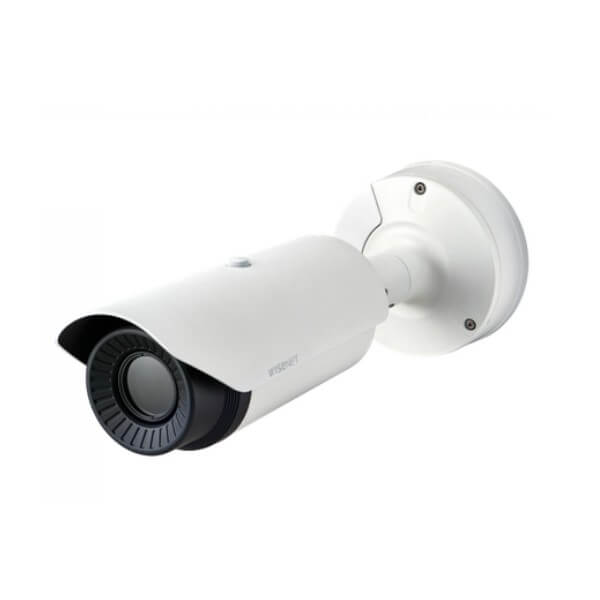

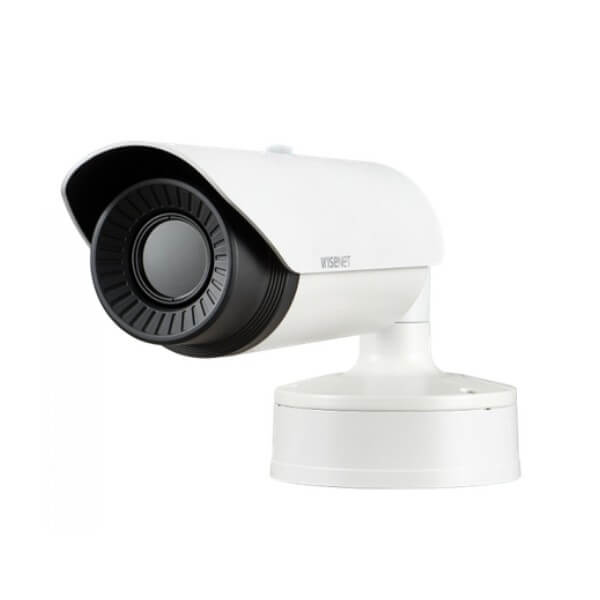

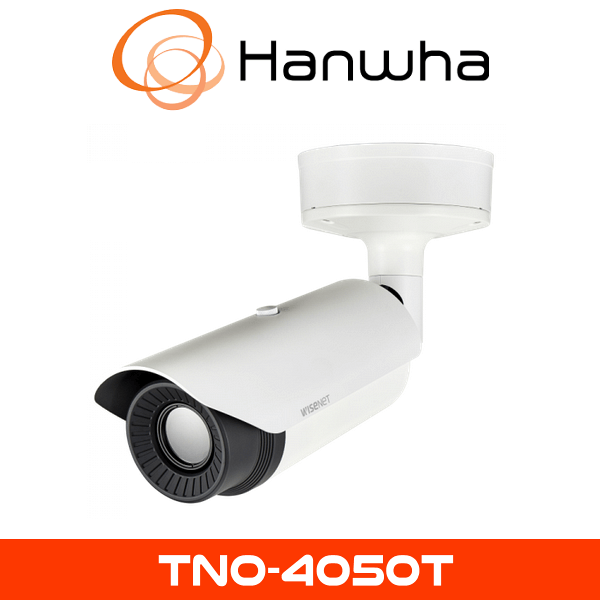

Hanwha TNO-4050T Thermal CCTV Camera
The Hanwha TNO-4050T Thermal CCTV Camera, previously known as Samsung CCTV, offers powerful thermal imaging for precise and dependable security surveillance. Designed to perform reliably under challenging lighting and environmental conditions, this thermal camera is ideal for securing critical infrastructures and high-risk areas, providing continuous, robust detection and monitoring.
Superior Thermal Imaging Technology
The Hanwha TNO-4050T features state-of-the-art thermal imaging sensors, accurately detecting heat signatures and ensuring clear visibility even in absolute darkness or challenging conditions such as heavy fog and smoke. This capability is crucial for maintaining security at sensitive and critical sites around the clock.
Reliable Detection in All Conditions
Delivering precise and consistent detection capabilities, the TNO-4050T thermal camera is essential for effective surveillance of perimeters, industrial areas, transportation hubs, and critical infrastructure. Its thermal imaging technology ensures uninterrupted monitoring regardless of weather or visibility constraints.
Robust Weatherproof Design
The Hanwha TNO-4050T CCTV camera is rated IP66, making it highly resilient against harsh outdoor conditions, including extreme temperatures, rain, snow, dust, and humidity. This rugged construction ensures continuous, dependable operation even in the most demanding environments.
Advanced Video Analytics
Incorporating intelligent analytics such as motion detection, virtual line crossing, intrusion detection, and tampering detection, the Hanwha TNO-4050T ensures immediate and accurate alerts. These advanced features significantly enhance the camera’s surveillance effectiveness and improve response times to potential threats.
Optimized Storage Efficiency
With H.265 video compression, the TNO-4050T significantly reduces bandwidth usage and storage needs without compromising video quality. This compression technology allows longer video retention periods, essential for comprehensive monitoring and security compliance.
Simple Installation and Integration
The Hanwha TNO-4050T supports Power over Ethernet (PoE), streamlining the installation process by combining power and data transmission into a single cable. Its broad compatibility with popular video management systems allows easy integration into existing security infrastructure, facilitating smooth operations and management.
Key Specifications:
- Advanced thermal imaging technology
- Reliable detection in complete darkness, fog, and smoke
- Durable IP66 weatherproof housing
- Intelligent analytics (motion, intrusion detection, tampering alerts)
- H.265 video compression
- Power over Ethernet (PoE) support
Specifications:
| Video | |
| Imaging Device | Uncooled micro bolometer |
| Resolution | 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| NETD | ＜50mK |
| Pixel Size | 17㎛ |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 35mm fixed focal |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View | H: 17.2° / V: 13° / D: 22° |
| Min. Object Distance | 36m(118.11ft) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature change detection, Sound classification, Shock detection |
| Alarm I/O | Input 1ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Color palettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3), 24VAC, 12VDC |
| Power Consumption | PoE: Max. 10W, typical 8.6W 12VDC: Max. 9W, typical 7.5W 24VAC: Max. 10.5W, typical 8.9W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | Φ101.97×401.8mm(4.01×15.82″) / 3175g(7.01 lb) |
| DORI | |
| Detect | (None) |
| Observe | (None) |
| Recognize | (None) |
| Identify | (None) |
