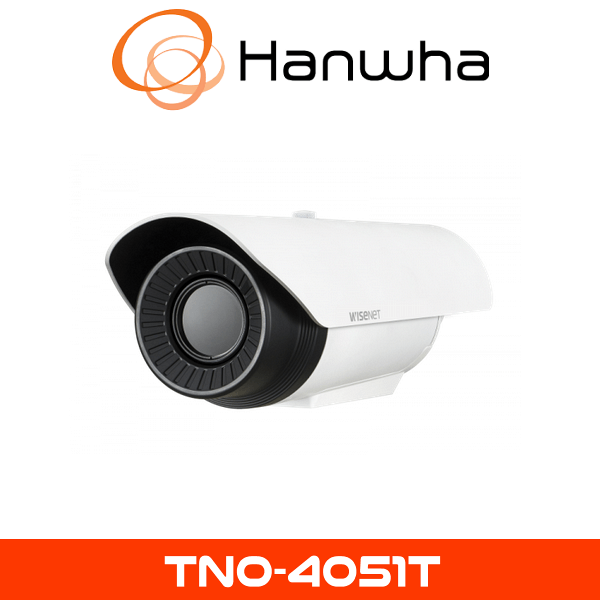

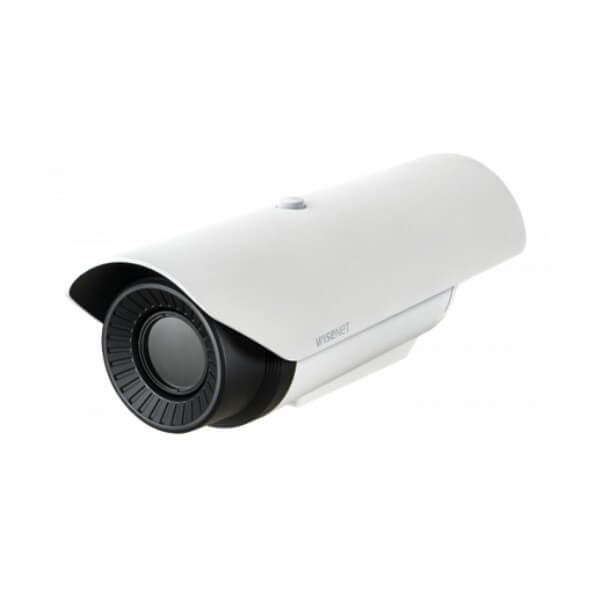

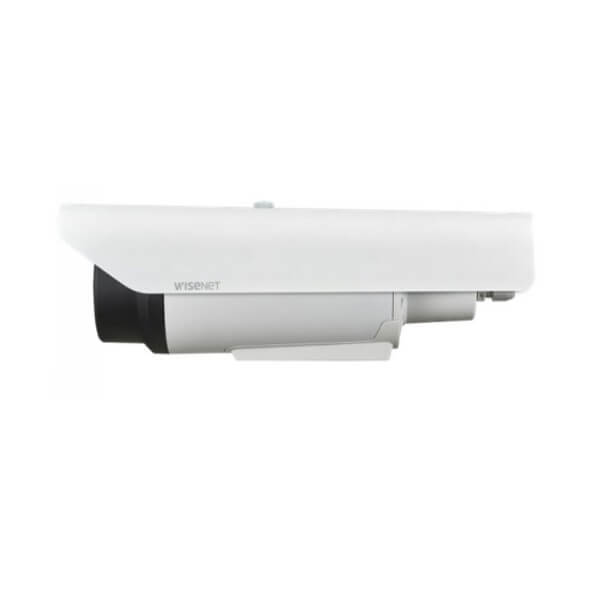

Hanwha TNO-4051T Thermal CCTV Camera



Hanwha TNO-4051T Thermal CCTV Camera

Hanwha TNO-4051T Thermal CCTV Camera features advanced thermal imaging for precise detection in any lighting condition. With rugged IP66 weatherproof housing, intelligent analytics, and superior detection ranges, this camera is ideal for perimeter security, industrial facilities, and critical infrastructure monitoring.

Description

Hanwha TNO-4051T Thermal CCTV Camera

The Hanwha TNO-4051T Thermal CCTV Camera, previously known as Samsung CCTV, provides cutting-edge thermal imaging technology for advanced surveillance applications. Engineered for demanding security environments, this thermal camera delivers accurate detection capabilities even in complete darkness, fog, smoke, or challenging weather conditions, ensuring optimal monitoring performance at all times.

Advanced Thermal Imaging

The Hanwha TNO-4051T Thermal CCTV Camera utilizes state-of-the-art thermal imaging technology to detect heat signatures clearly and accurately. Offering reliable monitoring even in complete darkness, poor visibility, or adverse weather conditions, this thermal camera greatly enhances the effectiveness of security surveillance.

Reliable Detection and Monitoring

The TNO-4051T provides precise detection and recognition capabilities, making it highly suitable for critical areas such as perimeters, borders, ports, and industrial sites. Its thermal imaging sensors deliver consistent, high-quality video footage regardless of environmental conditions, ensuring round-the-clock security.

Durable Weatherproof Design

Designed to withstand extreme weather conditions, the Hanwha TNO-4051T CCTV Camera is rated IP66, ensuring reliable performance in harsh outdoor environments. This robust build guarantees the camera’s continuous operation through rain, snow, dust, or extreme temperatures.

Intelligent Surveillance Analytics

Integrated intelligent analytics enhance the effectiveness of the Hanwha TNO-4051T by providing motion detection, virtual line crossing, intrusion detection, and tampering alerts. These advanced features enable immediate detection and prompt responses, significantly improving security and reducing response times.

Efficient Bandwidth and Storage Management

Employing H.265 video compression, the TNO-4051T optimizes bandwidth and storage resources, reducing storage requirements without compromising the quality or clarity of the video feed. This efficiency facilitates extended recording periods, vital for comprehensive security monitoring.

Easy Integration and Installation

Supporting Power over Ethernet (PoE), the Hanwha TNO-4051T simplifies installation and reduces cabling complexity. Its compatibility with various video management systems ensures smooth integration into existing security infrastructure, providing operational continuity and ease of management.

Key Specifications:

  • Advanced thermal imaging for precise detection
  • Reliable detection in complete darkness and adverse conditions
  • IP66 weatherproof rated for harsh outdoor environments
  • Intelligent analytics (motion detection, intrusion detection, tampering alerts)
  • H.265 video compression
  • PoE support for easy installation

Specifications:

Video
Imaging Device Uncooled micro bolometer
Resolution 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
NETD <50mK
Pixel Size 17㎛
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
Lens
Focal Length (Zoom Ratio) 35mm fixed focal
Max. Aperture Ratio F1.0
Angular Field of View H: 17.2° / V: 13° / D: 22°
Min. Object Distance 36m(118.11ft)
Focus Control Fixed
Operational
Camera Title Displayed up to 85 characters
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature change detection, Sound classification, Shock detection
Serial Interface RS-485/422(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 1ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover
Audio In Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Color palettes Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP66, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power Consumption PoE: Max. 10W, typical 8.6W 12VDC: Max. 9W, typical 7.5W 24VAC: Max. 10.5W, typical 8.9W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product dimensions / weight Φ101.97x309mm(4.01×12.17″) / 2452g(5.41lb)
DORI
Detect (None)
Observe (None)
Recognize (None)
Identify (None)
