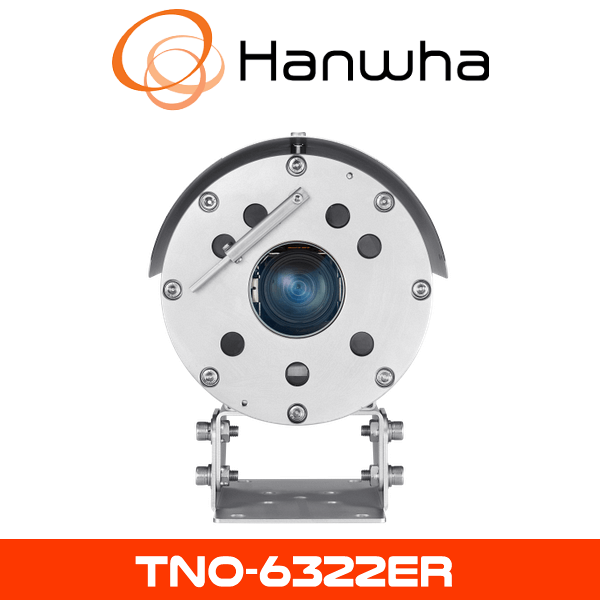

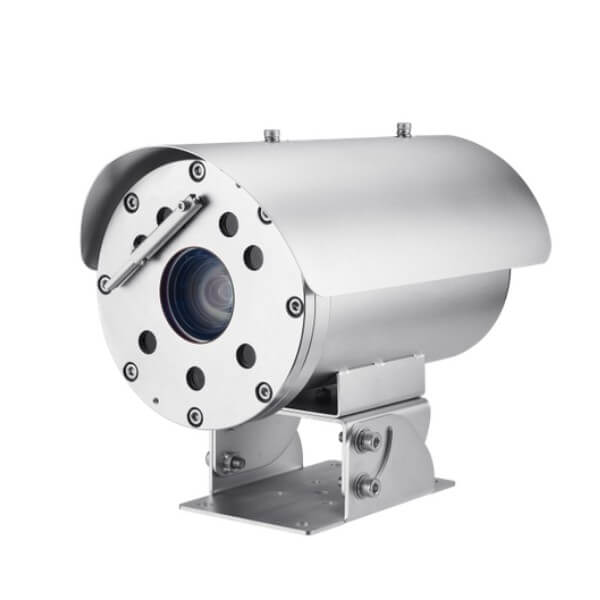

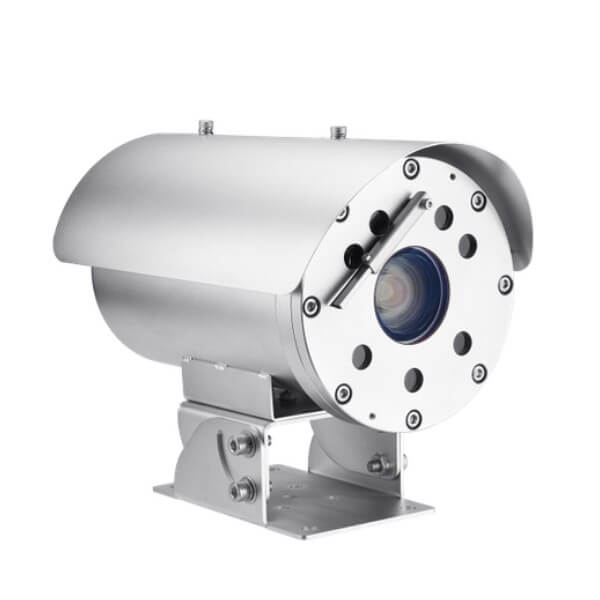

Hanwha TNO-6322ER Explosion Proof CCTV Camera



Hanwha TNO-6322ER

The Hanwha TNO-6322ER Explosion Proof CCTV Camera provides exceptional outdoor security with 2MP Full HD resolution, powerful IR illumination for clear night vision up to 30 meters, and durable explosion-proof housing (IP66 & IK10 rated).





Description

Hanwha TNO-6322ER Explosion Proof CCTV Camera

The Hanwha TNO-6322ER Explosion Proof CCTV Camera, previously known as Samsung CCTV, is specifically engineered for high-quality outdoor surveillance in explosive and hazardous environments. With advanced imaging technologies and a rugged, explosion-proof build, the TNO-6322ER is ideal for industries where safety and reliability in potentially explosive conditions are paramount.

Exceptional Image Quality

With a high-resolution 2MP (1920×1080) sensor, the Hanwha TNO-6322ER Explosion Proof CCTV Camera delivers crisp, clear images, enabling precise identification and effective monitoring day and night. Its motorized varifocal lens (4.44~142.6mm) ensures flexibility in viewing angles, ideal for surveillance applications ranging from wide areas to detailed distant targets.

Advanced Night Vision Capabilities

Featuring built-in IR LEDs, the TNO-6322ER provides clear and detailed night vision up to 30 meters, even in complete darkness. This robust night vision functionality is crucial for hazardous environments like oil refineries, chemical plants, and other industrial facilities that operate around the clock.

Explosion Proof and Durable Design

The Hanwha TNO-6322ER CCTV camera features explosion-proof housing designed explicitly for hazardous areas prone to explosive atmospheres. Additionally, its IP66 weatherproof and IK10 vandal-resistant rating ensure reliable operation in extreme conditions and protection against physical damage, making it ideal for the toughest environments.

Enhanced Security with Advanced Analytics

Embedded with intelligent analytics, the TNO-6322ER includes motion detection, tampering detection, virtual line crossing, and audio detection. These sophisticated features enable immediate alerts and rapid response to security threats, significantly enhancing safety and operational efficiency in explosive environments.

Optimal Storage Efficiency

Utilizing advanced H.265 compression technology, the Hanwha TNO-6322ER significantly reduces video file sizes without compromising image quality. This efficiency extends recording durations and lowers storage costs, beneficial for continuous long-term surveillance.

Easy Integration and Installation

Supporting Power over Ethernet (PoE), the TNO-6322ER simplifies installation by eliminating the need for additional power cables. Its compatibility with various video management systems ensures seamless integration into existing security infrastructures, enhancing operational continuity.

Key Specifications:

  • Explosion-proof housing for hazardous environments
  • Resolution: 2MP (1920×1080)
  • Motorized varifocal lens (4.44~142.6mm)
  • Built-in IR LEDs (night vision up to 30m)
  • IP66 weatherproof and IK10 vandal-resistant
  • H.265/H.264 video compression
  • Advanced analytics (motion, tampering, virtual line crossing)
  • PoE support for easy installation

Specifications:

Video
Imaging Device 1/2.8″ CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
Lens
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom
Max. Aperture Ratio F1.6(Wide)~F4.4(Tele)
Angular Field of View H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele)
Min. Object Distance Wide 1.5m, Tele 2m
Focus Control Oneshot AF
Lens Type DC auto iris
Pan / Tilt / Rotate
Tilt Range 35º~90º
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1~1/12,000sec)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
NAS recording at event triggers
Alarm output
Zoom Preset
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length 70m (229.66ft)
Water Removal Support (with Wiper)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication
Digest login authentication
IP address filtering
User access log
802.1X authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity IR Off: -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH
IR On: -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH
Storage Temperature / Humidity -30°C~+60°C(-22°F ~ +140°F) / Less than 95% RH
Certification IECEx, ATEX, KCs, KC, CE
IP67, IK10, PESO certified
Input Voltage 24VAC
Power Consumption 24VAC: Max. 45W
Mechanical
Color / Material Metalic Silver / Stainless 316L
Product Dimensions / Weight 175(W)x242.5(H)x320(D)mm(6.89×9.59×12.59″) / 11.5kg(25.35lb)
