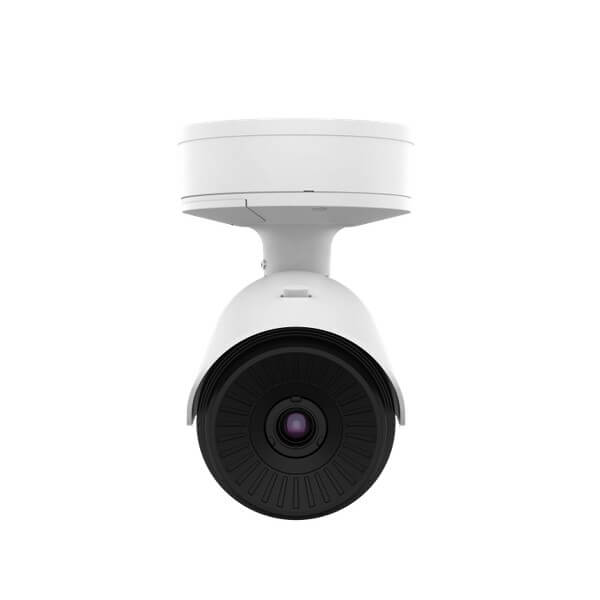

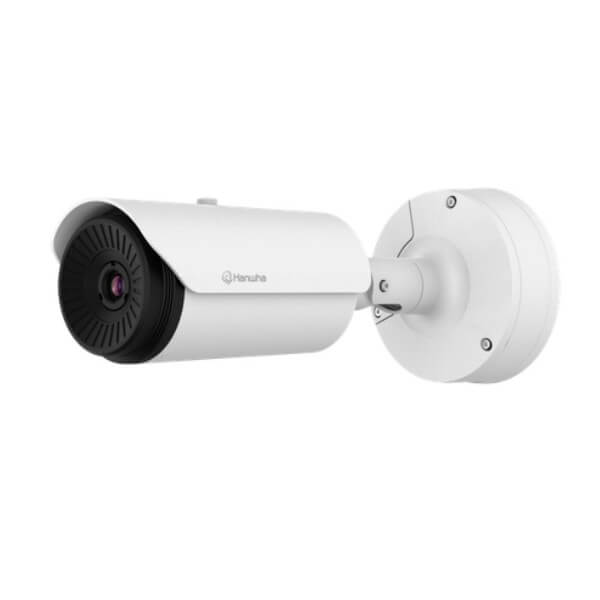

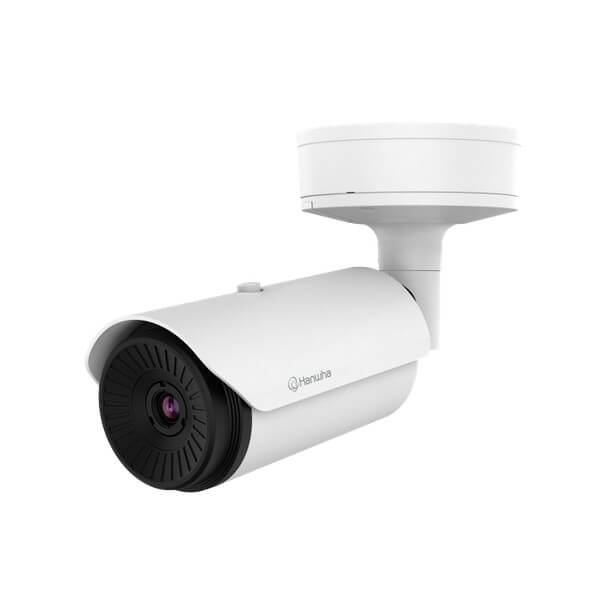

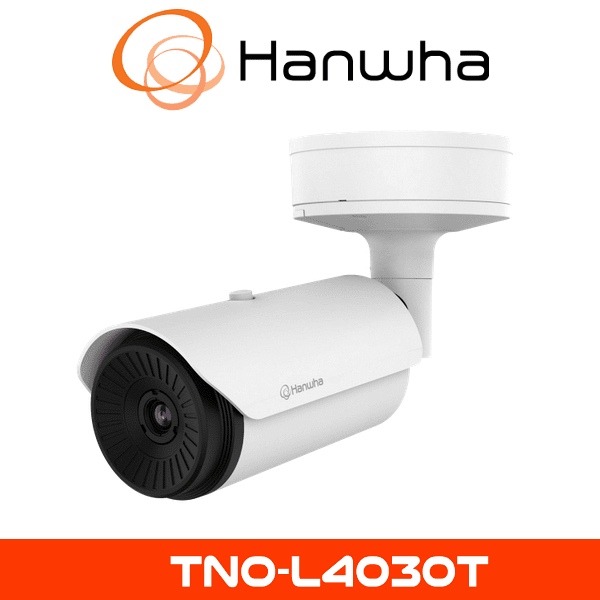

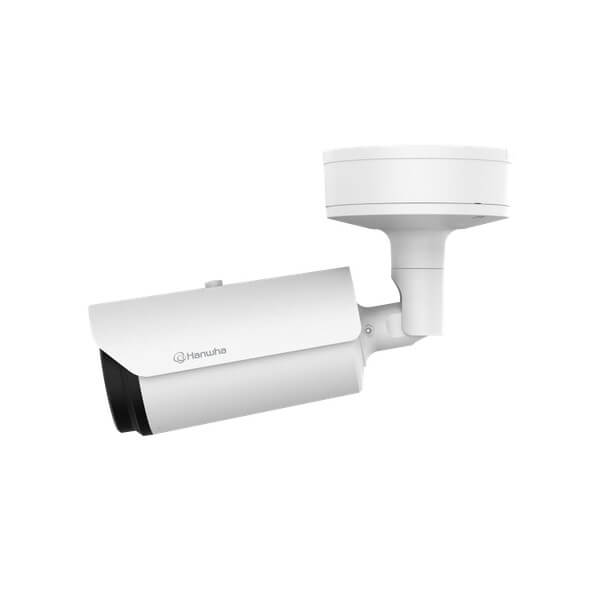

Hanwha TNO-L4030T Thermal CCTV Camera



Hanwha TNO-L4030T Thermal CCTV Camera

Hanwha TNO-L4030T Thermal CCTV Camera offers advanced thermal imaging, accurate detection capabilities, IP66-rated rugged housing, intelligent analytics, and optimized video compression. Perfect for installations where precise monitoring and reliable performance in low visibility are paramount.

Description

Hanwha TNO-L4030T Thermal CCTV Camera

The Hanwha TNO-L4030T Thermal CCTV Camera, previously known as Samsung CCTV, delivers precise, compact thermal imaging for reliable security surveillance in challenging environmental conditions. Specially designed for accurate detection in complete darkness, fog, smoke, and adverse weather, this camera provides exceptional protection for perimeters, industrial sites, and critical infrastructures.

High-Quality Thermal Imaging

The Hanwha TNO-L4030T employs advanced thermal sensors to detect accurate heat signatures, providing clear video images even in absolute darkness, heavy fog, or smoke. This precise thermal imaging capability ensures reliable monitoring of critical security areas where traditional CCTV solutions may falter.

Compact and Efficient Design

Featuring a compact yet robust design, the TNO-L4030T is highly versatile, making it ideal for installations in locations with space constraints without sacrificing performance. Its discreet profile is perfect for applications requiring unobtrusive yet reliable surveillance.

Durable Weatherproof Housing

The Hanwha TNO-L4030T is rated IP66, designed to withstand severe weather conditions including rain, snow, dust, and extreme temperature fluctuations. Its rugged, weatherproof construction guarantees reliable, uninterrupted surveillance in outdoor and harsh environments.

Advanced Intelligent Analytics

The TNO-L4030T thermal CCTV camera integrates powerful intelligent analytics features, including motion detection, intrusion detection, virtual line crossing, and tampering alerts. These analytics provide timely notifications to ensure rapid security responses, enhancing overall surveillance effectiveness.

Enhanced Storage Efficiency

Utilizing advanced H.265 video compression, the TNO-L4030T significantly reduces bandwidth and storage requirements without compromising video quality. This efficient compression technology ensures extended recording periods, beneficial for continuous monitoring needs.

Easy Installation and Integration

With support for Power over Ethernet (PoE), the Hanwha TNO-L4030T simplifies installation by combining both power and network connectivity into one cable. It seamlessly integrates with major video management systems (VMS), enhancing operational efficiency and ease of management.

Key Specifications:

  • Thermal imaging resolution: QVGA (320×240)
  • Accurate detection in darkness, smoke, and fog
  • Lens options: Fixed thermal lens (varied focal lengths available)
  • Detection range: Suitable for short to medium-range applications
  • IP66 weatherproof and IK10 vandal-resistant construction
  • Intelligent analytics: Motion detection, intrusion detection, virtual line crossing, tampering alerts
  • Video compression: H.265/H.264/MJPEG
  • Power supply: PoE (Power over Ethernet)
  • Operating temperature: -40°C to +60°C (-40°F to +140°F)
  • Network Connectivity: Ethernet 10/100 Base-T
  • ONVIF compliant, compatible with major VMS platforms

Specifications:

Video
Imaging Device Uncooled micro bolometer
Resolution 640×480, 640×360, 320×240
Max. Framerate H.265/H.264/MJPEG: Max. 8fps
NETD <50mK
Pixel Size 17㎛
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 13mm fixed focal
Max. Aperture Ratio F1.0
Angular Field of View H: 48.6° / V: 36.4 / D: 61.6°
Min. Object Distance 5m(16.40ft)
Focus Control Fixed
Operational
Camera Title Displayed up to 85 characters
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
– Color: Grey/Green/Red/Blue/Black/White
– Mosaic
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection
Alarm I/O Input 1ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Color Palettes Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / 90% RH 이하
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / 90% RH 이하
Certification IP66, IK10, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power Consumption PoE: Max. 10W, typical 8.6W
12VDC: Max. 9W, typical 7.5W
24VAC: Max. 10.5W, typical 8.9W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Φ101.97×401.8mm(4.01×15.82″) / 3124g(6.89 lb)
