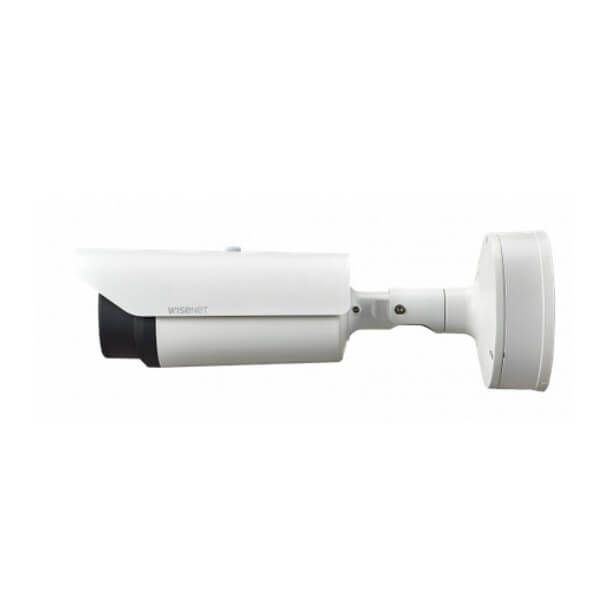

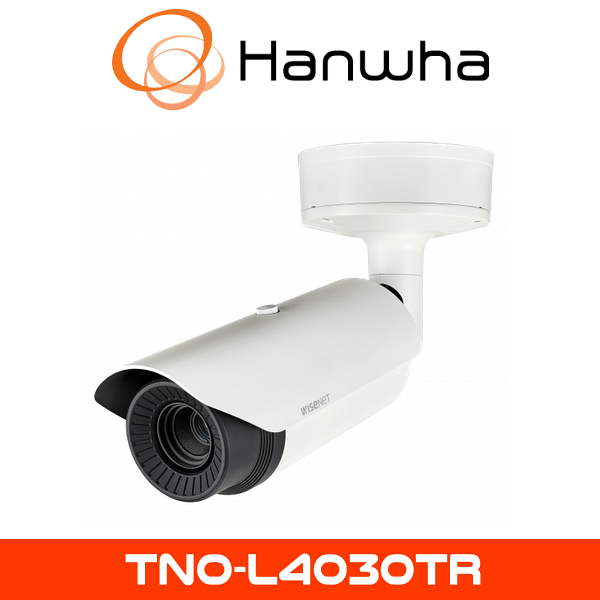

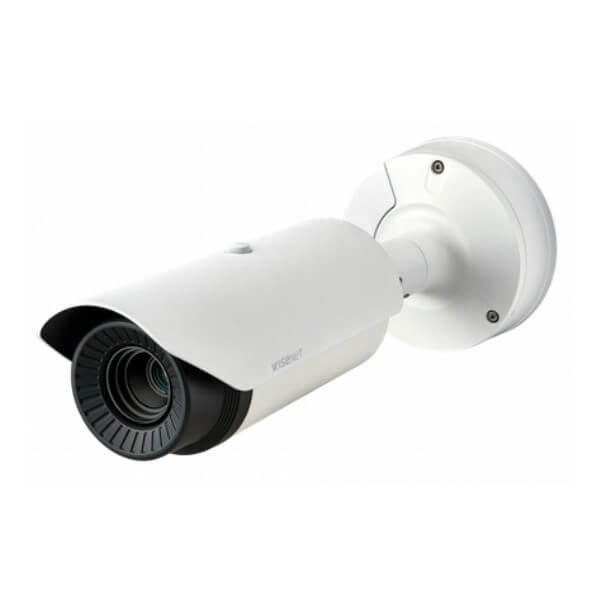

Hanwha TNO-L4030TR Thermal CCTV Camera
The Hanwha TNO-L4030TR Thermal CCTV Camera, previously recognized as Samsung CCTV, is engineered to deliver advanced thermal imaging in compact form, ideal for accurate and reliable monitoring under challenging environmental conditions. Providing exceptional detection capabilities even in complete darkness, fog, smoke, or extreme weather, this camera is perfect for enhancing security across industrial, perimeter, and critical infrastructure environments.
High-Precision Thermal Imaging
Utilizing advanced thermal imaging technology, the Hanwha TNO-L4030TR accurately detects and monitors heat signatures, providing clear imagery even in total darkness, heavy fog, smoke, or other challenging visibility scenarios. Its superior thermal detection ensures continuous and reliable surveillance.
Integrated IR Illumination
Featuring built-in IR illuminators, the TNO-L4030TR enhances nighttime visibility, offering reliable and detailed monitoring in low-light environments. This makes the camera especially valuable for 24-hour surveillance operations in high-risk security areas.
Compact and Robust Design
The TNO-L4030TR boasts a compact design combined with rugged durability, offering IP66 weatherproof and IK10 vandal-resistant protection. Its compact form factor is ideal for unobtrusive surveillance deployments, ensuring robust performance in harsh outdoor conditions.
Advanced Intelligent Analytics
Equipped with intelligent surveillance analytics, including motion detection, virtual line crossing, intrusion detection, and tampering alerts, the Hanwha TNO-L4030TR enhances security responsiveness by providing instant alerts, significantly reducing response times.
Optimized Video Compression
Employing advanced H.265 video compression, the TNO-L4030TR effectively reduces storage and bandwidth requirements, enabling extended recording durations without compromising video clarity or image quality.
Easy Installation and Integration
With Power over Ethernet (PoE) support, installation is simplified by eliminating the need for separate power and data cables. The TNO-L4030TR is fully compatible with major video management systems, ensuring seamless integration into existing surveillance setups.
Key Specifications:
- Thermal imaging resolution: QVGA (320×240)
- Integrated IR illumination for enhanced night monitoring
- Detection capability in darkness, smoke, fog, adverse weather
- Compact, robust IP66 weatherproof and IK10 vandal-resistant housing
- Intelligent analytics: motion detection, intrusion detection, virtual line crossing, tampering detection
- Video compression: H.265/H.264/MJPEG
- Lens options: Fixed thermal lens (varied focal lengths available)
- Power supply: Power over Ethernet (PoE)
- Operating temperature: -40°C to +60°C (-40°F to +140°F)
- Network connectivity: Ethernet 10/100 Base-T
- ONVIF compliant, integrates easily with major VMS platforms
Specifications:
Video | |
Imaging Device | Uncooled micro bolometer |
Resolution | 640×480, 640×360, 320×240 |
Max. Framerate | H.265/H.264/MJPEG: Max. 8fps |
NETD | <50mK |
Pixel Size | 17㎛ |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
Lens | |
Focal Length (Zoom Ratio) | 13mm fixed focal |
Max. Aperture Ratio | F1.0 |
Angular Field of View | H: 48.6° / V: 36.4 / D: 61.6° |
Min. Object Distance | 5m(16.40ft) |
Focus Control | Fixed |
Operational | |
Camera Title | Displayed up to 85 characters |
Digital Image Stabilization | Support(built-in gyro sensor) |
Motion Detection | 8ea, 8point polygonal zones |
Privacy Masking | 24ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature detection, Sound classification, Shock detection |
Alarm I/O | Input 1ea / Output 2ea |
Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription |
Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset – MQTT: publication |
Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
Audio Out | Line out, Max.output level: 1Vrms |
Color Palettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
Radiometry | |
Temperature Detect Range | -20°C~130°C(-4°F~266°F) |
Temperature Accuracy | ±5°C(≤100°C), ±20%(>100°C) |
Temperature Detection | 6 Quadrangle ROI zones, whole FoV area |
Additional | Hybrid palettes, Spot temperature reading |
Network | |
Ethernet | RJ-45(10/100BASE-T) |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
Smart Codec | Manual(5ea area), WiseStreamⅡ |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, MQTT |
Security | HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) |
Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
General | |
Webpage Language | English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
Memory | 1024MB RAM, 256MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
Certification | IP66, IK10, NEMA4X |
Input Voltage | PoE(IEEE802.3af, Class3), 24VAC, 12VDC |
Power Consumption | PoE: Max. 10W, typical 8.6W 12VDC: Max. 9W, typical 7.5W 24VAC: Max. 10.5W, typical 8.9W |
Mechanical | |
Color / Material | White / Aluminum |
RAL Code | RAL9003 |
Product Dimensions / Weight | Φ101.97×401.8mm(4.01×15.82″) / 3,124g(6.89lb) |
