Description

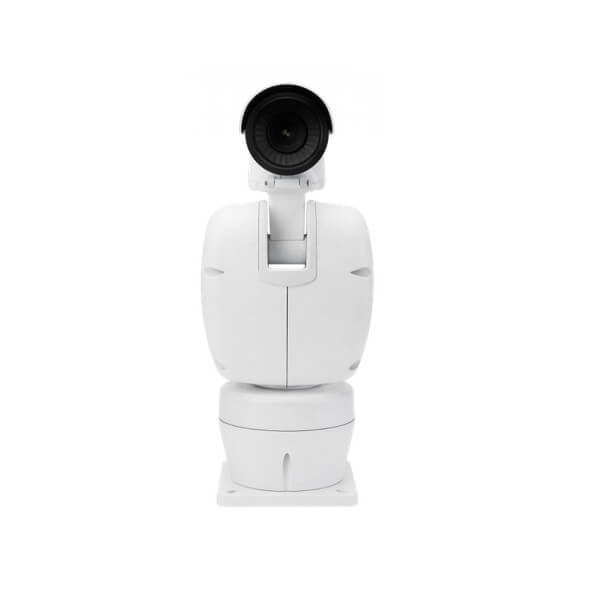

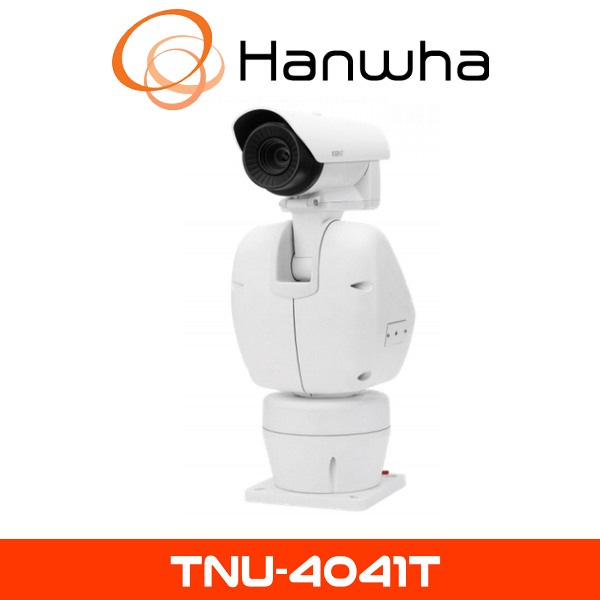

Hanwha TNU-4041T Thermal CCTV Camera
The Hanwha TNU-4041T Thermal CCTV Camera, previously known as Samsung CCTV, is engineered for precise, high-performance thermal surveillance, designed specifically for secure monitoring in challenging environments. Delivering accurate heat detection under low visibility conditions such as complete darkness, smoke, and fog, this thermal camera is essential for securing critical infrastructure, industrial locations, and perimeter defense.
Advanced Thermal Imaging Technology
The Hanwha TNU-4041T leverages cutting-edge thermal imaging sensors, enabling clear, detailed surveillance and precise detection capabilities in total darkness, dense fog, smoke, and adverse weather. Its thermal detection ensures consistent and effective monitoring where traditional CCTV may fail.
Reliable Detection Performance
Capable of consistently detecting precise heat signatures, the TNU-4041T is ideal for applications requiring dependable surveillance across medium and long-range distances, ensuring robust perimeter security, industrial safety, and critical infrastructure protection.
Rugged Weatherproof Design
Constructed with IP66 weatherproof and IK10 vandal-resistant casing, the TNU-4041T withstands extreme weather conditions, dust, impacts, and harsh outdoor environments. Its durable construction guarantees dependable operation, providing continuous surveillance in demanding conditions.
Advanced Intelligent Analytics
The Hanwha TNU-4041T incorporates sophisticated intelligent video analytics such as motion detection, intrusion detection, virtual line crossing, and tampering detection. These analytics provide immediate alerts, significantly enhancing operational responsiveness and security effectiveness.
Efficient Storage and Bandwidth Management
Utilizing H.265 video compression, the TNU-4041T significantly optimizes bandwidth and storage consumption, maintaining high-quality video clarity while extending storage durations, ideal for long-term surveillance requirements.
Easy Installation and Integration
Supporting Power over Ethernet (PoE), the Hanwha TNU-4041T simplifies installation by delivering power and network connectivity through one cable. Compatibility with leading video management systems ensures easy integration into existing surveillance infrastructures, facilitating smooth operational management.
Key Specifications:
- Thermal imaging resolution: VGA (640×480)
- High-precision thermal detection in darkness, fog, and smoke
- Lens: Fixed thermal lens (multiple focal length options)
- IP66 weatherproof and IK10 vandal-resistant construction
- Advanced analytics: Motion detection, virtual line crossing, intrusion detection, tampering detection
- Video compression: H.265/H.264/MJPEG
- Power source: Power over Ethernet (PoE)
- Operating temperature: -40°C to +60°C (-40°F to +140°F)
- Network connectivity: Ethernet 10/100 Base-T
- ONVIF compliant for seamless VMS integration
Specifications:
| Video | |
| Imaging Device | Uncooled micro bolometer |
| Resolution | 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| NETD | ＜50mK |
| Pixel Size | 17㎛ |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 19mm fixed focal |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View | H: 32° / V: 24.3° / D: 39.2° |
| Min. Object Distance | 11m(36.09ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | 0.025°~120°/sec |
| Tilt Range | -90° ~40° |
| Tilt Speed | 0.025°~40°/sec |
| Sequence | Preset(300ea), Group(6ea) |
| Preset Accuracy | ±0.3° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Supoort |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | None |
| Video Rotation | None |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature change detection, Sound classification, Shock detection |
| Serial Interface | None |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Color palettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | 24VAC |
| Power Consumption | 24VAC: Max 84W(Heater on), Max 62W(Heater off) |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | (W)219×(H)528×(D)335mm(8.62×20.79×13.19″), 11.7Kg(25.79lb) |
