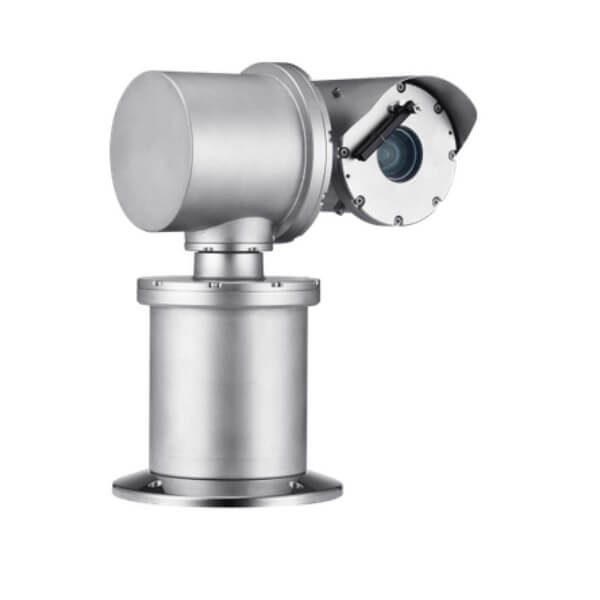

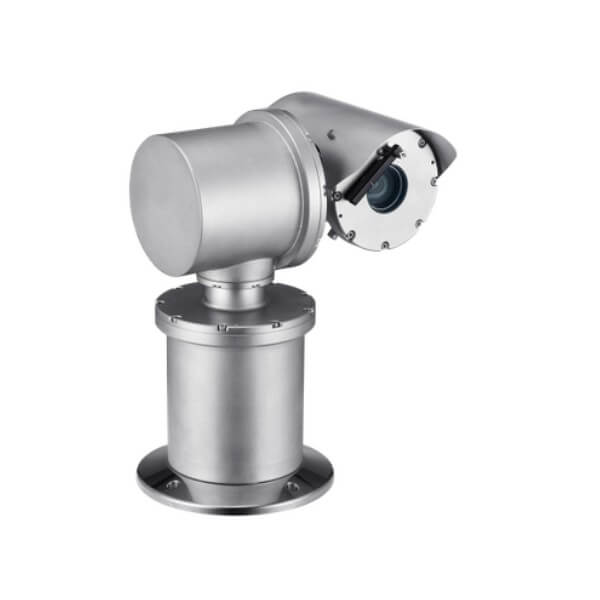

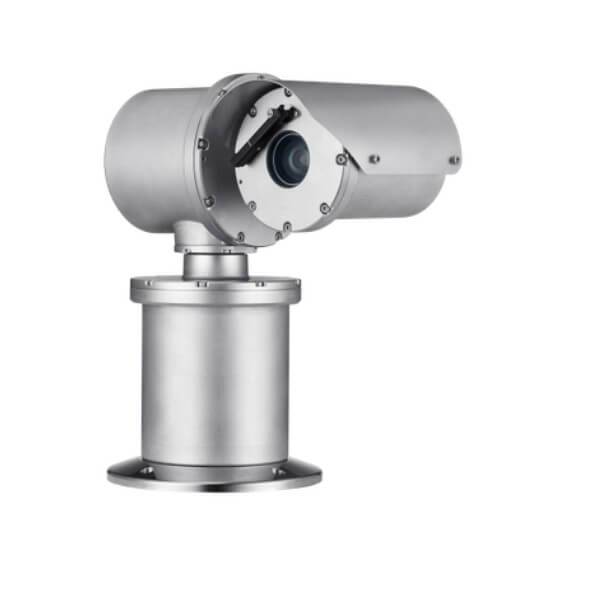

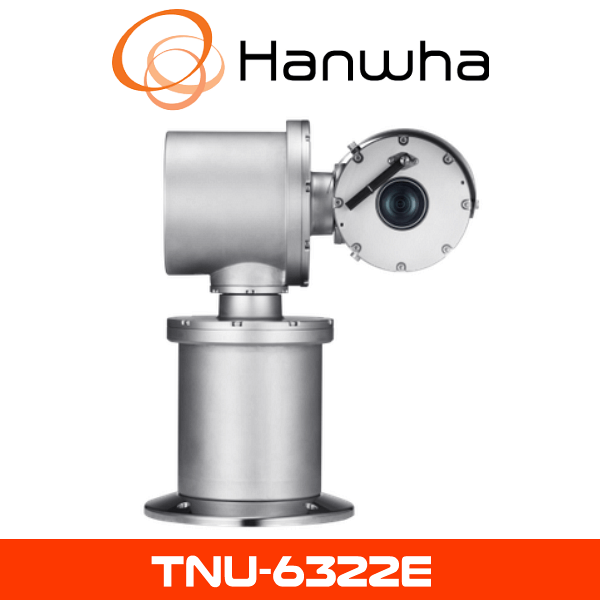

Hanwha TNU-6322E Explosion Proof CCTV Camera



Hanwha TNU-6322E Explosion Proof

The Hanwha TNU-6322E Explosion Proof CCTV Camera provides advanced outdoor surveillance, featuring 2MP high-definition video, robust explosion-proof housing, and integrated analytics. Engineered for hazardous locations like chemical plants and oil facilities, it ensures precise monitoring, clear night vision capabilities, and rugged durability.

Description

Hanwha TNU-6322E Explosion Proof CCTV Camera

The Hanwha TNU-6322E Explosion Proof CCTV Camera, previously recognized as Samsung CCTV, is designed specifically for safe and reliable surveillance in hazardous and explosive environments. Engineered with robust construction and advanced imaging technology, this camera ensures uncompromising safety and superior monitoring performance.

High-Resolution Imaging

The Hanwha TNU-6322E CCTV Camera captures detailed and sharp imagery at 2MP (1920×1080) resolution. With its motorized varifocal lens, the camera ensures versatile coverage, adjusting viewing angles dynamically from wide-area monitoring to zoomed-in details, ideal for critical area surveillance.

Explosion Proof Design

Specifically built for hazardous environments, the TNU-6322E features a certified explosion-proof casing, ensuring safe operations in areas exposed to volatile gases, combustible dust, or chemical substances. Its rugged enclosure is compliant with strict international safety standards, offering dependable surveillance in high-risk scenarios.

Reliable Night Vision

Equipped with advanced night vision capabilities, the Hanwha TNU-6322E ensures clear imaging in total darkness. Its powerful IR illuminators provide reliable monitoring of critical assets and locations around the clock, significantly enhancing security in environments with limited or no lighting.

Rugged Weatherproof and Vandal Resistance

Rated IP66 and IK10, this CCTV camera provides exceptional resistance against severe weather conditions, including extreme temperatures, rain, dust, and physical impacts. Its robust design ensures continuous operation even in challenging outdoor environments, guaranteeing uninterrupted security monitoring.

Intelligent Analytics

The TNU-6322E features advanced intelligent analytics, including motion detection, tampering detection, and virtual line crossing, providing real-time alerts and enhancing response capabilities. This proactive security approach ensures immediate awareness of potential threats, significantly improving overall safety in hazardous locations.

Efficient Video Storage

Utilizing the latest H.265 video compression technology, the Hanwha TNU-6322E significantly reduces storage requirements while maintaining high-quality video. This efficiency optimizes storage resources, allowing extended recording periods and seamless management of large surveillance data sets.

Easy Installation and Integration

Supporting Power over Ethernet (PoE), the camera simplifies the installation process, eliminating the need for additional power infrastructure. Its compatibility with major video management systems ensures easy integration into existing security setups, promoting seamless operational continuity.

Key Specifications:

  • 2MP (1920×1080) resolution
  • Explosion-proof design for hazardous environments
  • Motorized varifocal lens
  • Advanced IR night vision
  • IP66 weatherproof and IK10 vandal-resistant
  • Intelligent analytics (motion, tampering, virtual line crossing)
  • H.265/H.264 compression
  • PoE support

Specifications:

Video
Imaging Device 1/2.8″ CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
BW: 0.005Lux(F1.6, 1/30sec)
Lens
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom
Max. Aperture Ratio F1.6(Wide)~F4.4(Tele)
Angular Field of View H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele)
Min. Object Distance Wide 1.5m, Tele 2m
Focus Control Oneshot AF
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360˚ Endless
Pan Speed 0.5˚/sec ~80˚/sec
Tilt Range 180˚(-90˚ ~90˚ )
Tilt Speed 0.1˚/sec ~60˚/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.25˚
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1~1/12,000sec)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
NAS recording at event triggers
Alarm output
PTZ Preset
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Water Removal Support (with Wiper)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication
Digest login authentication
IP address filtering
User access log
802.1X authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH
Storage Temperature / Humidity -30°C~+60°C(-22°F ~ +140°F) / Less than 95% RH
Certification IECEx, ATEX, KCs, KC, CE
IP67, IK10, PESO certified
Input Voltage 24VAC
Power Consumption 24VAC: Max. 99W
Mechanical
Color / Material Metalic Silver / Stainless 316L
Product Dimensions / Weight 355(W)x427(H)x235(D)mm(13.97×16.81×9.25″), 25kg(55.12lb)
