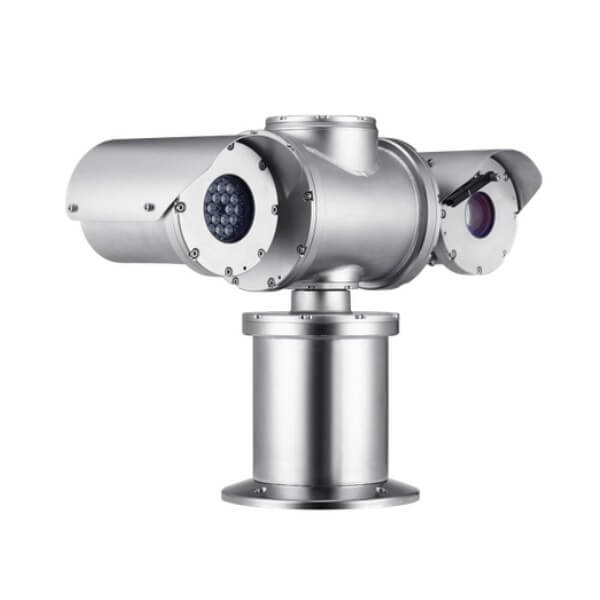

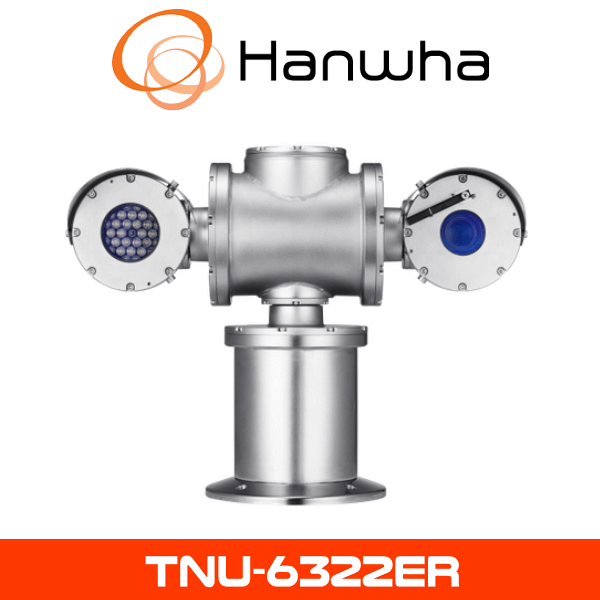

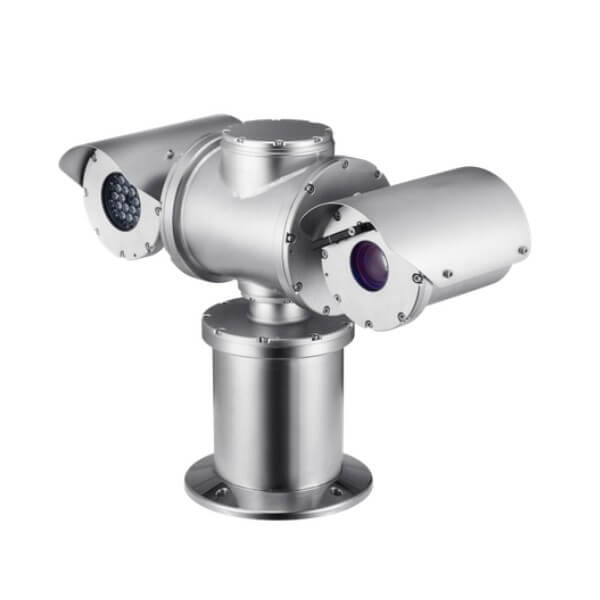

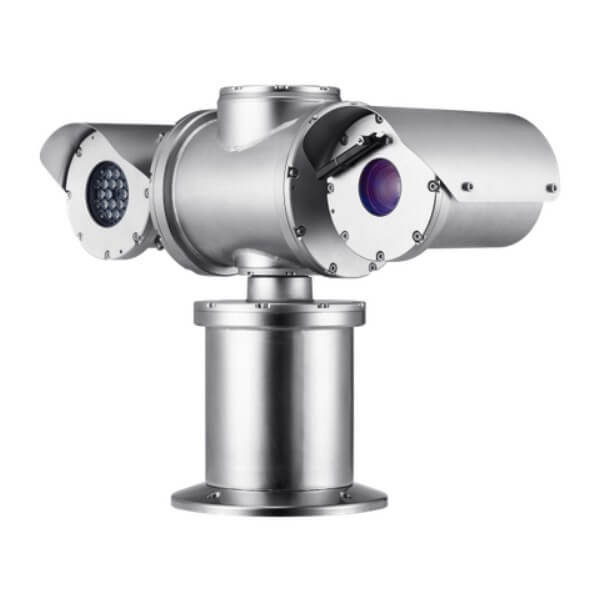

Hanwha TNU-6322ER Explosion Proof CCTV Camera



Hanwha TNU-6322ER Explosion Proof CCTV

The Hanwha TNU-6322ER Explosion Proof CCTV Camera offers industry-leading surveillance with 2MP resolution, powerful infrared illumination for reliable night vision, explosion-proof housing, and advanced analytics. Engineered specifically for demanding hazardous areas, this camera ensures precise monitoring, durability, and safety compliance.

Description

Hanwha TNU-6322ER Explosion Proof CCTV Camera

The Hanwha TNU-6322ER Explosion Proof CCTV Camera, previously known as Samsung CCTV, is expertly crafted to deliver exceptional surveillance performance in hazardous and potentially explosive environments. Combining high-definition imaging, advanced night vision, robust analytics, and certified explosion-proof design, this camera is the ultimate security solution for high-risk industrial sites and critical infrastructures.

Superior Image Quality

With a 2MP (1920×1080) high-definition sensor, the Hanwha TNU-6322ER delivers clear and detailed video footage, critical for precise monitoring and incident review. Its versatile motorized varifocal lens (4.44~142.6mm) allows flexible viewing angles, ideal for covering both broad areas and detailed close-ups in challenging environments.

Explosion Proof Certification

Specifically designed for high-risk environments, the TNU-6322ER features certified explosion-proof housing, ensuring safe and reliable operation in locations exposed to explosive gases, chemicals, and combustible dust. Its robust, protective casing meets international safety standards, providing dependable security in hazardous conditions.

Advanced Night Vision Capabilities

The Hanwha TNU-6322ER CCTV camera is equipped with built-in IR LEDs providing clear night vision coverage up to 30 meters, enabling round-the-clock surveillance. Its powerful night vision capabilities are crucial for effective security monitoring of critical industrial areas, particularly where visibility is low or non-existent.

Robust and Reliable Build

With an IP66 weatherproof and IK10 vandal-resistant rating, the TNU-6322ER guarantees continuous, reliable surveillance even under harsh environmental conditions. It withstands extreme temperatures, heavy rain, dust, and physical impact, maintaining uncompromised surveillance performance year-round.

Smart and Reliable Analytics

The TNU-6322ER incorporates advanced analytics such as motion detection, tampering detection, virtual line crossing, and audio detection, delivering real-time alerts. These intelligent features significantly improve incident response times, enhancing overall safety and security effectiveness in challenging environments.

Efficient Video Storage

Utilizing advanced H.265 compression, the Hanwha TNU-6322ER significantly optimizes storage usage by reducing video file sizes without affecting video quality. This efficiency ensures longer storage periods, ideal for extensive surveillance systems that demand continuous and comprehensive video recording.

Simplified Installation and Integration

The camera supports Power over Ethernet (PoE), simplifying installation and reducing the complexity and cost of additional power cabling. Compatibility with major video management systems ensures seamless integration with existing security infrastructure, facilitating streamlined operations.

Key Specifications:

  • 2MP (1920×1080) resolution
  • Certified explosion-proof design
  • Motorized varifocal lens (4.44~142.6mm)
  • IR illumination (night vision up to 30m)
  • IP66 weatherproof and IK10 vandal-resistant
  • H.265/H.264 compression
  • Advanced analytics (motion, tampering, line crossing)
  • PoE support

Specifications:

Video
Imaging Device 1/2.8″ CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
Lens
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom
Max. Aperture Ratio F1.6(Wide)~F4.4(Tele)
Angular Field of View H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele)
Min. Object Distance Wide 1.5m, Tele 2m
Focus Control Oneshot AF
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360˚ Endless
Pan Speed 0.5˚/sec ~80˚/sec
Tilt Range 180˚(-90˚ ~90˚ )
Tilt Speed 0.1˚/sec ~60˚/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.25˚
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1~1/12,000sec)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
NAS recording at event triggers
Alarm output
PTZ Preset
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length 200m
Water Removal Support (with Wiper)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication
Digest login authentication
IP address filtering
User access log
802.1X authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH
Storage Temperature / Humidity -30°C~+60°C(-22°F ~ +140°F) / Less than 95% RH
Certification IECEx, ATEX, KCs, KC, CE
IP67, IK10, PESO certified
Input Voltage 24VAC
Power Consumption 24VAC: Max. 99W (Camera)
24VAC: Max. 50W (IR)
Mechanical
Color / Material Metalic Silver / Stainless 316L
Product Dimensions / Weight 611(W)x438(H)x235(D)mm(24.06×17.24×9.25″), 36kg(79.37lb)
