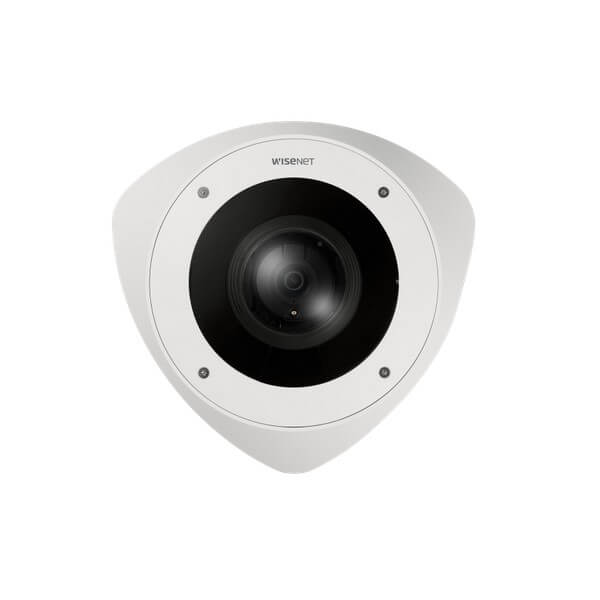

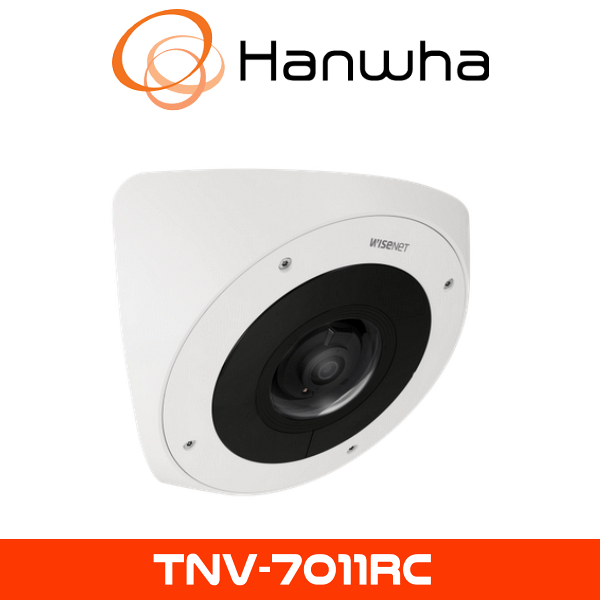

Hanwha TNV-7011RC CCTV Camera
The Hanwha TNV-7011RC CCTV Camera, previously recognized as Samsung CCTV, is a robust corner-mounted surveillance camera designed for high-security applications. With Full HD resolution, built-in infrared (IR) illumination, and anti-ligature design, this camera ensures maximum security in correctional facilities, hospitals, and confined spaces.
High-Resolution Full HD Imaging
The Hanwha TNV-7011RC features a 2MP Full HD sensor that delivers crisp and detailed video quality. This allows security personnel to monitor confined spaces effectively with a wide-angle view, minimizing blind spots.

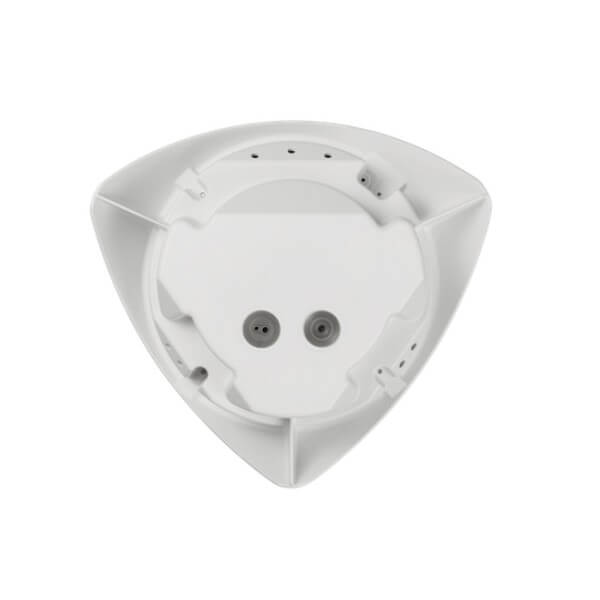

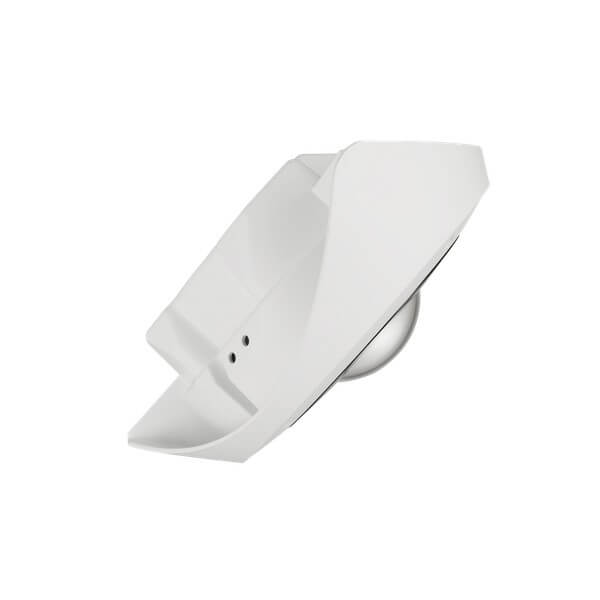

Corner-Mounted Anti-Ligature Design
Designed for high-risk environments, the TNV-7011RC features an anti-ligature, tamper-resistant, and corner-mounted design. This makes it ideal for detention centers, psychiatric facilities, and elevators where safety and security are critical.
Built-in IR Night Vision
Equipped with infrared (IR) illumination, this camera provides clear video footage even in complete darkness. The IR LEDs ensure 24/7 surveillance with enhanced visibility in low-light conditions.
Intelligent Video Analytics
The TNV-7011RC includes AI-powered analytics, including motion detection, virtual line crossing, loitering alerts, and tampering detection. These features help security teams identify and respond to potential threats in real time.
Vandal-Resistant and Weatherproof Housing
Featuring an IK10+ impact rating and an IP66 weatherproof rating, the TNV-7011RC is built to withstand physical tampering, harsh weather conditions, and demanding security environments.
Optimized Bandwidth and Storage
Using H.265 video compression, the TNV-7011RC efficiently reduces bandwidth consumption and storage requirements while maintaining high-quality video output. This ensures cost-effective long-term video retention.
Seamless Installation and Integration
Supporting Power over Ethernet (PoE), the TNV-7011RC simplifies installation with a single cable for both power and data. It is ONVIF-compliant, ensuring seamless integration with leading video management systems (VMS).
Key Specifications:
- Resolution: 2MP Full HD (1920 × 1080)
- Built-in IR night vision: Clear visibility in complete darkness
- Anti-ligature corner-mounted design for high-security environments
- Intelligent analytics: Motion detection, virtual line crossing, loitering detection, tampering alerts
- Video compression: H.265/H.264/MJPEG
- Vandal-resistant rating: IK10+ for high-impact resistance
- Weatherproof rating: IP66 for durability in harsh conditions
- Power source: Power over Ethernet (PoE) and 12V DC
- Operating temperature: -40°C to +55°C (-40°F to +131°F)
- Network connectivity: Ethernet 10/100 Base-T
- ONVIF compliance: Integrates with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264/MJPEG: Max. 30fps at all resolutions |
| Min. Illumination | Color: 0.3 lux (F2.0, 1/30sec) B/W: 0 lux (F2.0, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 102° / V: 75° / D: 129° |
| Min. Object Distance | 0.4m(1.31ft) |
| Focus Control | Manual |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | – / 30°~60° / – |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR V |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, Appear/Disappear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification, Shock detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Motion detection |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output DPTZ preset |
| Audio In | Selectable(mic in/line in/built-in MIC) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 10m(32.8ft) |
| IR Wavelength | 940nm |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 8/16/32/48KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10℃~+55℃(+14℉~+131℉) / Less than 90% RH |
| Storage Temperature / Humidity | -50℃~+60℃(-58℉~+140℉) / Less than 90% RH |
| Certification | IP66, IP6K9K, IK10+ |
| Input Voltage | PoE(IEEE802.3af, Class2), 12VDC |
| Power Consumption | PoE: Max 12W, typical 10.1W, 12VDC: Max. 11W, typical 8.6W |
| Mechanical | |
| Color / Material | White / Aluminium |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø295.5×113.5mm(11.6×4.47″) / 2.1kg (4.63lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 33.2m(108.82ft) |
| Observe (63PPM/ 19PPF) | 13.3m(43.53ft) |
| Recognize (125PPM/ 38PPF) | 6.6m(21.76ft) |
| Identify (250PPM/ 76PPF) | 3.3m(10.88ft) |
