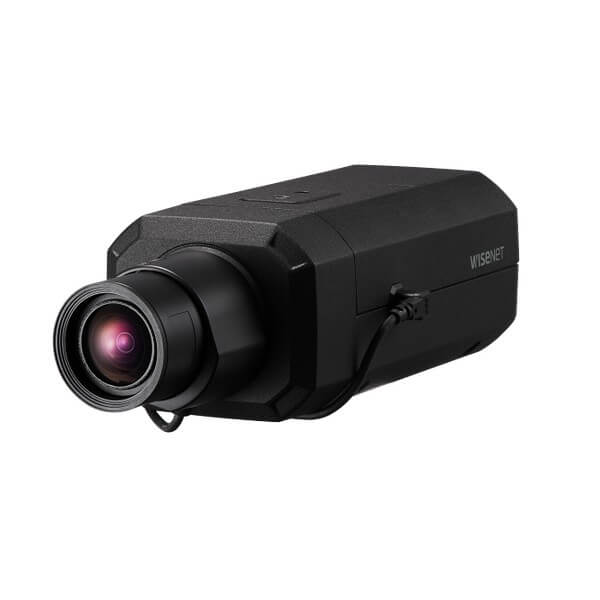

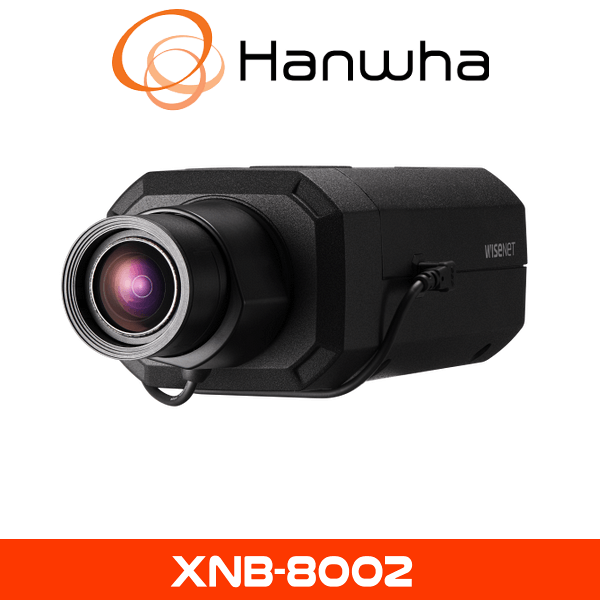

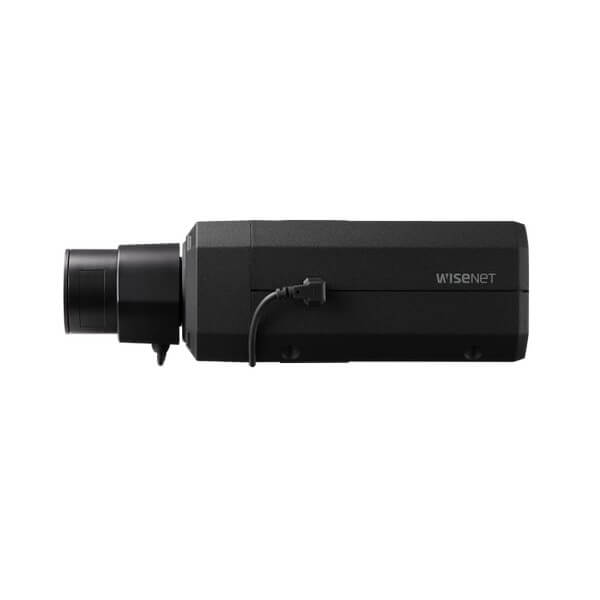

Hanwha XNB-8002 AI CCTV Camera
The Hanwha XNB-8002 AI CCTV Camera, previously recognized as Samsung CCTV, is a 5MP ultra-HD box camera designed for enterprise-level surveillance applications. Featuring AI-powered analytics, low-light enhancement, and H.265 video compression, this camera ensures crystal-clear imaging and intelligent security monitoring.
5MP Ultra-HD High-Resolution Imaging
The XNB-8002 features a 5MP image sensor, providing sharp and clear video clarity for detailed security monitoring. This high-resolution capability allows operators to zoom in on specific areas without losing quality, making it ideal for forensic investigations and high-risk security zones.
AI-Powered Deep Learning Analytics
The AI-driven analytics enable security teams to distinguish between humans, vehicles, and objects, reducing false alarms and improving overall monitoring efficiency. Key security features include motion detection, virtual line crossing, loitering alerts, and intrusion detection.
Low-Light Enhancement for Superior Night Vision
With advanced low-light technology, the XNB-8002 delivers superior image quality in dim environments, ensuring continuous and reliable surveillance even in challenging lighting conditions.
Optimized Bandwidth and Storage Efficiency
Using H.265 video compression, the XNB-8002 minimizes bandwidth usage and storage requirements while maintaining high-quality video output, ensuring cost-effective, long-term video retention.
Easy Integration and Seamless Installation
With Power over Ethernet (PoE) support, installation is simplified by requiring only a single cable for power and data transmission. ONVIF compliance ensures seamless integration with major video management systems (VMS) for flexible deployment.
Key Specifications:
- Resolution: 5MP Ultra HD (2592 × 1944)
- AI-powered analytics: Human/vehicle classification, motion detection, loitering alerts, virtual line crossing, intrusion detection
- Low-Light Enhancement: Superior night-time and dim-light performance
- Video Compression: H.265/H.264/MJPEG
- Lens Compatibility: C/CS-mount (lens sold separately)
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -10°C to +50°C (14°F to 122°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 3328×1872, 3072×1728, 2592×1944, 2688×1520, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@6MP Max. 5fps) |
| Min. Illumination | Color: 0.05Lux(F1.2, 1/30sec, 30IRE) BW: 0.005Lux(F1.2, 1/30sec, 30IRE) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris, Manual, I-CS |
| Mount Type | C mount, CS mount |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones – Color: Gray/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Off / Max gain / Manual |
| White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) Prefer shutter control |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Analytics events – Defocus detection, Directional detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Fog detection, Virtual line, Audio detection, Sound classification, Shock detection, Face/upper body detection |
| Business Intelligence | People counting, Queue management, Heatmap |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP/SFTP – File upload(video clip): FTP/SFTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in/Built-in mic) |
| Audio Out | Line out |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attacks |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | HTPM(Hanwha trusted platform module), SDcard partition encrypt |
| Security Certificate | CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C~+55°C(+14°F~+131°F) / 0~95% RH(non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Input Voltage | PoE(IEEE802.3af, class3), 12VDC, 24VAC |
| Power Consumption | PoE: Max 12.95W, typical 8.2W 12VDC: Max 11.5W, typical 7.5W 24VAC: Max 13.5W, typical 8.9W Power redundancy failover |
| Mechanical | |
| Color / Material | Black / Aluminum |
| Product Dimensions / Weight | 81(W)x67(H)x165(D)mm(3.19×2.64×6.48″), 880g(1.94 lb) |
| Housing (Box) | SHB-4301HP, SHB-4200/4200H |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1 IEC/EN 62471 |
