DESCRIPTION TO Hanwha XNB-8003 AI CCTV Camera

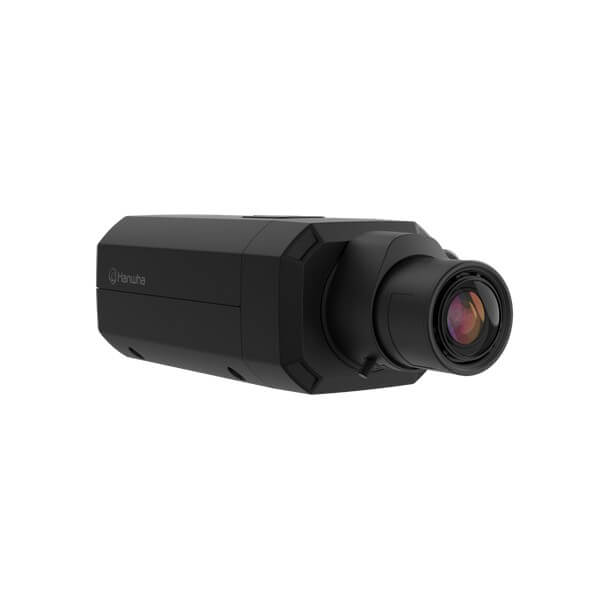

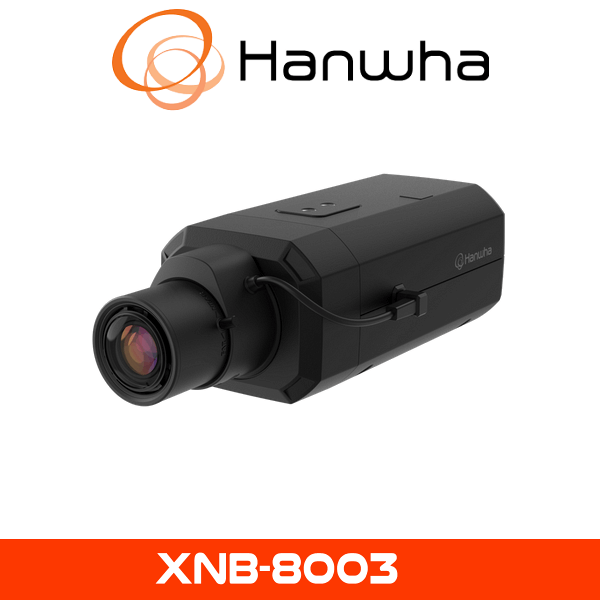

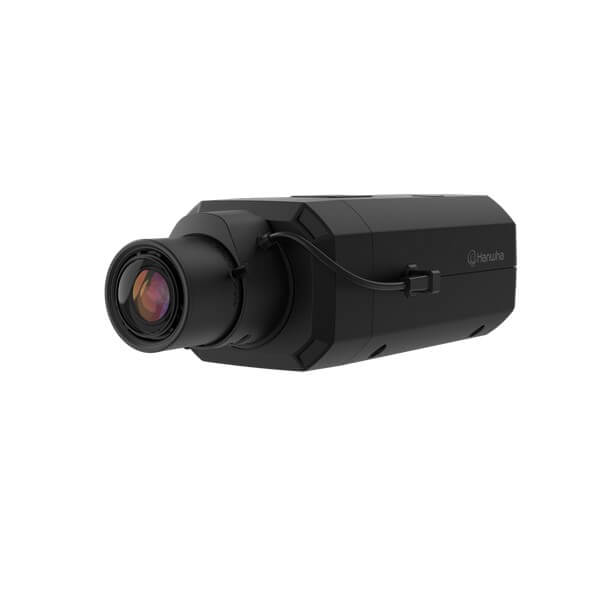

The Hanwha XNB-8003 AI CCTV Camera, previously recognized as Samsung CCTV, is a high-performance 5MP box camera built for professional surveillance in high-security environments. It features deep learning AI-powered analytics, ultra-HD imaging, and enhanced low-light capabilities, ensuring clear video quality and intelligent monitoring.
High-Resolution 5MP Imaging
With a 5MP image sensor, the XNB-8003 delivers exceptional clarity for forensic investigations and real-time monitoring, capturing fine details with high-definition precision.
AI-Powered Deep Learning Analytics
Equipped with advanced AI technology, this camera can differentiate between humans, vehicles, and objects, minimizing false alarms and improving security efficiency. AI-based features include motion detection, virtual line crossing, intrusion alerts, and loitering detection.
Enhanced Low-Light Performance
Featuring True Day/Night functionality and Digital Wide Dynamic Range (DWDR), the XNB-8003 provides clear imaging in challenging lighting conditions, making it ideal for 24/7 surveillance.
Optimized Bandwidth and Storage Management
The XNB-8003 incorporates H.265 compression technology, significantly reducing bandwidth consumption while maintaining high-quality video output, allowing for longer recording durations.
Flexible Lens Compatibility
Supporting C/CS mount lenses, this camera offers customizable field-of-view options, providing adaptability for various surveillance applications.
Easy Installation and Seamless Integration
With Power over Ethernet (PoE) support, the camera enables simplified installation with a single power and data cable. Additionally, ONVIF compliance ensures compatibility with leading video management systems (VMS).
Key Specifications:
- Resolution: 5MP Ultra HD (2592 × 1944)
- AI-powered analytics: Human/vehicle classification, motion detection, virtual line crossing, intrusion detection, loitering alerts
- Low-Light Performance: True Day/Night (ICR) and Digital Wide Dynamic Range (DWDR)
- Video Compression: H.265/H.264/MJPEG
- Lens Compatibility: C/CS mount (lens sold separately)
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -10°C to +50°C (14°F to +122°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/1.8″ progressive CMOS |
| Resolution | 3328×1872, 3072×1728, 2592×1944, 2688×1520, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720,
1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03Lux(F1.2, 1/30sec, 30IRE) BW: 0.003Lux(F1.2, 1/30sec, 30IRE) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P-iris, Manual, I-CS |
| Mount Type | C mount, CS mount |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR (120dB) |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, Quadrangle zones – Color : Gray, Green, Red, Blue, Black, White – Mosaic |
| Gain Control | Support |
| White Balance | ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support (Fill/stretch mode) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | – Analytics events based on AI engine : Object detection (Person/Face/Vehicle(car/bus/truck/motorcycle/bicycle)/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, Appear/Disappear, intrusion) – Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection |
| Business Intelligence | Based on AI engine : People counting, Queue management, Heatmap |

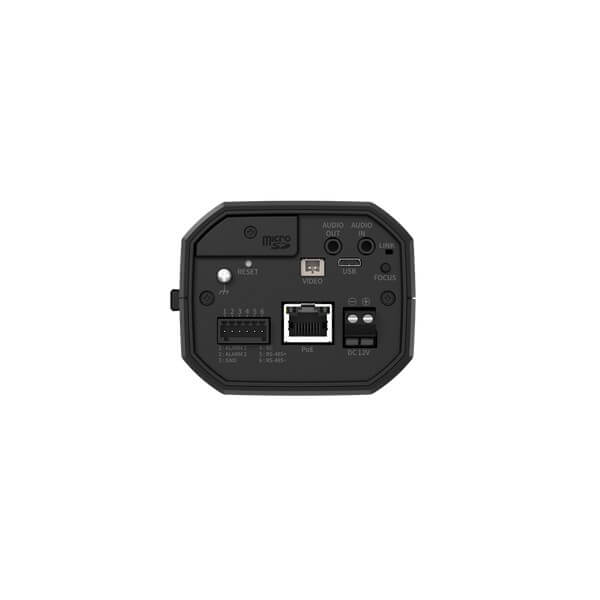

| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) – Audio clip playback |
| Audio In | Selectable(mic in/line in/Built-in MIC) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security | TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10 °C ~ 55°C(-14°F ~ +131°F) less than 95%RH(non-condensing) |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 9.8W 12VDC: Max 19W, typical 9.5W |
| Mechanical | |
| Color / Material | Black / Aluminum |
| Product Dimensions / Weight | 81(W)x67(H)x165(D)mm(3.19×2.64×6.48″), 880g(1.94 lb) |
