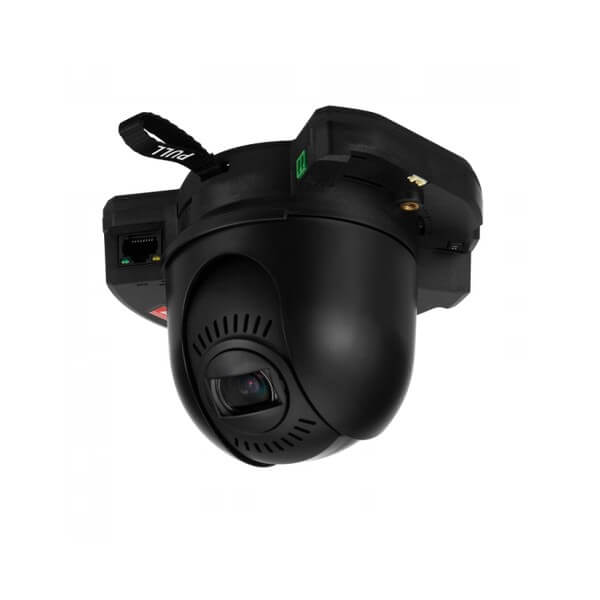

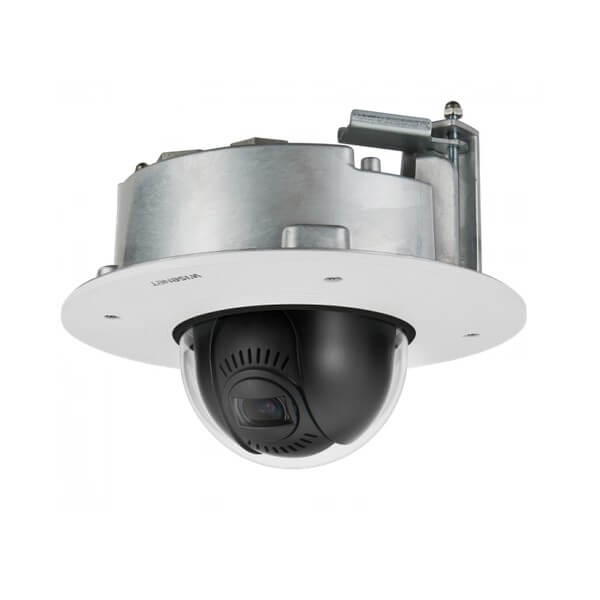

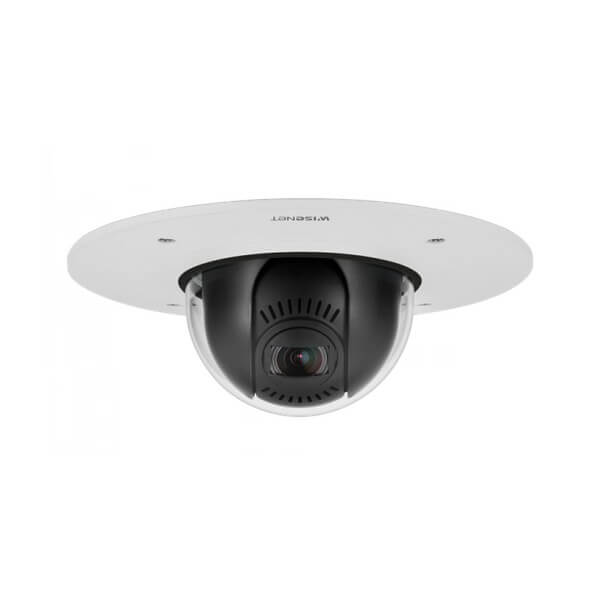

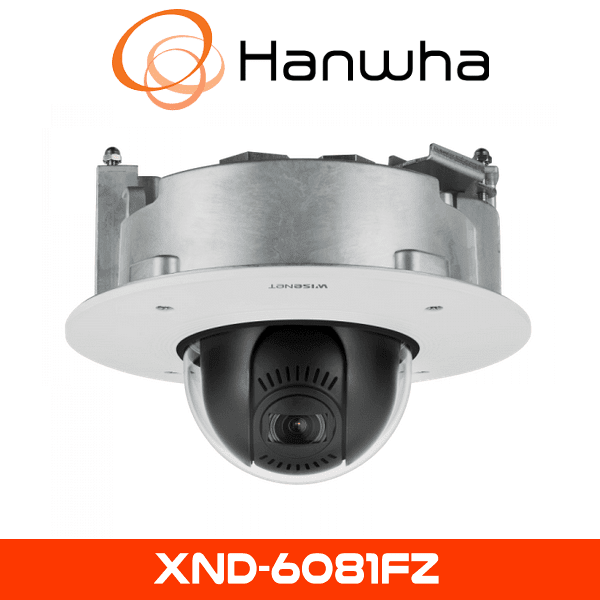

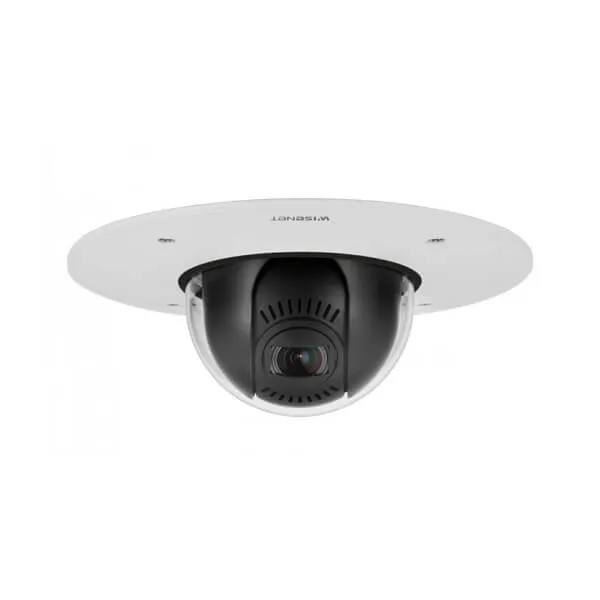

Hanwha XND-6081FZ CCTV Camera



Hanwha XND-6081FZ CCTV Camera

The Hanwha XND-6081FZ CCTV Camera, previously known as Samsung CCTV, is an advanced indoor surveillance solution featuring Full HD resolution, motorized varifocal lens, and intelligent analytics. Designed for performance and efficiency, it fits perfectly in Dubai’s modern office buildings, retail stores, and hospitality venues.

Description

DESCRIPTION TO Hanwha XND-6081FZ CCTV Camera

The Hanwha XND-6081FZ CCTV Camera is part of Hanwha Techwin’s powerful X series, built to offer high-definition video quality, advanced analytics, and flexible deployment for indoor environments. Previously marketed as Samsung CCTV, Hanwha has continued its legacy of excellence with innovative features that cater to high-end commercial and public sector installations across Dubai, Abu Dhabi, and throughout the UAE.

High-Performance Full HD Imaging

This CCTV camera comes equipped with a 2MP progressive scan CMOS sensor that delivers sharp and vibrant 1920 x 1080 resolution. The clarity ensures accurate identification of individuals, objects, and behaviors in key indoor areas—making it perfect for customer service counters, employee workspaces, and security checkpoints.

Its enhanced image processing guarantees crisp video output even in dynamic lighting conditions, allowing seamless 24/7 monitoring.

Motorized Varifocal Lens with Remote Focus

The XND-6081FZ features a 3.2–10mm motorized varifocal lens, allowing remote adjustments to field of view and focus. This capability significantly simplifies setup and fine-tuning, especially in complex indoor layouts. Whether monitoring an open-plan office or a hotel reception, installers and operators can easily optimize the viewing angle without physical intervention.

This feature is especially useful in Dubai’s luxury venues where precise camera positioning matters for both coverage and aesthetics.

Wide Dynamic Range (WDR) and Low-Light Performance

Equipped with 150dB True WDR, the XND-6081FZ adapts seamlessly to changing lighting environments, delivering consistent image quality in areas with bright windows or fluctuating illumination. Combined with exceptional low-light sensitivity, it ensures clear, noise-free video during nighttime operations or in dimly lit rooms.

From indoor shopping malls with glass entrances to low-lit museum galleries, this camera maintains visual clarity across all conditions.

Intelligent Video Analytics for Smart Monitoring

Integrated video analytics help security teams move from passive monitoring to proactive surveillance. The XND-6081FZ supports:

  • Motion Detection
  • Virtual Line Crossing
  • Intrusion Detection
  • Face Detection
  • Audio Detection
  • Tampering Alarms

These features are particularly effective in environments like banks or schools where early detection of unusual activity is crucial.

Compression Technology for Efficient Storage

Utilizing H.265 and WiseStream II, the XND-6081FZ significantly reduces bandwidth usage and storage requirements—by up to 75% compared to traditional codecs. This makes it an ideal solution for multi-camera indoor deployments where storage optimization is key without compromising quality.

Seamless Integration and Scalability

ONVIF-compliant and fully compatible with major Video Management Systems (VMS), the camera integrates easily into existing infrastructure. Whether you’re expanding an old system or building a new one, the Hanwha XND-6081FZ adapts effortlessly to your environment and supports future upgrades.

Key Features
• Maximum 2MP resolution
• 0.015Lux@F1.4 (Color), 0.0015Lux@F1.4 (B/W)
• Day & Night (ICR), WDR (150dB / 120dB)
• Modular structure and motorized PTRZ
• Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• DIS and shock detection with built-in gyro sensor
• IP52/Plenum rate (UL2820), PoE, 12VDC

Specification

Video
Imaging Device 1/2.8″ 2MP CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.015Lux(F1.4, 1/30sec)
BW: 0.0015Lux (F1.4, 1/30sec)
Video Out USB: Micro USB type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal
Max. Aperture Ratio F1.4(Wide) ~ F3.6(Tele)
Angular Field of View H: 119.5°(Wide)~27.9°(Tele)
V: 62.8°(Wide)~15.7°(Tele)
D: 142.1°(Wide)~32.0°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus, Manual
Lens Type DC auto iris, P iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range Remote adjustment (Max. 200cycles)
±175˚ / 0~85˚ / ±175˚
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones
– Color : Gray, Green, Red, Blue, Black, White
– Mosaic
Gain Control Support
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business Intelligence People counting, Queue management, Heatmap
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When alarm trigger occurred
– File upload(image) : e-mail/FTP
– Notification : e-mail
– Recording : SD/SDHC/SDXC or NAS recording at event triggers
– Alarm output
– Handover
– Audio clip playback
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -25°C ~ +60°C (-13°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP52, plenum-rated, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 10W, typical 4.80W
12VDC: Max 8.5W, typical 3.71W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø205x163mm(Ø8.1×6.4″) / 1.85kg(4.08lb)
