Hanwha XND-6081VZ CCTV Camera



Hanwha XND-6081VZ CCTV Camera

The Hanwha XND-6081VZ CCTV Camera, previously recognized as Samsung CCTV, delivers Full HD video with a motorized varifocal lens and advanced WDR performance. Ideal for indoor surveillance applications in Dubai, Abu Dhabi, and across the UAE, it combines flexibility, reliability, and powerful analytics in a compact dome form.

Description

DESCRIPTION TO Hanwha XND-6081VZ CCTV Camera

The Hanwha XND-6081VZ CCTV Camera is a high-performance indoor surveillance solution, part of the advanced Hanwha X series. Previously known under the Samsung CCTV brand, it has become a trusted choice for professionals seeking detailed video clarity, flexible monitoring angles, and dependable performance in controlled indoor environments like retail, hospitality, banks, and offices throughout Dubai and the UAE.

Full HD Video Clarity

Hanwha XND-6081VZ Equipped with a 2-megapixel progressive scan CMOS sensor, the Hanwha XND-6081VZ delivers 1920 x 1080 Full HD resolution. It captures sharp and vivid visuals critical for accurate monitoring, identification, and security verification in sensitive indoor settings.

Motorized Varifocal Lens

The Hanwha XND-6081VZ integrated 2.8–12mm motorized varifocal lens enables remote control over zoom and focus. This flexibility allows fine-tuning of field-of-view post-installation, making it an excellent fit for dynamic security environments that require scalable coverage.

True WDR and Low-Light Support

The Hanwha XND-6081VZ excels in varying lighting conditions thanks to its 150dB WDR (Wide Dynamic Range) and superior low-light sensitivity. Whether it’s a brightly lit reception or a dim hallway, this camera maintains balanced exposure and clarity, essential for round-the-clock indoor monitoring in Dubai’s diverse architecture.

Intelligent Video Analytics

Hanwha XND-6081VZ Built-in analytics such as motion detection, tampering alarms, line crossing, and audio detection elevate your security strategy by automating alerts and reducing operator workload. This smart functionality supports efficient monitoring, ideal for busy facilities or corporate spaces.

Compact and Discreet Design

Its low-profile dome design allows for unobtrusive installation, making it perfect for public-facing indoor environments like hotels, boutiques, and customer service areas. Despite its compact form, it packs robust features and ensures long-term reliability.

Bandwidth and Storage Optimization

Supporting H.265, H.264, and WiseStream II compression, the Hanwha XND-6081VZ reduces bandwidth usage and lowers video storage requirements significantly. This makes it suitable for systems needing multiple cameras without incurring high infrastructure costs.

Compatibility and Integration

ONVIF compliance ensures smooth integration with third-party VMS platforms and NVRs. Whether deploying in new setups or adding to existing networks, the Hanwha XND-6081VZ adapts easily and performs consistently within any enterprise system.

Key Features
• Maximum 2MP resolution
• 0.015Lux@F1.4 (Color), 0.0015Lux@F1.4 (B/W)
• Day & Night (ICR), WDR (150dB / 120dB)

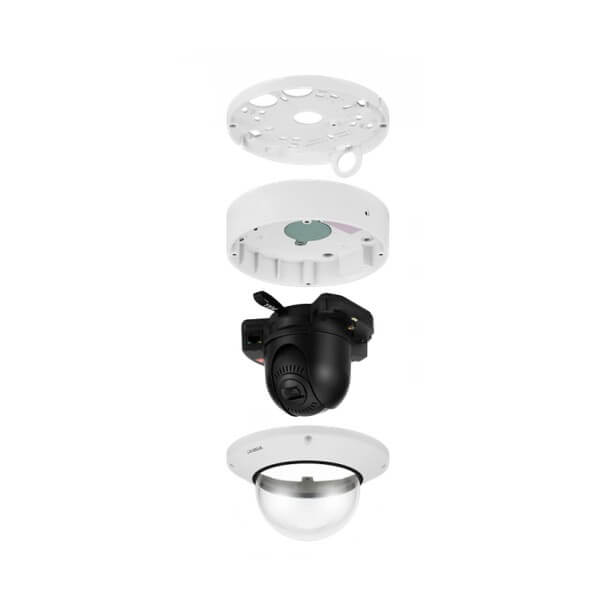

• Modular structure and motorized PTRZ
• Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• DIS and shock detection with built-in gyro sensor
• IP52/IK10, PoE, 12VDC

Specification

Video
Imaging Device 1/1.8″ 6MP CMOS
Effective Pixels 2616(H)x1976(V)
Min. Illumination Color: 0.07Lux(F1.2, 1/30sec) BW: 0.007Lux (F1.2, 1/30sec)
Video Out USB: Micro USB type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 3.9~9.4mm(2.4x) motorized varifocal
Max. Aperture Ratio F1.2(Wide) ~ F2.4(Tele)
Angular Field of View H: 92.1°(Wide)~38.7°(Tele) / V: 67.2°(Wide)~29.0°(Tele) / D: 119.9°(Wide)~48.6°(Tle)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type DC auto iris, P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range Remote adjustment (Max. 200cycles) ±175˚ / 0~85˚ / ±175˚
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones – Color: Grey, Green, Red, Blue, Black, White – Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business Intelligence People counting, Queue management, Heatmap
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback
Audio In Selectable(mic in/line in/built-in mic), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Resolution 2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer 11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only)
Memory 1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity -25°C~+60°C (-13°F~+140°F) / Less than 90% RH
Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 90% RH
Certification IP52/IK10
Electrical
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 11W, typical 5.4W 12VDC: Max 9W, typical 3.75W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product dimensions / weight

Ø160x125mm(Ø6.30×4.9″) / 1450kg(3.2 lb)
