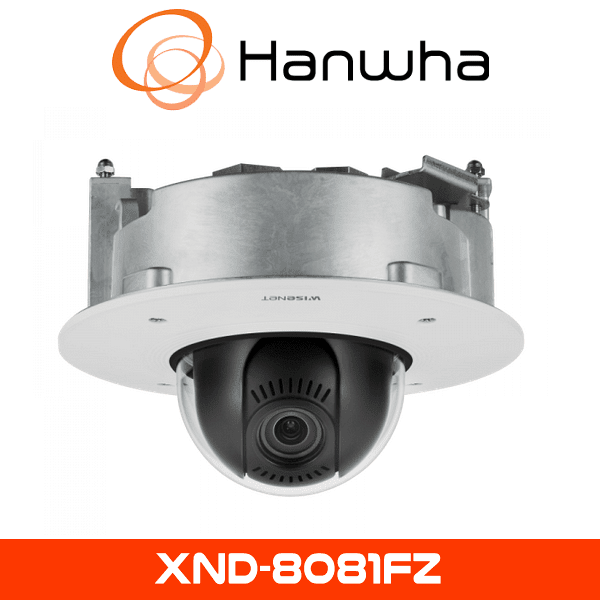

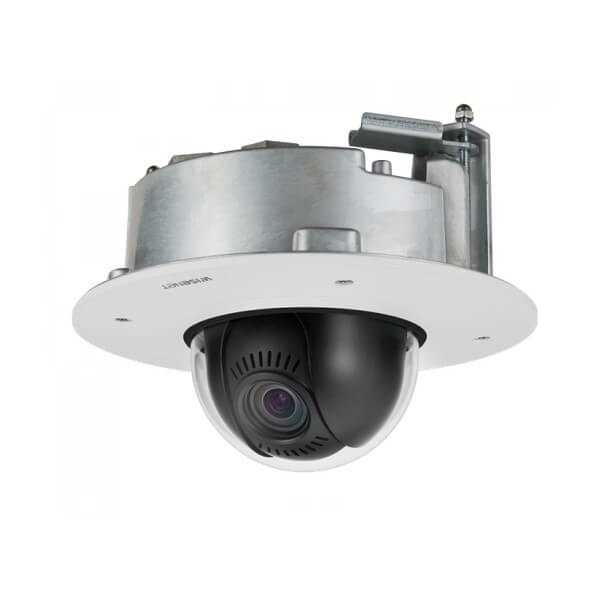

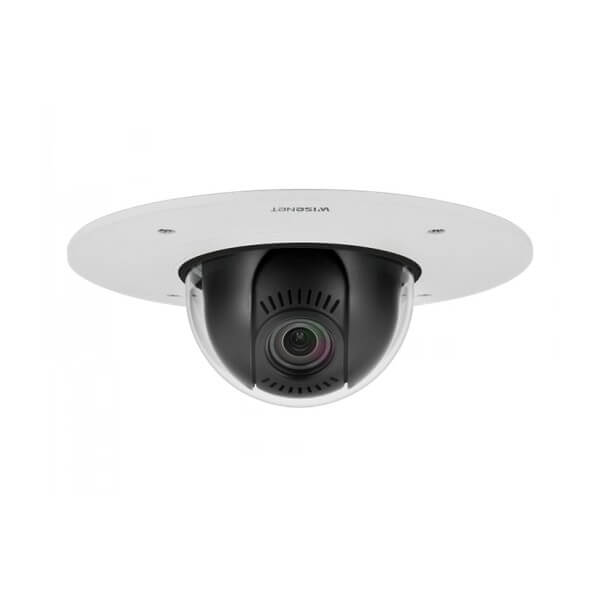

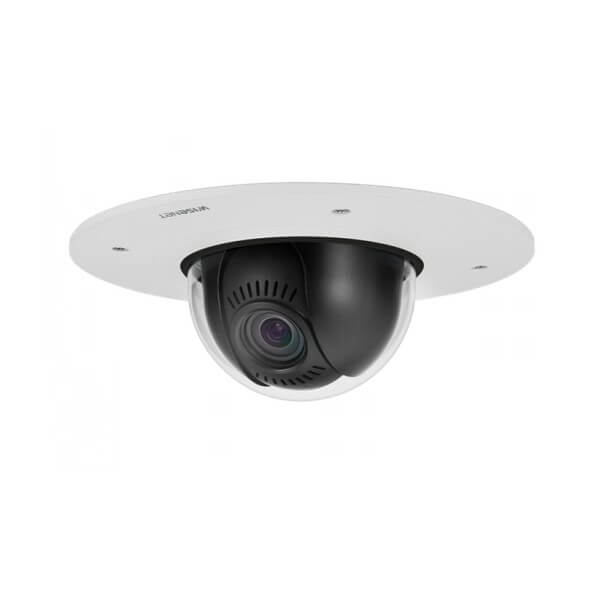

DESCRIPTION TO Hanwha XND-8081FZ CCTV Camera
The Hanwha XND-8081FZ CCTV Camera, formerly branded under Samsung CCTV, is a premium indoor dome camera offering exceptional clarity and versatility. Designed for precision surveillance in high-security areas such as banks, airports, hotels, educational institutions, and retail environments across Dubai and the UAE, this camera delivers top-tier performance with intelligent adaptability.
5MP High-Definition Video Clarity
Capture fine details with the camera’s 5-megapixel sensor delivering 2560 x 1920 resolution. The superior image quality ensures crisp, clear visuals whether you’re monitoring general activity or zooming into critical scenes.
Motorized Varifocal Lens for Flexible Viewing
Equipped with a 3.6–9.4mm motorized varifocal lens, the Hanwha XND-8081FZ provides flexible field-of-view adjustments remotely. This simplifies setup and allows operators to adapt the viewing angle based on real-time requirements without physical lens adjustment.
Enhanced Low-Light Performance
The camera includes integrated IR support up to 30 meters and superior low-light imaging. Paired with its advanced WDR (Wide Dynamic Range) technology, it delivers consistent video quality in challenging lighting scenarios, such as entryways or lobby areas where light contrast varies.
Intelligent Video Analytics
Boost your surveillance efficiency with intelligent analytics like motion detection, line crossing, face detection, and tampering alarms. These proactive features enable early detection of suspicious activity and immediate alerts, reducing response time and improving overall security.
Robust Build and Tamper Resistance
Though designed for indoor use, the XND-8081FZ incorporates anti-tampering features and a strong build. It’s ideal for installations requiring discreet yet resilient equipment—particularly in sensitive sectors like finance and hospitality across Dubai and Abu Dhabi.
Compression Efficiency and Storage Optimization
Utilizing WiseStream II along with H.265/H.264 compression, the Hanwha XND-8081FZ reduces bandwidth and storage demands significantly. This makes it ideal for multi-camera installations where cost-effective video management is essential without compromising on image quality.
Easy Integration with Security Systems
This model is ONVIF compliant and integrates seamlessly with existing VMS platforms, NVRs, and third-party devices. This ensures streamlined operations for installers and end-users, making it a popular choice for large-scale projects in UAE.
• 0.07Lux@F1.4 (Color), 0.007Lux@F1.4 (B/W)
• Day & Night (ICR), WDR (150dB / 120dB)
• Modular structure and motorized PTRZ
• Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• DIS and shock detection with built-in gyro sensor
• IP52/Plenum rate (UL2820), PoE, 12VDC
Specification
| Video | |
| Imaging Device | 1/1.8″ 6MP CMOS |
| Resolution | 2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.07Lux(F1.2, 1/30sec) BW: 0.007Lux (F1.2, 1/30sec) |
| Video Out | USB: Micro USB type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6~9.4mm(2.6x) motorized varifocal |
| Max. Aperture Ratio | F1.2(Wide) ~ F2.4(Tele) |
| Angular Field of View | H: 102.5°(Wide)~38.7°(Tele) V: 74.2°(Wide)~29.0°(Tele) D: 135.5°(Wide)~48.6°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | DC auto iris, P iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Remote adjustment (Max. 200cycles) ±175˚ / 0~85˚ / ±175˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones – Color : Gray, Green, Red, Blue, Black, White – Mosaic |
| Gain Control | Support |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover – Audio clip playback |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -25°C ~ +60°C (-13°F ~ +140°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP52, plenum-rated, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 11W, typical 5.40W 12VDC: Max 9W, typical 3.75W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø205x163mm(Ø8.1×6.4″) / 1.85kg(4.08lb) |
