DESCRIPTION TO Hanwha XND-8081RF Flush-Mount Dome Camera

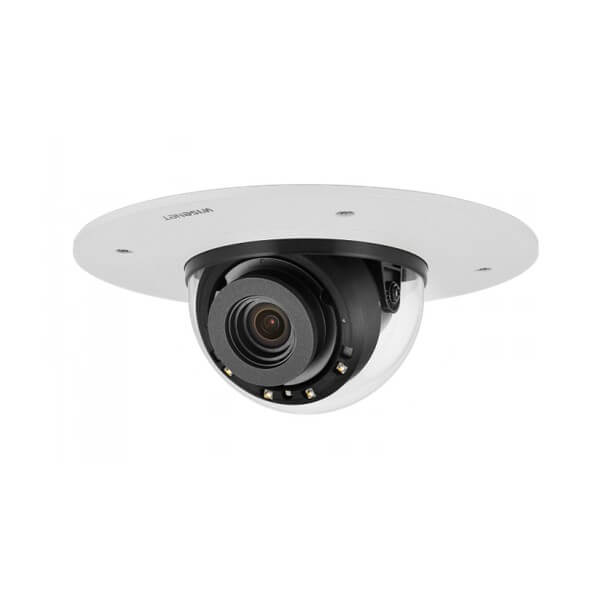

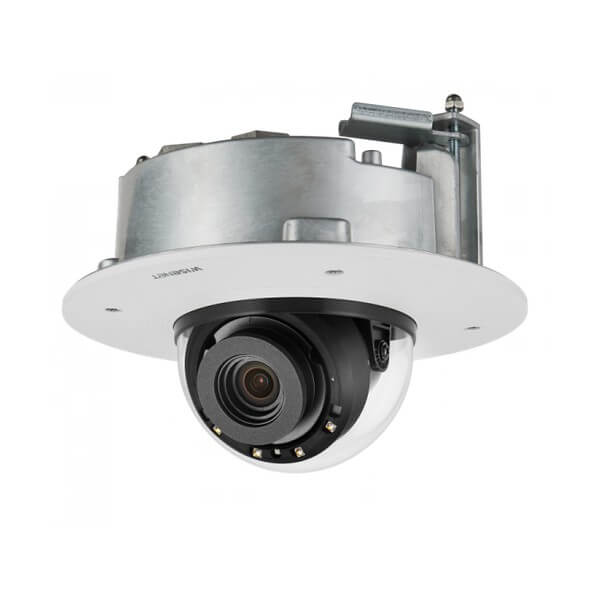

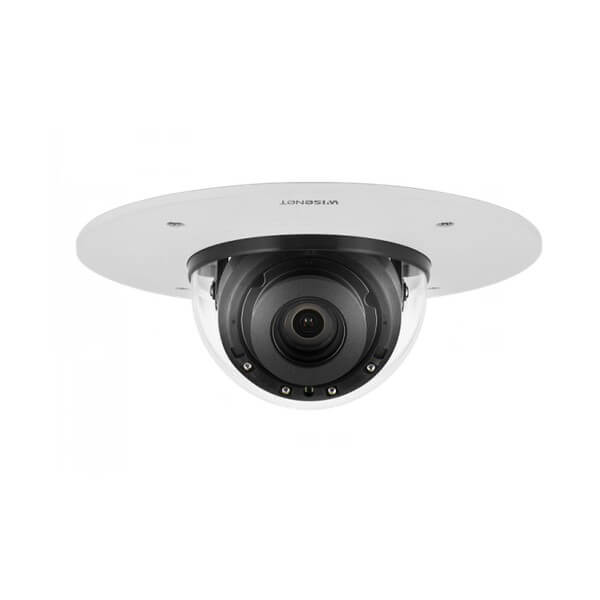

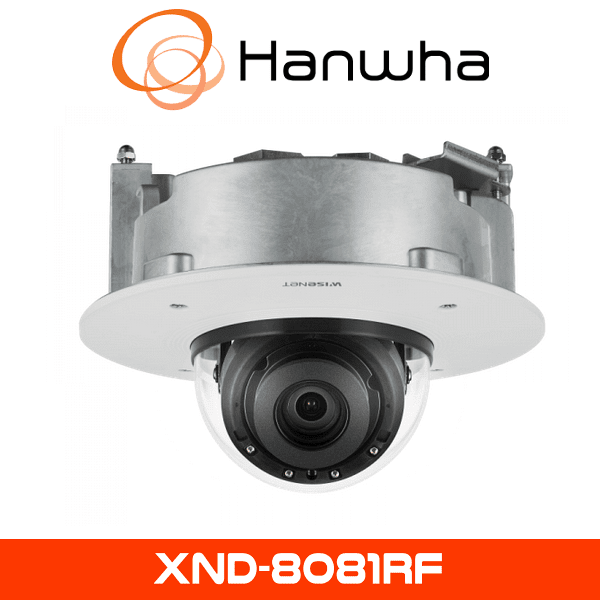

The Hanwha XND-8081RF CCTV, previously known as Samsung CCTV, is a trusted name in surveillance, delivering innovative solutions for modern security challenges. The Hanwha XND-8081RF CCTV Camera, part of the Wisenet X series, is a 5MP flush-mount dome camera engineered for discreet indoor surveillance.

5MP Clarity with Remote Focus

The camera’s 5MP CMOS sensor delivers high-resolution footage at 2560×1920, capturing fine details in retail or office environments. Its 30fps ensures smooth video for dynamic scenes. The 3.6~9.4mm motorized varifocal lens offers a 2.6x zoom, with remote focus for easy adjustments, eliminating the need for manual tuning during installation and ensuring precise coverage.

WiseIR for Night Vision

Equipped with WiseIR technology, the Hanwha XND-8081RF CCTV Camera provides illumination up to 30 meters, ensuring clear black-and-white images in complete darkness. This is ideal for indoor settings with low lighting, such as stores or offices after hours, enhancing 24/7 security.

120dB WDR for Balanced Imaging

The 120dB WDR balances high-contrast scenes, ensuring details are visible in bright or shadowed areas, crucial for environments with mixed lighting like lobbies or retail entrances.

WiseStream II for Bandwidth Efficiency

WiseStream II compression reduces bandwidth and storage needs by up to 80%, prioritizing key frame areas. This ensures cost-effective operations for large-scale CCTV networks, with support from Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE.

Discreet and Durable Design

Rated IP52 for dust resistance and IK08 for impact protection, the Hanwha XND-8081RF CCTV Camera is built for high-traffic indoor areas. Its flush-mount design minimizes visibility, blending seamlessly into ceilings for discreet surveillance, ideal for professional or aesthetic-conscious settings.

Digital Image Stabilization

The built-in gyro sensor enables DIS, minimizing blur from vibrations in busy environments, ensuring steady footage for reliable monitoring.

Comprehensive Audio Capabilities

The camera supports two-way audio with one input/output, enabling real-time communication. Audio detection and sound classification identify noises like screams or crashes, while audio playback responds to events, enhancing situational awareness.

Flexible Storage and Connectivity

Dual microSD slots offer up to 512GB of storage for data redundancy. PoE simplifies installation, while ONVIF compatibility ensures integration with third-party systems. A USB port aids setup, supported by distributors.

Key Specifications of the Hanwha XND-8081RF CCTV Camera

• Imaging Device: 1/1.8″ 5MP CMOS sensor
• Resolution: 5MP (2560×1920) at up to 30fps
• Lens: 3.6~9.4mm (2.6x) motorized varifocal lens
• Field of View: Horizontal: 102.5° (wide) to 38.7° (tele); Vertical: 74.2° to 29.0°
• Minimum Illumination: Color: 0.07 Lux (F1.4, 1/30sec); B/W: 0 Lux (IR LED on)
• IR Distance: WiseIR up to 30m (98.4ft)
• Wide Dynamic Range: 120dB WDR
• Compression: H.265, H.264, MJPEG with WiseStream II support
• Storage: Dual microSD/SDHC/SDXC up to 512GB
• Analytics: Video analytics (loitering, directional detection, fog detection, tampering, motion detection, virtual line/area, enter/exit, shock detection), audio detection, sound classification
• Environmental Ratings: IP52, IK08
• Power: PoE (IEEE802.3af), 12V DC; Max 11.5W (PoE), 10.0W (12V DC)
• Connectivity: RJ-45 (10/100BASE-T), USB port for setup
• Audio: 1 input/1 output, two-way audio support, audio playback
• Dimensions: Ø160.0 x 85.0mm (flush-mounted)
• Weight: 0.9kg
• Operating Temperature: -10°C to +55°C
