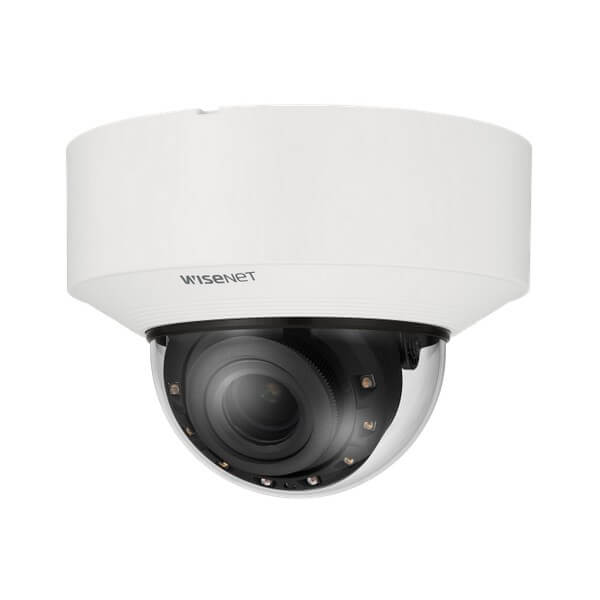

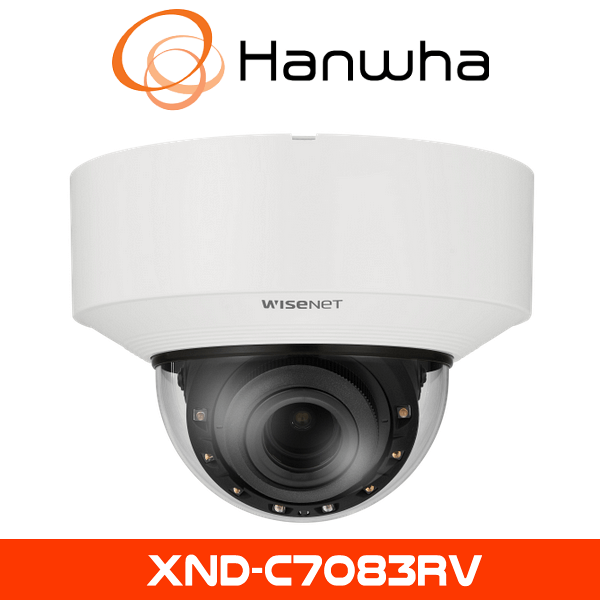

DESCRIPTION TO Hanwha XND-C7083RV CCTV Camera
The Hanwha XND-C7083RV incorporates innovative analytics, including intrusion detection, face detection, and motion detection, boosting the efficiency and responsiveness of security measures. The camera supports Power over Ethernet (PoE), enabling simple, cost-effective installation with fewer cables and a cleaner setup.
Superior 4MP Resolution:
The Hanwha XND-C7083RV CCTV Camera offers outstanding image quality through its advanced 4MP sensor. Every image and video captured provides clear details essential for accurate security monitoring and evidence collection.
Exceptional Night-time
The camera effectively captures clear images up to 30 meters in total darkness. Its adaptive IR technology adjusts automatically to environmental lighting, enhancing clarity and reducing image distortion.
Robust and Vandal-Resistant
The XND-C7083RV withstands physical attacks, ensuring uninterrupted operation even under challenging conditions. This rugged design provides peace of mind in vulnerable indoor locations.
H2: Advanced Analytics for Intelligent Monitoring Hanwha CCTV cameras offer powerful built-in analytics such as intrusion detection, face detection, loitering alerts, and motion detection. These intelligent features help security personnel identify potential threats promptly and respond efficiently.
Key Features
• 4MP resolution
• 2.8~10mm (3.6x) motorized varifocal
• Color: 0.038 Lux (F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
• Maximum 60 fps (H.265/H.264)
• WiseIR: IR viewable length 40 m (131.23 ft)
• Day & Night (ICR), extremeWDR (120 dB)
• Hard-coated dome bubble
• WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
• DIS with built-in Gyro sensor
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle – car, truck, bus, bicycle, motorcycle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• IP52, IK08
• 2.8~10mm (3.6x) motorized varifocal
• Color: 0.038 Lux (F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
• Maximum 60 fps (H.265/H.264)
• WiseIR: IR viewable length 40 m (131.23 ft)
• Day & Night (ICR), extremeWDR (120 dB)
• Hard-coated dome bubble
• WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
• DIS with built-in Gyro sensor
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle – car, truck, bus, bicycle, motorcycle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• IP52, IK08
SPECIFICATION :
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 2592×1520, 2560×1440, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)(WDR off) Max. 30fps/25fps(60Hz/50Hz)(WDR on) MJPEG: Max. 30fps(@4MP Max. 5fps) |
| Min. Illumination | Color: 0.038Lux(F1.4, 1/30sec, 30IRE) BW: 0.0038Lux(F1.4, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fpsColor: 0.076Lux(F1.4, 1/60sec, 30IRE) BW: 0.0076Lux(F1.4, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps |
| Video Out | USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8~10mm(3.6x) motorized varifocal |
| Max. Aperture Ratio | F1.4(Wide)~F3.0(Tele) |
| Angular Field of View | H: 110°(Wide)~30°(Tele) V: 61°(Wide)~17°(Tele) D: 132°(Wide)~35°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | DC auto iris with hall sensor(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~75° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones – Color: Gray/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Off / Max Gain / Manual |
| White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine – Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Analytics events – Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) |
| Business Intelligence | Based on AI engine: People/Vehicle counting, Queue management, Heatmap |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP/SFTP – File upload(video clip): FTP/SFTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| IR Viewable Length | WiseIR 40m(131.23ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attacks |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | HTPM(Hanwha trusted platform module), SDcard partition encrypt |
| Security Certificate | CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot Max. 512GB |
| Memory | 2GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10 °C~+50 °C(14°F~+122°F) / 0~100% RH(condensing) Humidity control with AIR vent |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Certification | IP52, IK08 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 10.8W 12VDC: Max 12.5W, typical 10.0W |
| Mechanical | |
| Color / Material | White / Aluminum + PC Bubble: Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø160x118mm(ø6.30×4.65″), 1350g(2.98 lb) |

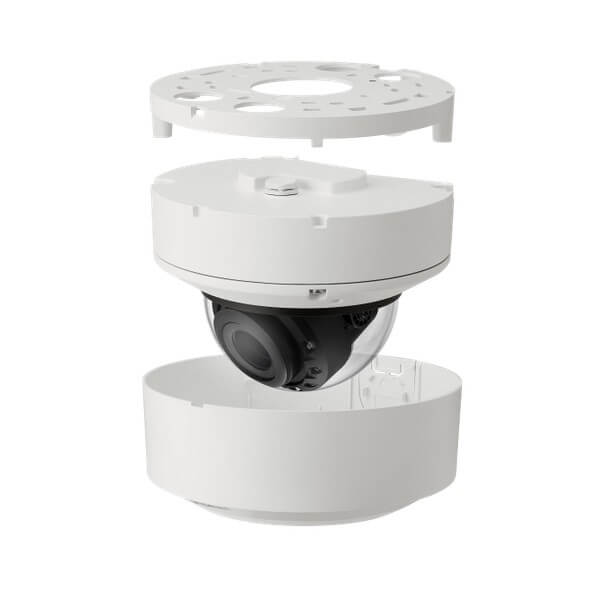

| Compatible Conduit hole / Gangbox | 12.7mm(1/2″)(M20) single, double, 4″ octagon, 4″ square |
| Hanging Mount (Dome) | SBP-160HMW1 |
| Backbox | SBV-180BW/WW |
| Ceiling Mount (Assy) | SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS |
| Wall Mount | SBP-300WMW/WMW1, SBP-390WMW2, SBP-160WMW1 |
| Pole Mount | SBD-180PMW, SBP-300PMW2 |
| In-ceiling Mount | SHD-1600FPW/FW |
| Parapet Mount | SBP-300LMW, SBP-156LMW1 |
| Corner Mount | SBP-300KMW1 |
| Cabinet | SBP-300NBW |
| Other Compatible Models | SPB-IND88W |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP52, IEC/EN 62262 IK08 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 36.3m(119.09ft) / Tele: 193.5m(634.74ft) |
| Observe (63PPM/ 19PPF) | Wide: 14.5m(47.64ft) / Tele: 77.4m(253.90ft) |
| Recognize (125PPM/ 38PPF) | Wide: 7.3m(23.82ft) / Tele: 38.7m(126.95ft) |
| Identify (250PPM/ 76PPF) | Wide: 3.6m(11.91ft) / Tele: 19.3m(63.47ft) |
