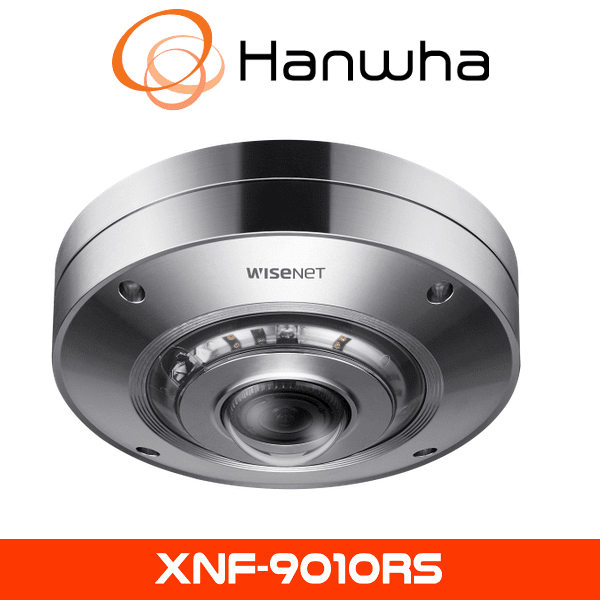

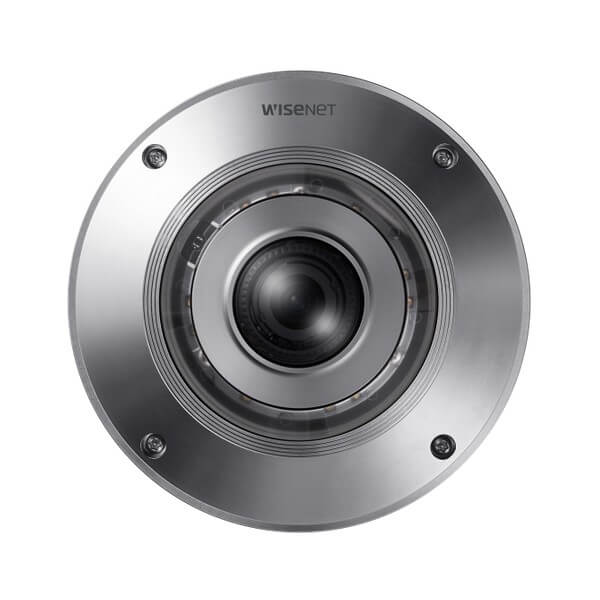

DESCRIPTION TO Hanwha XNF-9010RS CCTV Camera
The Hanwha XNF-9010RS CCTV Camera, previously recognized as Samsung CCTV, represents the pinnacle of panoramic surveillance, providing complete coverage through its high-definition 12MP resolution. Designed for businesses, retail stores, hotels, educational institutions, and public spaces across Dubai, Abu Dhabi, and throughout the UAE, this camera seamlessly combines cutting-edge technology with robust construction.
High-Resolution Panoramic Surveillance
Experience unmatched video quality with the Hanwha XNF-9010RS CCTV Camera’s ultra-high 12-megapixel sensor, delivering crystal-clear images with a resolution of up to 3008×3008 pixels. This remarkable detail ensures you never miss critical events or valuable evidence, making it the top choice for high-security areas.
360° Coverage with Built-in IR
The XNF-9010RS offers exceptional 360° panoramic views, effectively eliminating blind spots common in traditional CCTV cameras. Integrated with powerful IR illumination, this Hanwha CCTV camera provides comprehensive surveillance up to 15 meters, even in complete darkness, ideal for ensuring continuous safety in diverse lighting conditions.
Advanced Video Analytics
This camera includes sophisticated video analytics features such as loitering detection, directional detection, defocus detection, and motion detection. These advanced capabilities allow users to quickly identify suspicious activities, enhancing security response efficiency and reducing false alarms, crucial for security operations in busy metropolitan environments like Dubai and Abu Dhabi.
Robust and Vandal-Resistant Design
Built to withstand physical tampering, the Hanwha XNF-9010RS features an IK10-rated vandal-resistant housing, ensuring reliable operation even under severe conditions. Its IP66 rating further guarantees protection against dust, moisture, and extreme weather conditions, making it perfectly suited for challenging outdoor environments commonly experienced in the UAE.
Seamless Integration and Connectivity
The Hanwha XNF-9010RS CCTV Camera supports multiple network protocols and integrates effortlessly with leading Video Management Software (VMS). This compatibility facilitates easy implementation into existing or new security infrastructures, making system expansion and maintenance straightforward for users and integrators alike.
Efficient Video Compression and Storage
To optimize bandwidth and storage utilization, the XNF-9010RS employs advanced video compression technologies, including H.265 and H.264. This capability dramatically reduces storage requirements and network load, making it ideal for continuous, long-term monitoring typical in commercial and residential deployments across Dubai and Abu Dhabi.
User-Friendly Installation and Maintenance
Designed with ease of installation in mind, this Hanwha CCTV camera offers user-friendly installation tools and features like remote configuration and adjustments. This significantly reduces setup and maintenance times, ensuring precise and optimal surveillance performance with minimal downtime.
• 1.08mm fixed focal lens
• Stereo graphic type lens – enhanced resolution for the peripheral regions
• H.265, H.264, MJPEG codec supported
• Fisheye, Single panorama, Double panorama, Quad view
• On board dewarping, Digital PTZ
• extreme WDR (120dB), WiseStreamⅡ support
• Wise IR – IR viewable length 8m (26.25ft)
• Virtual channel support
• Plugin support, selectable I/O port
• Video Analytics, Heatmap, People counting
• Queue management
• Stainless Steel
• Motion detection, Handover
• IP66, IP67, IP6K9K, NEMA4X, IK10, IK10+ (it can resist impacts of 40 joules), NSF/ANSI Standard 169 – Special Purpose Food Equipment and Devices
Specification
| Video | |
| Imaging Device | 1/2.3″ CMOS |
| Resolution | Original view(1:1): 3008×3008~480×480 Double panorama(2:1): 3584×1792~640×320 Single panorama(4:1): 3584×896~640×160 Quad view: 3584×2688~640×480 Q1/Q2/Q3/Q4(4:3): 1792×1344~640×480 |
| Max. Framerate | H.265/H.264: Original view-Max. 30fps/25fps@3008×3008(60Hz/50Hz), Double panorama-Max. 30fps/25fps@3584×1792(60Hz/50Hz) Single panorama-Max. 30fps/25fps@3584×896(60Hz/50Hz) MJPEG: Max. 30fps(@9MP Max. 5fps) |
| Min. Illumination | Color: 0.39Lux(F2.2, 1/30sec, 30IRE) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for Installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.08mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 187° / V: 187° / D: 187° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones – Color: Gray/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Off / Max Gain / Manual |
| White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) prefer shutter control |
| Video Rotation | Flip, Mirror |
| Analytics | Analytics events – Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP/SFTP – File upload(video clip): FTP/SFTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in/built-in mic) |
| Audio Out | Line out |
| IR Viewable Length | WiseIR 8m(26.25ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attacks |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | HTPM(Hanwha trusted platform module), SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+50°C(-40°F~+122°F) / 0~95% RH(non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Certification | IP66/IP67, IP6K9K, NEMA4X, IK10+ NSF/ANSI Standard 169 – Special Purpose Food Equipment and Devices. |
| Input Voltage | PoE(IEEE802.3af, class3), 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 11W 12VDC: Max 11W, typical 9.1W |
| Mechanical | |
| Color / Material | Silver / Stainless(SUS316L) Bubble: Nylon dome |
| Product Dimensions / Weight | ø167.9×72.1mm(ø6.61×2.84″), 2980g(6.57 lb) |
| Compatible Conduit hole / Gangbox | single, double, 4″ octagon, 4″ square |
| Hanging Mount (Dome) | SBP-300HMS6 |
| Wall Mount | SBP-300WMS/WMS1 |
| Pole Mount | SBP-300PMS |
| Corner Mount | SBP-300KMS |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471 |
| Environment | EN IEC 63000 IEC 60529 IP66/IP67, ISO 20653 IP6K9K, IEC 62262 IK10+ NEMA 250 type 4X NSF/ANSI Standard 169 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 34.9m(114.49ft) |
| Observe (63PPM/ 19PPF) | 13.9m(45.60ft) |
| Recognize (125PPM/ 38PPF) | 7.0m(22.96ft) |
| Identify (250PPM/ 76PPF) | 3.5m(11.48ft) |
