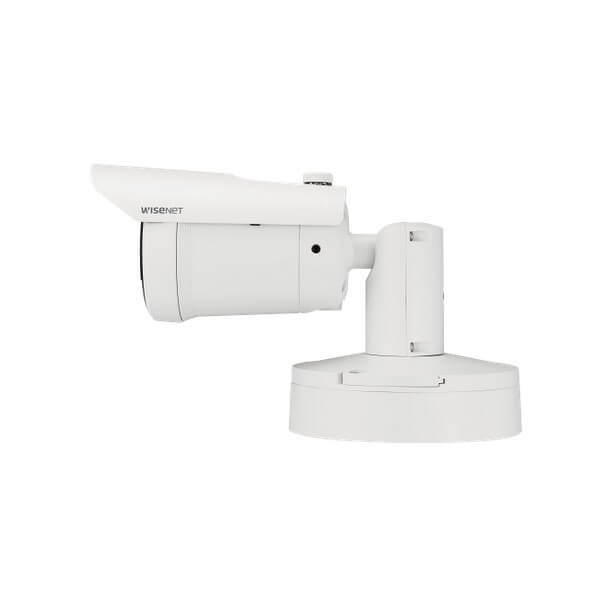

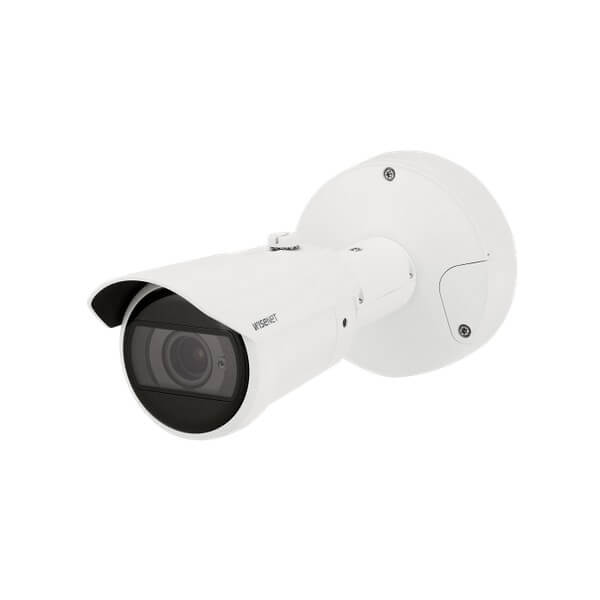

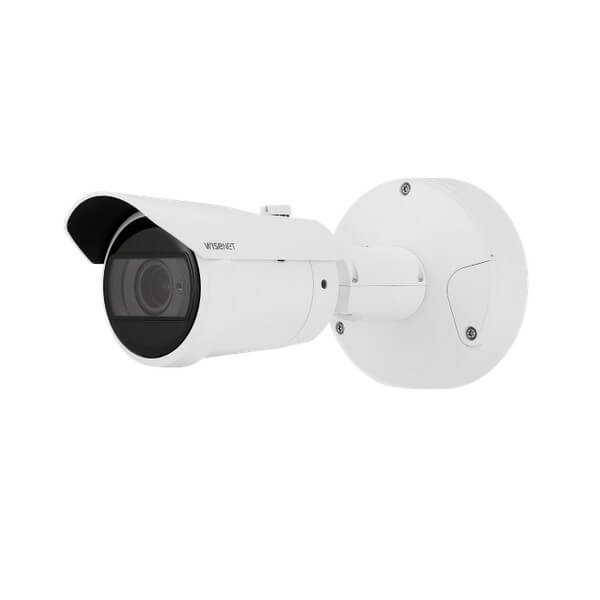

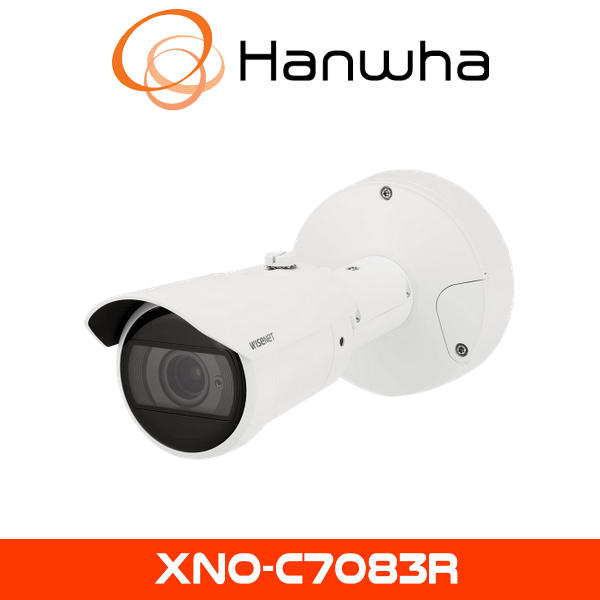

DESCRIPTION TO Hanwha XNO-C7083R Bullet Camera

The Hanwha XNO-C7083R CCTV Camera previously known as Samsung CCTV, has long been a trusted name in video surveillance, delivering innovative solutions tailored to diverse security needs. The Hanwha XNO-C7083R CCTV Camera is a standout in their Wisenet X series, combining 4MP resolution with AI-driven analytics to redefine outdoor surveillance in the MEA region

AI-Powered Analytics for Smarter Surveillance

This AI capability reduces false alarms caused by irrelevant motion, such as swaying trees or animals, ensuring operators focus on genuine threats. The Hanwha XNO-C7083R sends metadata to backend servers, enabling efficient post-event searches and real-time alerts, making it a powerful tool for proactive security.

Superior Image Quality with 4MP Resolution

The Hanwha XNO-C7083R CCTV Camera captures sharp, detailed footage. Its 60fps capability ensures smooth video, even during fast-moving events like vehicle pursuits or crowded scenes. The motorized varifocal lens (2.8~10mm) offers a 3.6x optical zoom, allowing users to adjust the field of view remotely for optimal coverage, from wide-angle monitoring to zoomed-in details.

WiseIR for Exceptional Night Vision

The Hanwha XNO-C7083R Low-light performance is critical for CCTV systems, and the Hanwha XNO-C7083R excels with WiseIR technology. Its IR LEDs provide illumination up to 40 meters, delivering clear black-and-white images in complete darkness (0 Lux). This makes the camera ideal for nighttime surveillance in parking lots, perimeters, or unlit public spaces.

ExtremeWDR for Challenging Lighting

The Hanwha XNO-C7083R extremeWDR (120dB) ensures balanced images in scenes with high contrast, such as entrances with bright sunlight and shadowed interiors. By combining multiple exposures, it minimizes overexposure and underexposure, revealing details in both bright and dark areas—perfect for retail stores or urban environments with variable lighting.

Robust Design for Harsh Environments

The Hanwha XNO-C7083R Designed for the MEA region’s extreme conditions, the Hanwha XNO-C7083R CCTV Camera is built to last. Its IP66 and IP67 ratings ensure protection against dust and water, while NEMA4X adds corrosion resistance. The IK10 vandal-proof rating safeguards against impacts, making it suitable for high-risk areas like public transport hubs or industrial sites. Operating in temperatures from -40°C to +55°C, it performs reliably in scorching deserts or cold nights.

Flexible Storage and Connectivity

The Hanwha XNO-C7083R supports dual microSD slots for up to 512GB of onboard storage, ensuring data redundancy in case of network failures. Its PoE support simplifies installation by delivering power and data through a single cable, while ONVIF compliance (Profiles G, S, T) ensures seamless integration with third-party systems. Two-way audio and configurable I/O ports allow integration with external devices like alarms or speakers.

Key Specifications

The Hanwha XNO-C7083R CCTV Camera is packed with advanced technology to meet the demands of professional surveillance. Below is a detailed breakdown of its core specifications:

• Imaging Device: 1/2.8″ progressive CMOS sensor
• Resolution: 4MP (2592×1520) at up to 60fps
• Lens: 2.8~10mm (3.6x) motorized varifocal lens
• Field of View: Horizontal: 109.7° (wide) to 30.4° (tele); Vertical: 57.3° to 17.1°
• Minimum Illumination: Color: 0.038 Lux (F1.4, 1/30sec, 30IRE); B/W: 0 Lux (IR LED on)
• IR Distance: WiseIR up to 40m (131.23ft)
• Wide Dynamic Range: extremeWDR (120dB)
• Compression: H.265, H.264, MJPEG with WiseStreamⅢ support
• Storage: microSD/SDHC/SDXC up to 512GB (2 slots)
• Analytics: AI-based object detection (person, face, vehicle, license plate), IVA (virtual line/area, enter/exit, loitering, direction, intrusion), motion detection, tampering, fog detection, audio detection, sound classification, shock detection
• Environmental Ratings: IP66, IP67, NEMA4X, IK10, UL CAP certified
• Power: PoE (IEEE802.3af), 12V DC; Max 12.3W (PoE), 10.2W (12V DC)
• Connectivity: RJ-45 (10/100BASE-T), metal shielded
• Audio: 1 input/1 output, two-way audio support
• Dimensions: Ø78.0 x 273.0mm (Ø3.07″ x 10.75″)
• Weight: 1.25kg (2.76lb)
• Operating Temperature: -40°C to +55°C (-40°F to +131°F)
